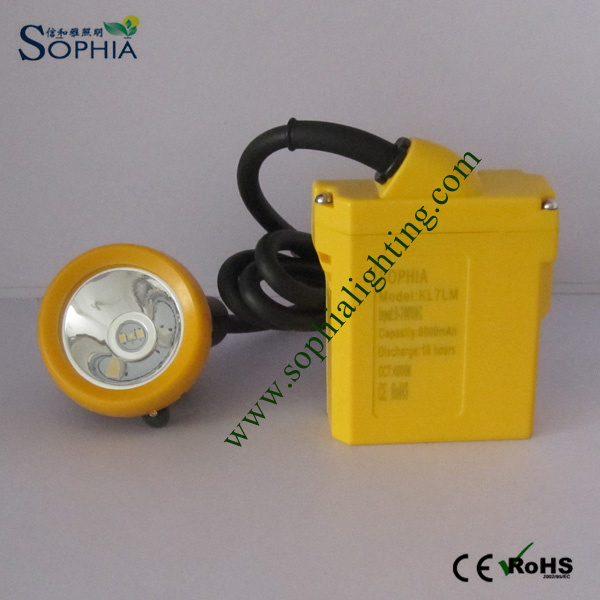

New 5W LED cap lamp, cap lighting, led headlamp, LED headlight, led mining lamp, mining light, head lamp, explosive proof light, working lamp, work light, miner's lamp, emergency lighting;
Item No.:SY7LM(KL7LM);
Rated capacity:6600mAh;
LED ( main) voltage:3.7V;
LED (Auxiliary) voltage: 3.7V;
LED ( main) current: 400mA;
LED (Auxiliary) voltage: 150mA;
Lumen: 240-270lm
Battery life: >800 times;
Lighting: >15 hours;
Beginning lux: >10000 Lx;
11 hours lux: >8000Lx;
G.W.:0.55kg;
Dimension: 78*92*45mm;
IP rating: IP65-IP68
Main feature:
Excellent CREE High power SMD LED, super brightness, long life time(50000 hours);

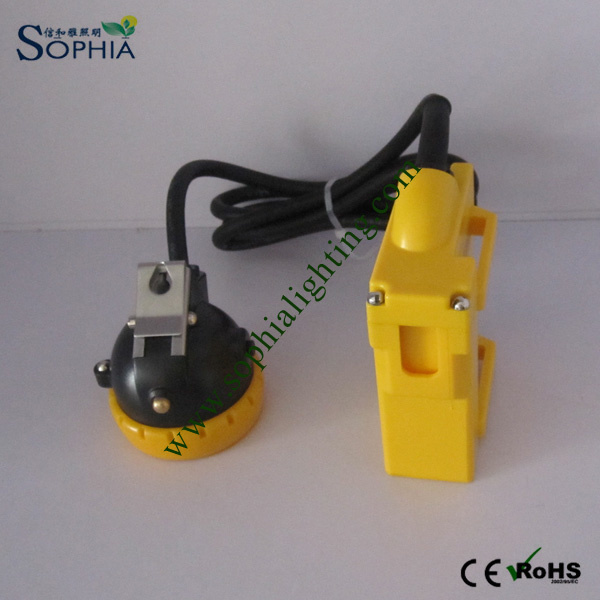

It's light, it can fix on miner's cap directly.
Li-ion battery: fully sealling, no leakage, no memory, no pollution.
Safety: overcharge protection, current control, discharge protection, short circuit protection, overheating protection.
Item No. | KL7LM(SY7LM) |
Power (W) | 5W |
Capacity | 6.6Ah |
Battery | Li-ion battery |
LED type | CREE LED |
Rated voltage | 3.7V |
Main light source | 400mA |
Auxiliary led | 150mA |
Body color | ORG/BLU/GRY/BLK |
Beginning lux | 10000lux |
Lux(10 hours) | 8000lux |
Lighting hours | 17 hours |
Battery life cycle | >800 times |
Working temperature (ºC) | -30~45ºC |
IP rating | IP65 |
LED life span (H) | 100000H |
G.W.:(kg) | 0.55 kg/pc |
Packing | 20/CTN, Carton dimension: 45*38*25cm |
Feature | Excellent CREE LED, very bright. Full sealing Li-ion battery, over charge, over-discharging and short circuit protection. Sealing and reinforced ABS housing, explosive proof, shock proof and water proof. It can be widely used in mining, construction, communication areas. |
Approval | CE, EX-I |
