Briefly introduction of our company
Eway Globallighting Technology Co., Ltd is located in Shenzhen China.
Our factory mainly manufactures 9W to 50W square and round LED down lights.
Nearly all are SAA, C-tick, CE, RoHS approval and four years warranty
Our 30W to 200W High bay lamps with meanwell driver and 45Mil Bridge LED are five years warranty.
Payment terms and shipping method
1, Payment terms: T/T, West union, Paypal, L/C.
2. Shipping method: DHL, FedEx, TNT, UPS. Sea shippment or air shippment.

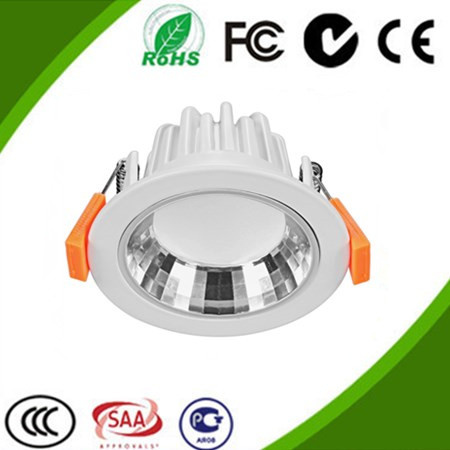

LED recessed round downlight / LED round recessed ceiling light / recessed LED round shop lighter / LED round recessed shopfitter
1. Adopt original Samsung GII chip
2. High light transmittance LED recessed round downlight
3. Lifespan> 50000hrs 4yrs wty LED round recessed ceiling light
4. LM80 CE RoHS C-TICK SAA recessed LED round shop lighter
White angel is a family of LED recessed downlights, the ideal solution for space lighting application,
Extremely low power consumption means significantenergy savings compared with traditional
CFL downlights.
Detailed specifications
Model: EW-DL-SA35SD-09
LED
90PCS sumsung GII chips ( LM80 approval )
84PCS sumsung GII chips ( LM80 approval )
Driver option
Regular ( SAA/EMC approved )
Tridonic
Input Voltage
AC90-265V 50~60Hz
AC90-264V 50~60 Hz
Power factor
> 0.90
Lamp Consumption
35W
35W
Color temperature
3000K / 4000K / 5000K / 6000K
Luminous Flux
3210lm ( 5000K)
3220lm (5000K)
CRI
Ra> 80
Beam angle
90° Milky diffuser
Dimmable
Customized
External dimension
D: 240mm X H: 90mm
Cut-out
D: 215mm
Wire connection and Plug
All Power supply cables and plugs are Double Insulated and the plugs are Australian 3 pins
Warranty / Certificates
4 Years / C-Tick, SAA, CE, RoHS
Product Benefit
@Die-cast aluminium housing, solid and durable, excellent heat dissipating effect
@CE, RoHS SAA C-Tick Approved
@Available with 2700-6500K
@Tridonic or Meanwell Driver for additional option
@ More than 80% energy saving
@ 4 Years Reliable Guarantee
@ Lumen Depreciation data (LM80 Test Data) are available
@ Available with Triac dimming
@ Environment-friendly: NO UV, NO Radiates infra-red light, NO Mercury
@ Extremely long life 50000 hours
@ Little maintenance costs
@ Excellent photometric properties
@ English 3 Pins Plug for easily connection/installation
Application
White angle offers a wide choice of versions and accessories to ensure maximum flexibility in application. These innovative downlights can be used in environments requiring a green
General-lighting solution, for instance in offices, shops, hotels and hospitals.
Service
1, OEM package or OEM LED LAMPS are acceptable,
2, Your inquiry and questions will be replied within 24 hours
3, Both of EXW and FOB price are Welcome.
Since our company was established in 2007, we have firmly believed that Green and Energy is the Great Careers for the benefit of mankind at current and in the future. Thus, we keep devoting ourselves to the research & development and innovation of LED Lighting.
1. All of our products are compliant with CE and RoHS approvals, and some of them are UL, ETL and CSA certified.
2. Our main products: (Dimmable) High Power LED Spotlights (MR16/GU10/E27/E14), (Dimmable) High Power LED PAR20/30/38 Lamps, (Dimmable) High Power LED Downlights (Ceiling Lights), (Dimmable) High Power LED Globe Bulbs, (Dimmable) High Power LED Candle Lights, LED Strips, (Dimmable) LED Fluorescent Lamps, LED Panel Lights, LED Track Lights, LED Pendant Lights, SMD G4 LED Bulbs, LED Flood Lights, LED wall Washers, etc.
3. We research & develop and create LED Lighting (both indoor and outdoor lighting).
