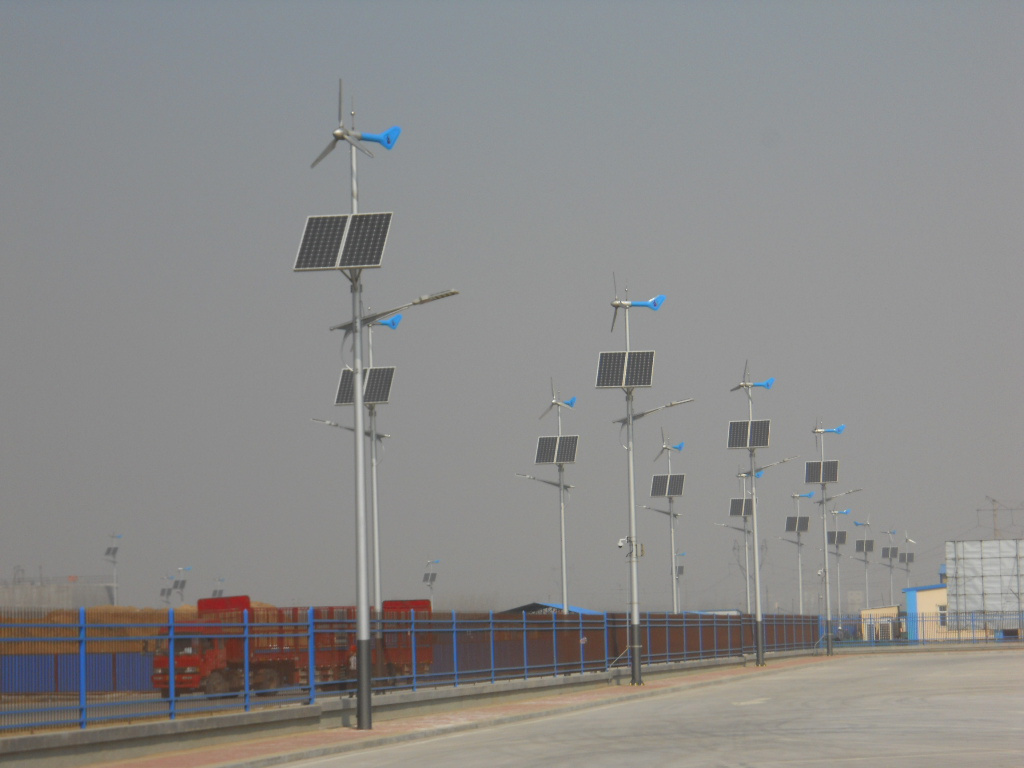

Multipurpose hybrid LED street light
Introduction;
1. Multipurpose hybrid LED street light:
A. The wind turbine generator PMG and with the pitch control;
B. The LED light source: Ultra-brightness high power LED; 30W 50W 60W 80W 100W optional;
C. The solar panel: Monnocrystalline silicon;
D. Batteries: Maintainance-free Gel battery;
E. Controller: Intelligent digital controller(light control, time control; Overcharge and over discharge protection)
F. The tower Q235, 8M 10M 12M or higher optional;
G. Wind resistance: 29m/s;
H. Lighting time: 8-10Hours/day;
I. Continuous rainy days: More than 5days;
J. Power can be customed according to customer requirement;
2, Major Applications
A. Highway
B. City main road
C. School campus road
D. Sidewalk
E. Pathway
F. Farm & ranches lighting
G. Villa lighting
H. Landscape lighting - park, square etc.
4, Technical Support & Services
3. Custom design - base on light source load, lighting hours, site wind & solar resources condition
B. Detailed installation guide or optional on-site technician guidance
C. Remote system operation monitoring - operating stage
D. Warranty on major parts - warranty & replacement
|
Name |
Size |
Sum
( US ) |
Remarks |
|
Main body wind turbine |
300W |
$410 |
With pitch control system |
|
500W |
$480 |
|
Solar panel |
$1.5/w
This price with bracket |
240w |
$360 |
Monocrystalline silicon |
|
380w |
$570 |
|
|
LED light source |
30W |
$98 |
Ultra-brightness high power LED
(Optional) |
|
50W |
$165 |
|
60W |
$195 |
|
80W |
$260 |
|
100W |
$320 |
|
Controller |
500W |
$96 |
Intelligent digital controller(Light\time control); overcharge and over discharge protection; |
|
Tower |
6M |
$355 |
|
|
8M |
$390 |
|
|
10M |
$520 |
|
|
12M |
$580 |
|
|
Maintainance – free Gel batteries |
12V100AH |
$120/pcs |
2pcs |
|
12V150AH |
$194/pcs |
2pcs |
|
12V200AH |
$242/pcs |
2pcs |
|
Other Materials |
$130/set |
Foundation bolt cable and the battery box, etc. |
|
Remarks |
MOQ: 5 sets; Wind resistance: 29m/s; Lighting time: 8-10 days Power can be customed according to customer requirement |
Qingdao Minshen Wind Power Technology Co., Ltd. is a professional&high-tech company engaged in wind turbine generator, it founded in 2000 and located in laixi development zone in qingdao(close to 804 national road), convenient transportation through qingdao, yantai, weihai, weifang, such as port. Our company committed to research wind turbine and has advanced wind turbine design&manufacturing technology(a number of technology patents), advanced equipment, many superb experts.
The wind turbine generator which we can produce now include many kinds of horizontal and vertical axis wind turbines from 200W to 100kw. Rational product design, advanced technology, stable and reliable quality are our products characteristics, at the same time, our products have passed ISO9001-2008 international quality management system certification, CE product safety certification. Large-scale wind turbine can be used for the construction of wind and grid and the small wind turbine is the ideal power supply system for the scattered households, meteorological stations, posts, communities, plains, farms and so on. Products have exported to Africa, India, France, Russia and other countries. We have made a tremendous contribution for environmental protection and resource conservation.
For our company, the purpose is to serve the community and benefit to mankind. The spirit is to be pragmatic and aggressive; The philosophy is to keep promises and share benefits, our goal is to keep pace with the times and pursue the excellence. Then warmly welcome the domestic and foreign merchants to our company, we are looking forward to close cooperation hand in hand.
