Place of Origin: Guangdong, China (Mainland)
Brand Name: Youming
Model Number: UM-575BXY
Total power: 700W
Channel: 20CH
Lamp: HMI 575W/S
Packaging & Delivery
Packaging Details: Carton Size:L515xW485xH758mm
Flycase Size:L530xW450xH930mm
N.W:38.5Kg
G.W:(Carton)42.5Kg
G.W:(Flycase)63Kg
Delivery Detail: 1-15Days
Specifications

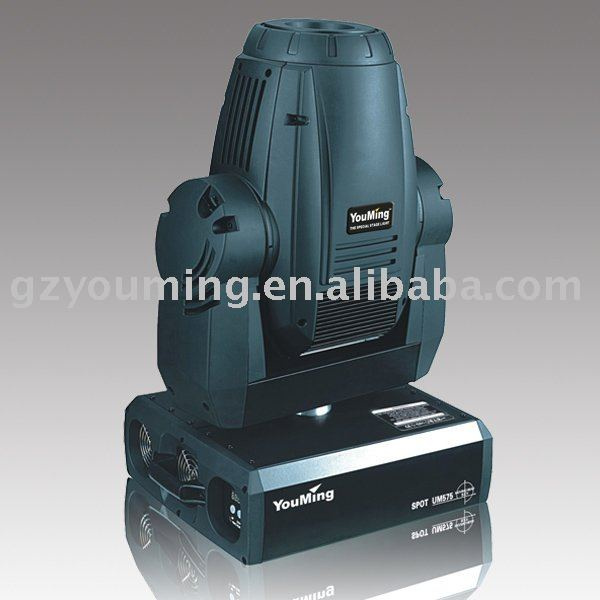

Moving Head Light 575W:
Power:220V/50Hz (The other power can order)
Lamp:HMI 575W/S
Total power:700W
Channel:20CH
Moving Head Light 575W:
Model:UM-575BXY
Power:220V/50Hz(The other power can order)
Lamp:HMI 575W/S
Total power:680W
Channel:18CH/20CH/22CH
Size:L445xW400xH715mm
Carton Size:L515xW485xH758mm
Flycase Size:L530xW450xH930mm
N.W:38.5Kg
G.W:(Carton)42.5Kg
G.W:(Flycase)63Kg
Brief Introduction
> Adjustable aperture
> 12 mail color +36 mixing full color,high speed rainbow effect and rotating.
> 0-100% Mechanical linear Dimmer
> 1-10 times/s high speed STROBE effect
> Horizontal 450°and vertical 270°scanning range,smooth scanning action and accurate orientation
> Two high precision density step motor in pan and tilt
> Precise speed adjustment on horizontal and vertical position
> X.Y Pan position moving and vector functionremoving.
> 5 static elegant gobo +Open(The other gobos can order)
> 4 rotating elegant GOBO+Open(The other gobos can order)
> Pattern internal light rotating function,freely adjusting fast, low speed,clockwise and anticlockwise.the rotating angle can adjust by hand.
> Adopt nonpolar zoom change focus function between 15°-35°,and random adjusted.
> 3-facet prism, prism rotating clockwise and anticlockwise, speed adjustment.
> 6 convection fans refrigeration,optimize circuit design inside,heated elimination rapidly.
> Built-in over heat protectin and high voltage protection
> Compatible with DMX 512 international digital signal
> According to various kinds of safety stanards,IP20 protect grades.The cable accords to the CE20/22 standard..
