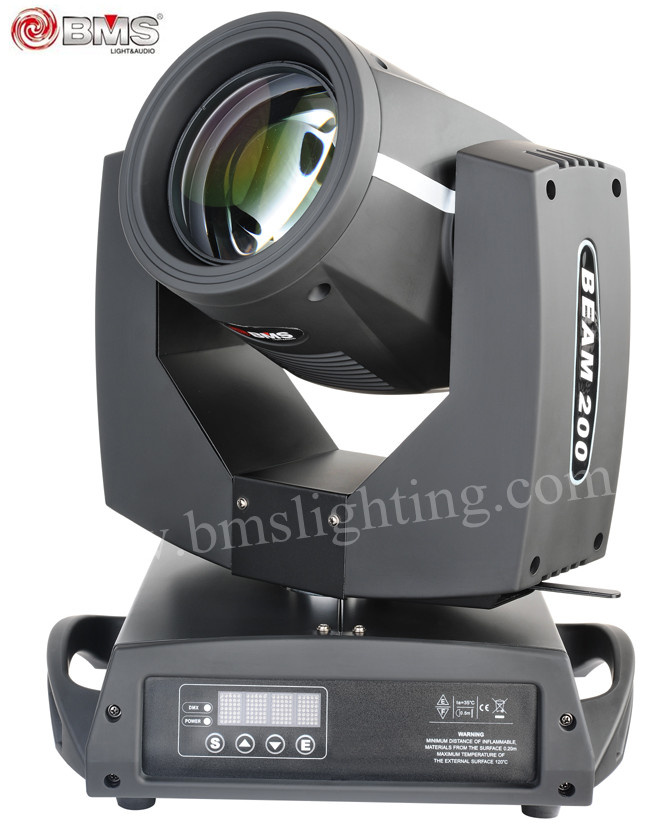

Moving Head Beam 200W 5r Stage Light
POWER SUPPLIES
- 110-240V 50/60 Hz
- INPUT POWER
LAMP SOURCE
Discharge lamp with a short arc burner in a reflector system
- Type: PHILIPS MSD Platinum 5R
- Output Lamp power: 200W
- Colour temperature: 8, 500 K
- Average life: 2, 000 h
OPTICS
- 3-lens optical group combination
- Focus: Electronic
- Light output at 20 meters (65 feet): 59, 760 lux
COLOR SYSTEM
- Interchangeable color wheel with 14 colors + open
EFFECTS SECTION
- Interchangeable gobo wheel with 17 fixed gobos + open
- High speed shake effect
- 8-face rotating prism
FROST FILTER
- Mechanical shutter and adjustable speed strobe effect
- Mechanical dimmer
CONTROL AND PROGRAMMING
- 16 DMX 512 control channels
- Display: LED RED Display
- Pan/Tilt Resolution: 16 bit
- Movement control: Vectorial
- DMX signal connection: 3 PIN output
BODY
- Aluminium structure with die-cast plastic cover.
- Two side handles for transportation.
- Device locking PAN and TILT mechanisms for transportation and maintenance.
- MOVING BODY
- PAN = 540° - TILT = 250°
ELECTRONICS
- Function reset from the lighting desk
- ON/OFF lamp control from the lighting desk
- "AUTOTEST" function from menu
- Electronic monitoring with status error
SAFETY DEVICES
- Bipolar circuit breaker with thermal protection.
- Automatic break in power supply in case of overheating or failed operation of cooling system.
- Forced ventilation with axial fans.
- Hanging system: With fast-lock omega clamps (1/4 turn) on the base
