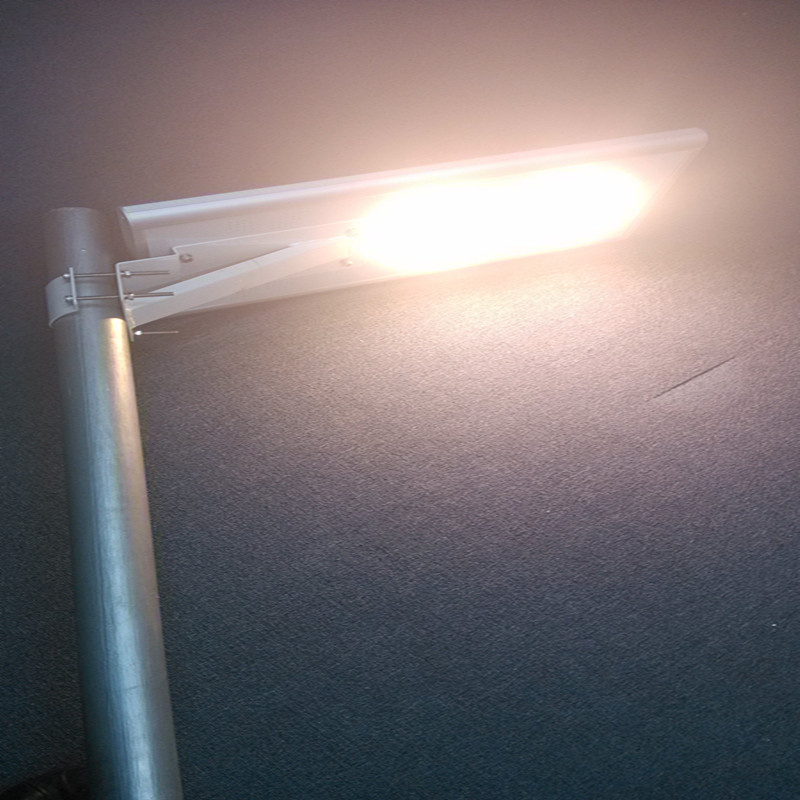

Motion sensor led solar street light (SLD-SL-310)
Functional features
1 First integration design, contracted, fashionable, portability and practical;
2 Using solar power to save electricity protect the earth's resources;
3 Uses the human body infrared sensor control technology, Passers-by came over to light is on. Passers-by walked after the lamp is dark. Prolonged illumination;
4 Use of long life and high capacity lithium battery, ensure the service life of the product;
5 Don't need to pull, installation is convenient;
6 Waterproof structure, safe and reliable;
7 Extensible timing and acoustic control, and other functions;
8 The idea of modular design, easy installation, maintenance and repair;
9 Using alloy material as the main body structure has good Anti-rust and anti-corrosion functions.
Installation Notes (instructions are supplied with each fitting)
Install fuse if present before use (remove any film under fuse)
Tool supplied to tighten security bolts provided
Face solar panel as much towards the north as possible to maximize sun exposure (and therefore battery charge. )
NB: As with all solar products, performance is wholly dependent upon the hours of direct sunlight and the orientation of the solar panel.
Model |
SLD-SL-3 10 |
Size |
650 * 325 *43mm |
Carton Size |
720 * 380 *195(1pcs) |
Net weight/Gross weight |
9.7 kg/ 10.5 kg |
Light Source |
10 w |
PV Power |
25 w |
Battery |
9 000mAh-LiFeo4 |
Human Body Sensing |
yes |
Overload Protection |
yes |
Dimension |
650 * 325 *43mm |
Luminous Flux |
All Bright |
900 lm |
Energy Saving |
300 lm |
Viewing Angle |
120° |
Color Temperature |
3000-3500k/6000-6500k |
Light Perception Threshold |
25lx |
Working Time |
Bright mode |
≥ 9 hrs |
Dim mode |
≥ 24 hrs |
Working temperature |
Charging temperature |
0 °C ~+60 °C |
Discharging temperature |
-20 °C ~+60 °C |
Storage temperature |
-20 °C ~+45 °C |
Degree of protection |
IP 6 5 |
The installation of a height range is recommended |
3 ~ 4 m |
The distance of installation |
15 ~ 20 m |
