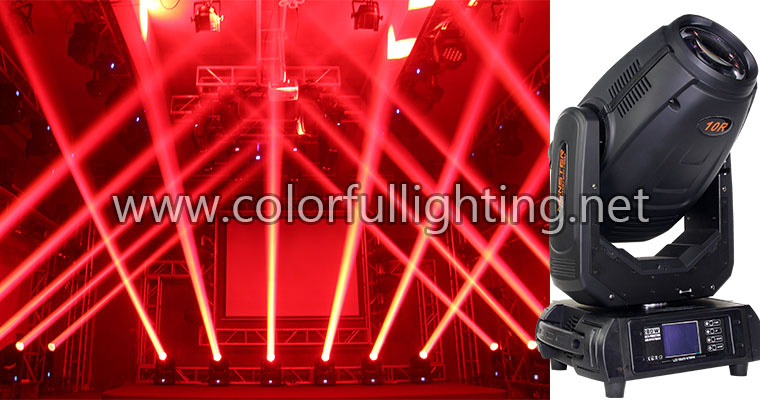

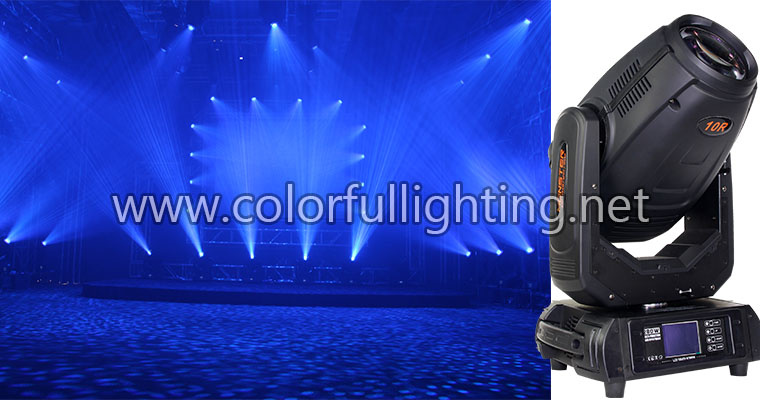

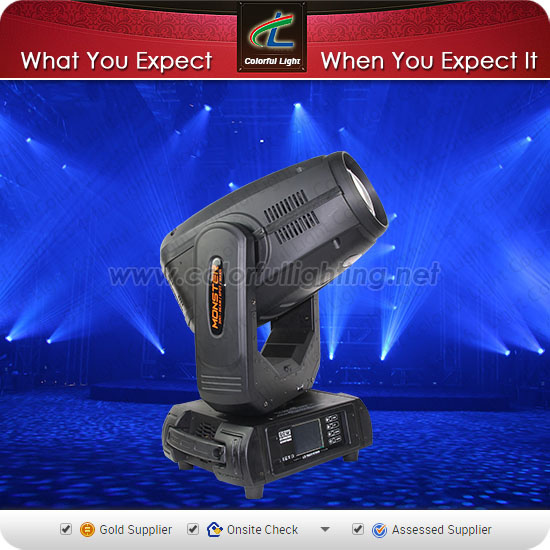

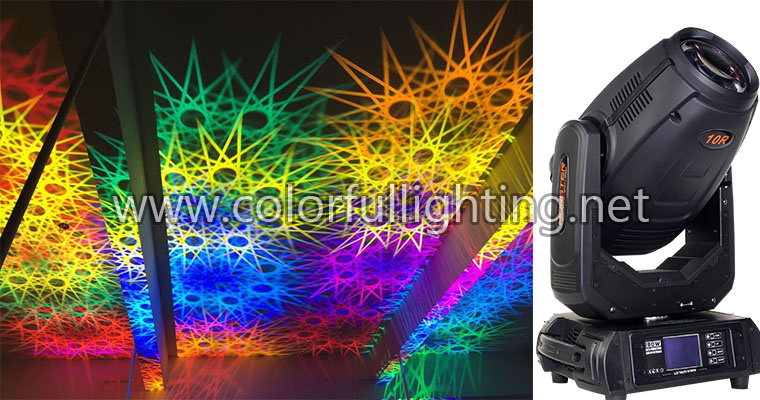

Most Hot Selling 280w Beam Moving Head Light SpotTechnical Specifications
Electrical
Power supply:.........................electronic auto-ranging
Input voltage range:............... supply 100-240V, 50/60Hz
Live Fuse:...............................T 5 A/250V,
Neutral Fuse:..........................T 5 A/250V
Max. power consumption:.........470 W at 230V (I=2,05A,power factor 0.96)
Typical power consumption:......390W at 230V (I=1.8A, power factor 0.95)
*Allow for a deviation of +/-10%
Lamp
Approved model: HRI 280W
Lamp life: 2000 hrs (Standard mode)
3000 hrs (Eco mode)
Ballast
Electronic
Optical System
High luminous-efficiency glass reflector
Beam range: 5°-20° (spot application)
2.5°-10° (beam application)
Colour wheel
13 dichroic filters + white
Static gobo wheel
10 metal gobos & 4 beam reducers
Rotating gobo wheel
9 glass gobos can be indexed and rotated in both directions at different speeds
Gobo wheel continuous rotation
Glass gobos:
"Slot&lock" system for easy replacement of gobos
Prisms
Rotating 6-facet linear prism with continuous rotation in both directions
Rotating 8-facet circular prism with continuous rotation in both directions
Zoom
Linear motorized zoom
Strobe
Strobe effect with variable speed (max.15 flashes/sec.)
Dimmer
Smooth dimmer from 0 - 100 %
Control
LCD touch screen
Readout fixture and lamp usage, receiving DMX values, temperatures, etc
Built-in analyzer for easy fault finding, error messages
Black-out while head moving, colour or gobo changing
Self-resetable thermo-fuse
Stand-alone operation
3 user editable programs, each up to 100 steps
Supported protocols: USITT DMX 512
2 DMX modes (24,16 control channels)
Pan/Tilt
Pan movement range 540°
Tilt movement range 270°
16 bit movement resolution
Automatic Pan/Tilt position correction
Movement control: tracking and vector
Pan/tilt-lock mechanism
Connection
DMX in/Out: 3-pin and 5-pin XLR Power
In: Chassis connector PowerCon
Rigging
Mounting points: 2 pairs of 1/4-turn locks
Mounting horizontally or vertically via 2 Omega brackets
Temperatures
Maximum ambient temperature : 45° C
Maximum housing temperature : 90° C
Minimum distances
Min. distance from flammable surfaces: 1 m
Min. distance to lit objects (Standard mode-280W): 10 m
Min. distance to lit objects (Eco mode-230W): 7.5 m
Total heat dissipation
1600 BTU/h (calculated)
469 Wh (calculated)
Weight (net):
15 kg
