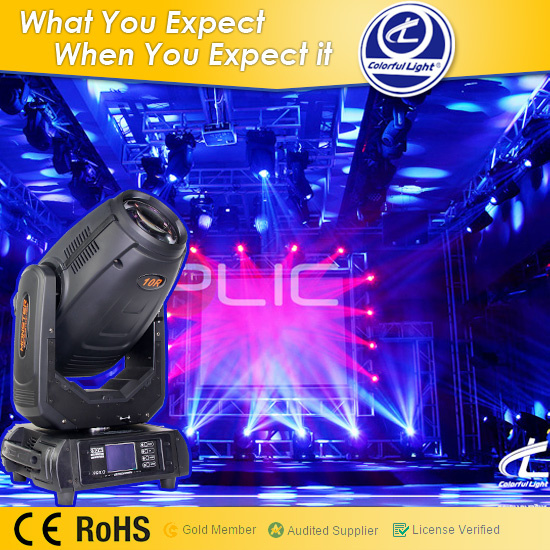

Monster 10r 280W Beam Spot Moving Head Stage Light
| Price: |
US $ 600-650/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Monster: Versatile 10R 280W Beam Spot Moving Head Stage Light
Introducing our Monster, It's very bright and super-fast with a sharp parallel beam that cuts through the air and across video with ease. It can project a static or rotating glass gobo to produce precision in-air and surface images with an even focal plane. Tight or at full 20 degree zoom, the output is crystal clear and brilliant. Add in either rotating, 6 way linear or 8 way circular, prisms to create wide reaching effects across any set.
Drop in the frost filter and use any of the 13 rich colours to create a smooth even wash. The Monster has an output far greater in size, quality and power than seems possible from it's small, lightweight body - due to the efficient short arc 280 W discharge source and the Colorful Light optical configuration. This new technology fixture even travels efficiently in a case of 4 and will cover all your needs - Beam, Spot, Wash, FX - it's versatile like a MONSTER.Details of Monster 10R 280W Beam Spot Moving Head Stage LightElectrical
Power supply:.........................electronic auto-ranging
Input voltage range:............... supply 100-240V, 50/60Hz
Live Fuse:...............................T 5 A/250V,
Neutral Fuse:..........................T 5 A/250V
Max. power consumption:.........470 W at 230V (I=2,05A,power factor 0.96)
Typical power consumption:......390W at 230V (I=1.8A, power factor 0.95)
*Allow for a deviation of +/-10%
Lamp
Approved model: HRI 280W
Lamp life: 2000 hrs (Standard mode)
3000 hrs (Eco mode)
Ballast
Electronic
Optical System
High luminous-efficiency glass reflector
Beam range: 5°-20° (spot application)
2.5°-10° (beam application)
Colour wheel
13 dichroic filters + white
Static gobo wheel
10 metal gobos & 4 beam reducers
Rotating gobo wheel
9 glass gobos can be indexed and rotated in both directions at different speeds
Gobo wheel continuous rotation
Glass gobos:
"Slot&lock" system for easy replacement of gobos
Prisms
Rotating 6-facet linear prism with continuous rotation in both directions
Rotating 8-facet circular prism with continuous rotation in both directions
Zoom
Linear motorized zoom
Strobe
Strobe effect with variable speed (max.15 flashes/sec.)
Dimmer
Smooth dimmer from 0 - 100 %
Control
LCD touch screen
Readout fixture and lamp usage, receiving DMX values, temperatures, etc
Built-in analyzer for easy fault finding, error messages
Black-out while head moving, colour or gobo changing
Self-resetable thermo-fuse
Stand-alone operation
3 user editable programs, each up to 100 steps
Supported protocols: USITT DMX 512
2 DMX modes (24,16 control channels)
Pan/Tilt
Pan movement range 540°
Tilt movement range 270°
16 bit movement resolution
Automatic Pan/Tilt position correction
Movement control: tracking and vector
Pan/tilt-lock mechanism
Connection
DMX in/Out: 3-pin and 5-pin XLR Power
In: Chassis connector PowerCon
Rigging
Mounting points: 2 pairs of 1/4-turn locks
Mounting horizontally or vertically via 2 Omega brackets
Temperatures
Maximum ambient temperature : 45° C
Maximum housing temperature : 90° C
Minimum distances
Min. distance from flammable surfaces: 1 m
Min. distance to lit objects (Standard mode-280W): 10 m
Min. distance to lit objects (Eco mode-230W): 7.5 m
Total heat dissipation
1600 BTU/h (calculated)
469 Wh (calculated)
Weight (net)
15 kg
Effect of Monster 10R 280W Beam Spot Moving Head Stage Light

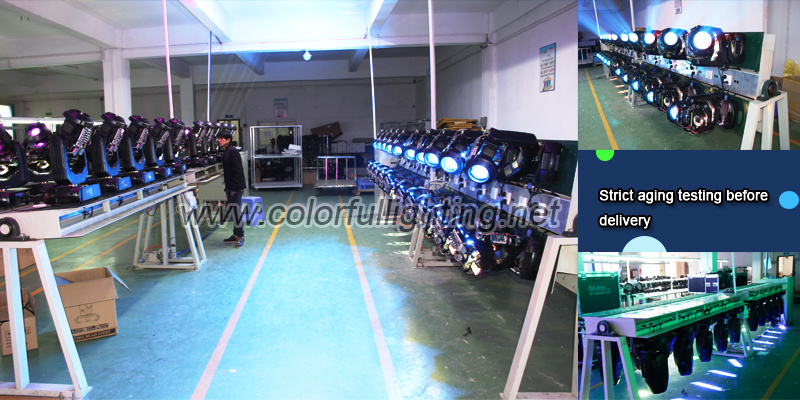

Aging test of Monster 10R 280W Beam Spot Moving Head Stage Light
FAQ: 1. Q: Are you a factory or trading company?
A: We are a real manufacturer of professional stage lighting.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Guangzhou City, Guangdong Province, China, about 25 minutes away from Baiyun Airport. All our clients, from home or overseas, are warmly welcome to visit us!
3. Q: How to get the price list?
A: Pls send down email or call us, skype at "michael.colorfullight "to us with items names which you like together with your details(name, details address, telephone, etc), we will send to you asap.
4. Q: Do you have any certificates?
A: Yes, we can offer the CE/ROHS certificates as per your requirements.
5. Q: What's the shipping method and deliery time?
A: Our products could be shipped by Sea, by Air(Airport to Airport) or by Air Express(DHL, UPS, FedEx or TNT). Which methods to be used is based on the weight and size of the package and with consideration of customer's requirements. By sea: 20-40 days; By air: 5-10 days ; By express: 3-6 days.
6. Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder in Guangzhou or all over China, we can ship the goods to your forwarder and let your forwarder ship the products for you. And then you will no need to pay the freight to us.
7. Q: What's the Payment method?
A: We can accept T/T, Western Union, PayPal or visit factory in cash as payment methods, 30% deposit before production for amount over US$5000, the balance before delivery. When PayPal is made, below US$3000 order only and 4% handling fee will be added.
8. Q: How to place an order?
A: Please kindly let us know what you're looking for by email or phonecall, we will confirm our Proforma Invoice(PI) with total price. We wish to know the below: Delivery information-company name, detailed address, phone, destination, transportation way ; Product information: Item number, quantity, package(carton or flight case), logo, etc.
9. Q: How does your factory do regarding quality control?
A: Quality is priority. Colorful Light always attach great importance to quality controlling from the very beginning to the very end. We will test the lights on our 360 degrees rotation machine in every position will our products be used for 8-24 hours.About us:Guangzhou Mingliang Stage Lighting Equipement Factory(Colorful Light) is a small but growing stage lighting manufacturer since 2008, located in GZ, China. We employ experienced engineers on software, structure and power supplier, our boss Mr. Lee is a technical enginner as well. We Mainly produce conventional moving head, led moving head, led par, outdoor led wash fixtures and effect lighting. We have the ability to realease new 5-6 new fixtures every year. We supply many lights and have very close cooperation with one of the biggest night clubs in China. Our products are CE&RoHS certificated, 1 year limited warranty. Welcome to order our products. Please contact us for any questions. Hope we can establish a good business relationship with you in the near future. Warmly welcome you to pay a visit to our factory.
Light Item | Moving head stage light, moving head light |
| Model | CL-M10R |
| Leading time | 4-15 days based the CL-M10R quantity |
| Price | Negotiable after we confirm the quantity |
| Warranty | 1 Year, we sell after CL-M10R with great servie |
| Package | Our standard carton or dual flight case on wheels |
| Video link 1 | https://www.youtube.com/watch?v=17xCsqWIhaY |
| Monster 10R stage light Video link 2 | http://youtu.be/00ZGZTjXUgs |
| Monster 10R stage light Video link 3 | http://youtu.be/q67H9nj7id4 |
|
|
| Prod Model: |
CL-M10R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light: |
Monster 10r 280W Beam Spot Moving Head Stage Light |
| Item: |
Stage Light |
| Gobo Wheel 1: |
10 Metal Gobos & 4 Beam Reducers |
| Gobo Wheel 2: |
9 Rotating Glass Gobos + Open, Interchangable |
| Prism 1: |
6 Facet Linear Rotating Prism |
| Prism 2: |
8 Facet Circular Rotating Prism |
| Zoom: |
2.5-10 Degrees at Beam, 5-20 Degrees at Spot |
| Dimmer: |
Smooth Dimmer From 0 - 100 % |
| Warranty: |
One Year |
| Availability: |
4-15 Days Based The 10r Quantity |
| Light Source: |
Gas Discharge Bulb |
| Material: |
Aluminum |
| Emitting Color: |
Cool White |
| Strobe: |
Adjustable Speed Strobe |
| Control Mode: |
Dmx Signal Control |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Control Channel: |
16/24CH |
| Voltage: |
110V-240V, 50/60Hz |
