Feature:
1. Similar with 12W led spot light
2. High bright 60W LED
3. High brightness, the luminace is 4500lux at 2 meter.
4. Compact size and lightweight makes it ideal for mobile entertainers, small club and bars
Specification:

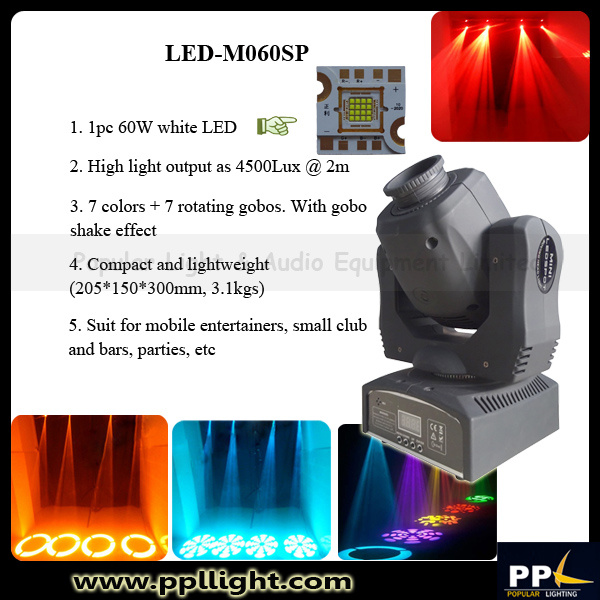

Mini moving head with a bright 60W white LED
Switching power supply: AC 100 - 240 V, 50/60 Hz
LED light source: Single white LED with 60 W (approximately 50,000 hours)
High light output as 4500LUX at 2m
7 colors + white
7 rotating gobos + fixed effect headlights
3 operation modes: DMX, Sound Active Mode and show modes
2 DMX channel modes 8 & 12 DMX channel modes
4 shows integrated
Gobo Shake effect
Gobo scroll mode
Angle: 13 degrees
540 ° pan / 182 ° tilt (16-bit)
Shutter: Random function for strobe / pulse effect, from slow to fast
Dimming: 0% - 100%
fan cooled
Display vice versa
including Omega-mounting bracket
Connections: DMX via 3-pin XLR cable
Dimensions (L x W x H): 159 x 147 x 265 mm
Weight: 3 kg
DMX Channel:
| 8CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
|
|
|
| Function | Pan | Tilt | Pan/Tilt Motor speed | Dimmer | Strobe | Color | Gobo | Marco Function |
|
|
|
|
| 12CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Function | Pan | Pan Fine | Tilt | Tilt Fine | Pan/Tilt Motor speed | Dimmer | Strobe | Color | Gobo | Pan/Tilt Motor Effect | Pan/Tilt Motor Effect speed | Marco Function
|
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
