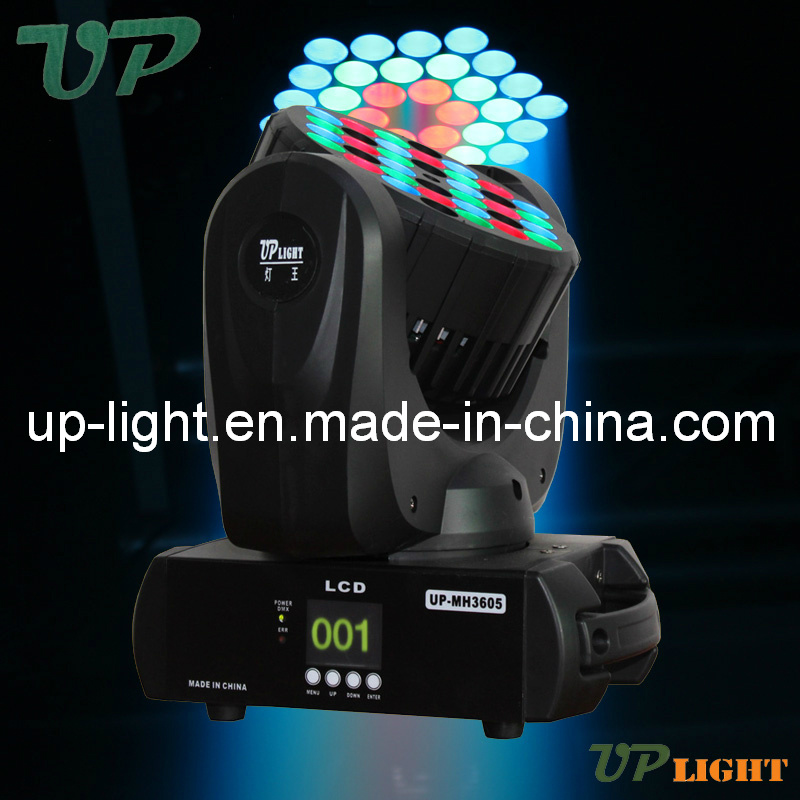

Mini 36*5W LED Beam Moving Head Light
Input voltage: AC100~240V, 50~60Hz;
Rated Power: 220W;
LED lamp: 5W LED with long life 80000-100000 hours, high luminous efficiency, no radiation and low power consumption etc;
LED Qty: 36PCS LED chips (8R+10G+10B+8W);
LED Lamp powr supply: Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection;
LED drive mode: Adopt static constant current drive mode with high precision and non-flicker (400Hz);
Control Mode: DMX512 signal 3-pins connection control, master-salve control or sound control with self-programming mode, self-running mode, extral control mode;
Channel: 12CH, 15CH two channel modes;
Color: Sophisticated 4 colours Red, Green, Blue, White color mixing, reaching high Colour rendering index;
Color effect: Uniform color beam with no colour shadows, rich saturated and more pastel lighting;
Lens: High optical transmission acrylic lens;
Beam angle: 5° (standard angle);
Dimmer: 0~100% linear adjustable dimmer without colour variation;
Strobe: Electronic strobe;
Head movement: Pan 540º , Tilt 270º With auto position correction, adjustable speed, 16Bit resolution;
Material: Aluminum alloy plus plastic;
Working terperature: -15~45° C;
Application: Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert,
DJ effect, disco effect, club effect, party effect etc;
Package size: 295*295*370mm
Gross weight: 6kg
Channel |
Function |
CH 1 |
Dimming |
CH 2 |
RED |
CH 3 |
GREEN |
CH 4 |
BLUE |
CH 5 |
WHITE |
CH 6 |
User-defined lighting |
CH 7 |
Pan scanning |
CH 8 |
Tilt scanning |
CH 9 |
Pan scanning fine |
CH 10 |
Tilt scanning fine |
CH 11 |
Scanning speed |
CH 12 |
Strobe |
CH 13 |
RGBW marco function |
CH 14 |
Auto speed adjustment |
CH 15 |
ID code |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
