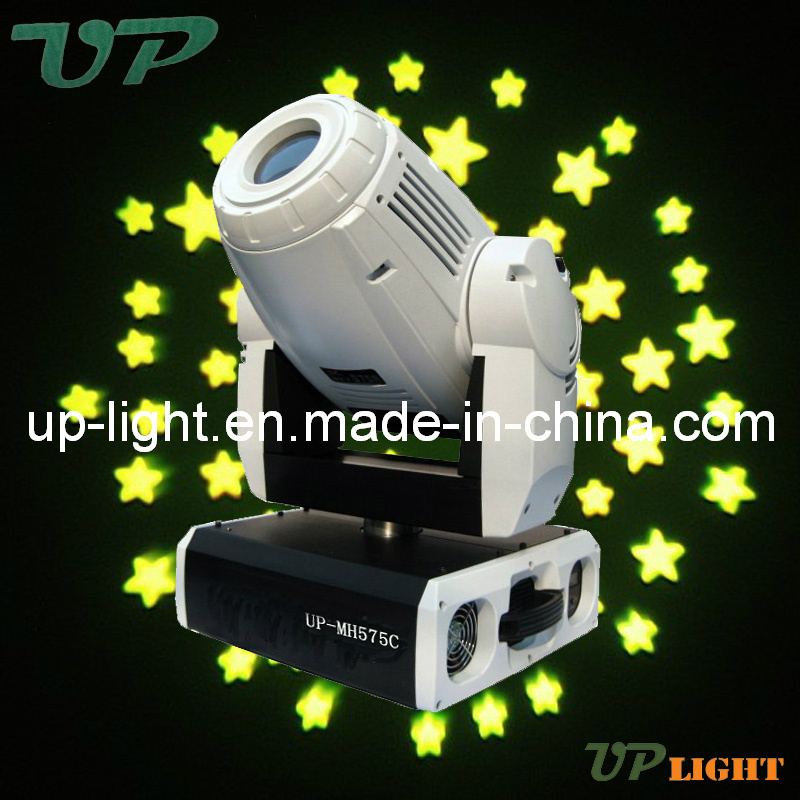

Popular Martin style 575W moving head spot
1.13 Stepless motors keep moving fast
2.3PCS fans cooling system
3. Powerful beam
We special in moving head lights in R&D, production, sale, and service. Good effect, competitive prices, Up-light is your best choice for stqge lighting equipments. OEM service offer also.
Parameter
Voltage: 220V AC/50Hz
Power: 750W
Lamp: HMI 575W
DMX Channel: 16CH, 13PCS stepless motor
Signal: DMX512 signal
Color wheel: 2 color wheels, total 14 different colors + white
Gobo wheel: 2 Gobo wheels, 4 rotating Gobos + 4 fixed Gobos
Prism: 3-faced prism
Dimming: Auto-Dimming
Strobe: Strobe speed 1-11times/second
Horizontal: 540 degree
Vertical: 270 degree
Packing carton: 528*450*805mm
N. W.: 32KG
G. W.: 36KG
Performance Characteristics
LCD display in English
The X/Y axis speed shift can be selected directly on the display. Total 4 speed can be selected.
X/Y axis reverse function can be selected.
Two color wheels, total 14 different colors.
Two rotating Gobo wheels, one with fixed Gobos of shaking function, other with rotating Gobos.
0-100% linear dimming
2 Fans cooling system...Build-in over-heat protection system.
Proof rating: IP20
About Uplight
Experience: Uplight is special in stage lighting for more than 10 years with rich experience in PRO stage light R&D, quality control, and service.
Cooperation: Uplight is working with our clients not only as supplier but also cooperator and partner. Clients success is our success.
Price: Uplight can offer our customers with competitive prices because we are efficient manufacturer.
Service: Uplight always with a good communication proffessional sales team in patient. And we offer our coustomers with one year warranty for all products.
| Channel | Channel function |
| Ch 1 | Iris |
| Ch 2 | Color1 |
| Ch 3 | Color2 |
| Ch 4 | Strobe |
| Ch 5 | Pan |
| Ch 6 | Tilt |
| Ch 7 | Pan Fine |
| Ch 8 | Tilt Fine |
| Ch 9 | Pan/Tilt Speed |
| Ch 10 | Replaceable gobos |
| Ch 11 | Rotating gobos |
| Ch 12 | Gobo rotating |
| Ch 13 | Focusing |
| Ch 14 | Prism |
| Ch 15 | Prism rotating |
| Ch 16 | Reset |
