Quick Details
Light Source: LED
Item Type: Light Strips
LED Light Source: SMD5050
Type: Flex LED Strips
Input Voltage(V): DC5V
Lamp Power: 72W
Lamp Luminous Flux(lm): 18-20lm/led
CRI (Ra>): 75
Color Temperature(CCT): 2700-7000K
Working Temperature(ºC): -20 - 60
Working Lifetime(Hour): 50000
Lamp Body Material: Copper
Certification: CE, RoHS
Emitting Color: Changeable, RGB
Place of Origin: Guangdong, China (Mainland)
Brand Name: LF
Model Number: LF-FW5050RGB24PF-8806
Waterproof IP Rank: IP65
Life Span: 50,000hours
viewing angle: 120degrees
Working Current: 6A
Work Power: 72W
Warranty: 2 years
Power Consumption Per Piece: 0.72W
Voltage: DC5v
Drive Current Per Piece: 60mA
Packaging & Delivery
Packaging Details: | plastic reel and anti-static bag |
|---|
| Delivery Detail: | 3-10 working days |
|---|

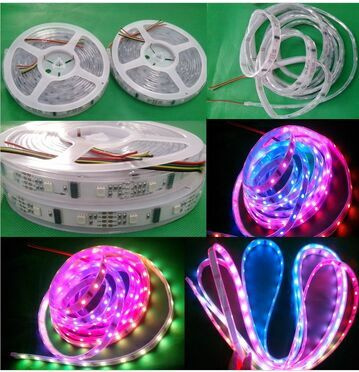

48led/m 5v flexible d digital lpd8806 rgb led strip
Parameter:
1) Voltage: DC5V
2) IC type: LPD8806
3) IC quantity: 24pcs/meter
4) LED type: SMD5050 RGB
5) LED quantity: 48pcs/meter
5) Pixel: 48pcs/meter
7) Max power: 15W/meter
8) Bit: 7
9) Greyscale: 128
10) Size: 5000x15x3mm (non waterproof)
11) Package: 5meters/reel/anti-static bag
Connection:
1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support LPD8806; when use DMX decorder, can connect to DMX system
4) Support online control
Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product
Advantage:
1.Environment friendly.
2.Long lifespan and Energy-saving.
3.Experienced employees that capable for good service
4.Considerate and kind sales-after service.
5.Strict QC procession, ensure each product is high quality.
