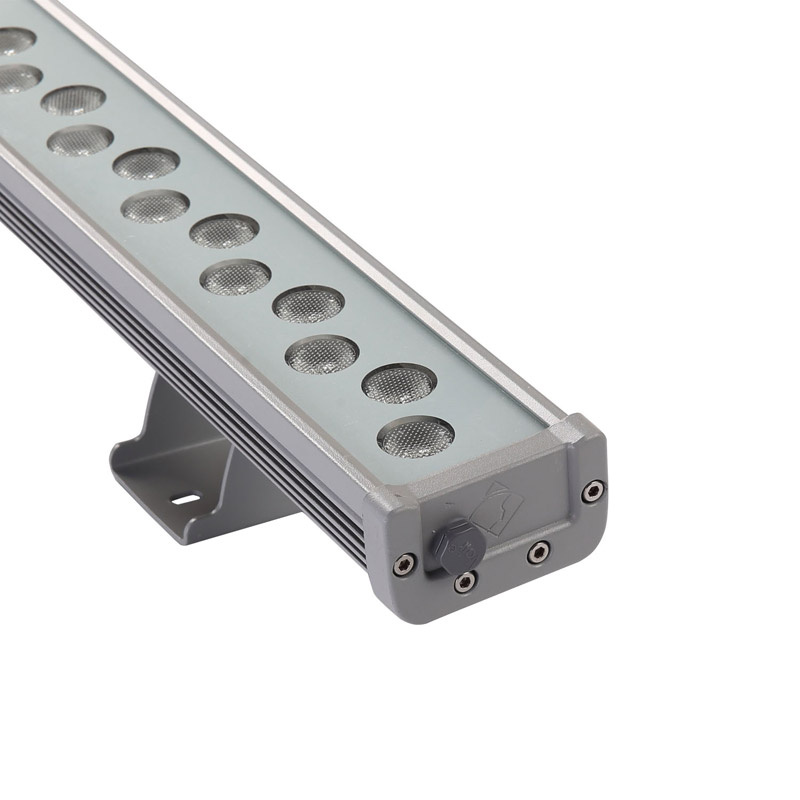

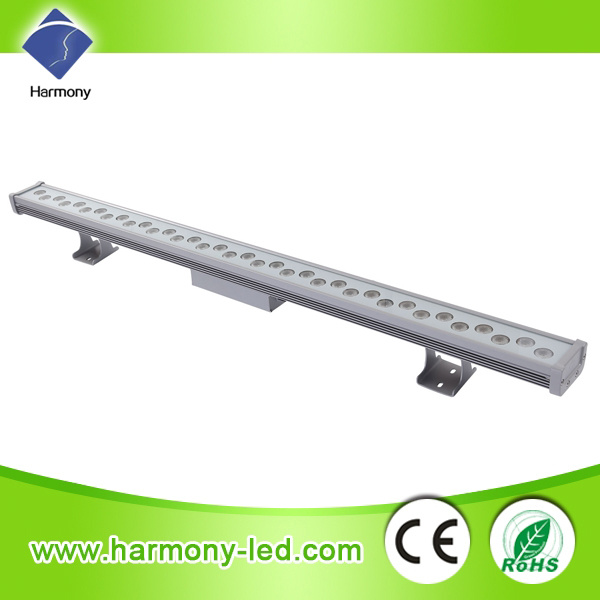

Linear 36*1w led wall washer 36p ip65New design and new Features:1.Respirator :could let the water and fog out of the body, much better waterproof.2.Crescent-shaped bracket :can be mounted at 90degree.3.External LED driver (in the bottom of the body) ,much better heatsink and Easier repair.4.Shading plate for selection.5.Transparent or Silk Screen Tempered glass for selection.Designing by our engineers , We are the sole owner. So we could control good quality in every step.6.AC220V, Internal control,without Controller.

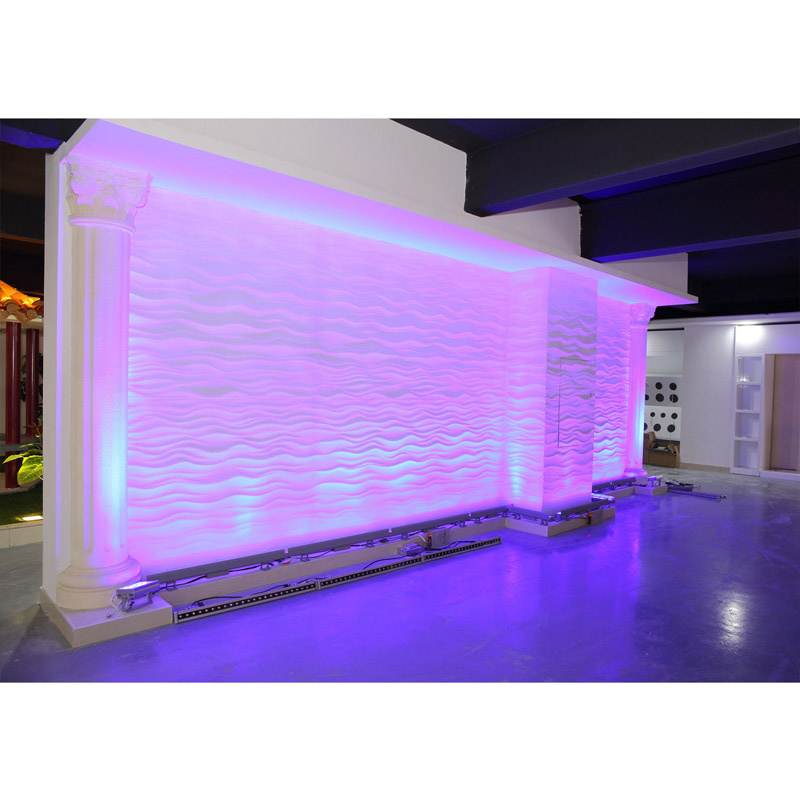

Applications:1) Ambience lighting for bar, dance hall2) Lighting for billboard, factory,hotle,building of the outside wall3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazasRemarks:1)LED Wall Washer should be used in accordance with the environment requirement

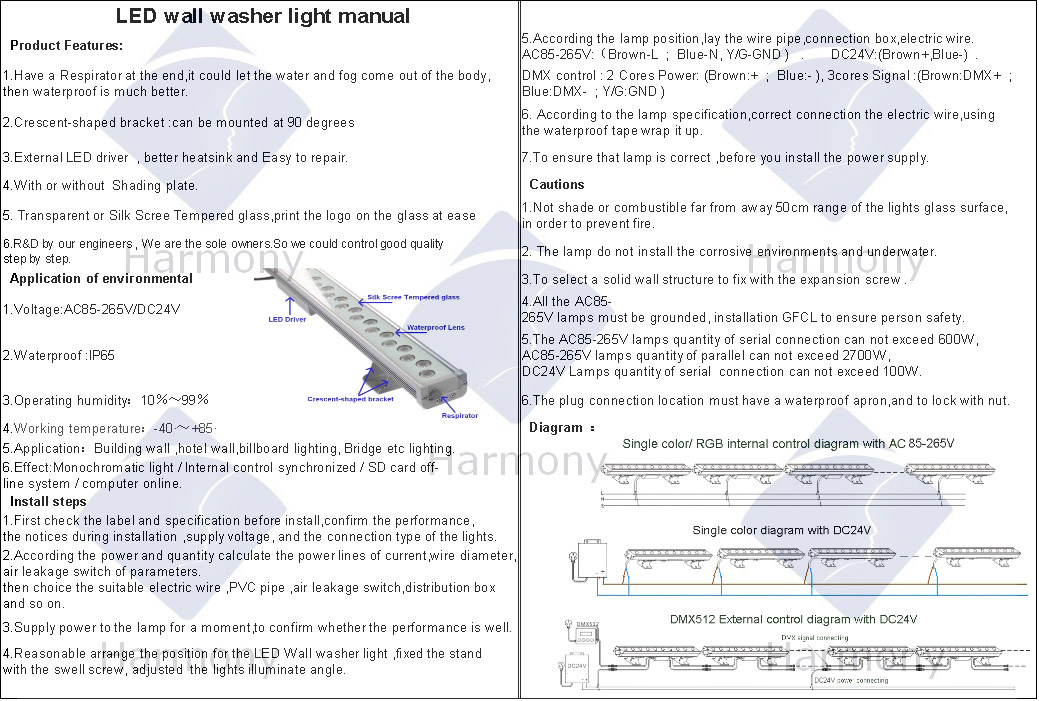

2)DMX512 control System:
A: Set one as a host, the others set as address mode when many sets wall washer working together.
B: Set all the lights to the address mode(001-512), instead of the master internal control mode when the multiple connectors receive the command of DMX signal.
C: Setting the same address code, the lighting change with the same effect;
D: To ensure the transmission of the DMX signal is reliable, when lighting connecting beyond 100M, should increase amplifier to enlarge the DMX signal.
E: The input and output port should meet the requirements, otherwise it will damage lighting.
Harmony's main products:LED Wall washer; Flood light; street lamp;LED module light
Our service:1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into production.
4. Protection of your sales area, ideas of design and all your private information.
5. Best quality and competitive price
Delivery and Packaging3-9workdays for 1000-3000PCS after deposit, 1-3days for sample
Packaging size: 107*21*31cm/6pcs
| Item NO. | RH-W48 |
| Power | 36*1W |
| Size | L1000*W70*H90MM |
| LED chip | Bridgelux,Edison,Epistar |
| Material | Aluminum alloy |
| Light efficiency | 90-120LM/W |
| Protection level | IP65 |
| Power Factor | 0.95 |
| CCT | 2700-7500K |
| Lamp cover | Silver,black, |
| Light color | RGB,W/WW/R/G/B is available |
| Voltage | DC24V / AC85V~265V |
| Beam angle | 30°/45°/60° |
| Life span | 50,000hrs |
| Warranty time | 2-3years |
| Certificate | CE&ROHS&CCC&ISO9001 |
Jiangmen Harmony Ligthting Co., Ltd, an enterprise of a professional LED lighting manufacturer and exporter in China, integrates research, development, production, sales and service of LED lighting products with high efficiency, energy saving, long life, stability, colorful and environment friendly features in Jiangmen of China.
It is located in LED Hi-tech zone of Jiangmen with a production area of 8, 000 square meters.
Since 2006, Harmony Lighting has been sticking to the spirit of continual progress, is committed to the marketing concept of "high qualify for products and good credit for business", and carries out the quality objective of "quality first, outstanding credit, whole-hearted service and customer satisfaction" to expand market and perfect after-sales service system! We engage in offering the most sincere "One-Stop Service", the best quality products, strong technical support and all-around after-sale support.
There is strict control on product quality by skilled IQC, IPQC and FQC in "Harmony Lighting" strictly according to ISO9001 international quality control system operation. Most of our LED lighting products have CE, RoHS, CCC, ISO9001 certificates.
We put forward a principle: "Quality-oriented, Honest Integrity, Continuous Development and Customer Satisfaction". Our excellent reputation for service, delivery and technical support has developed through years of experience in the LED lighting application field.
