LF Series End Light Fiber
LF Series End Light Fiber consists of PMMA fiber core and fluororesin cladding. Fiber diameter ranges from 0.25mm to 3.0mm. With strong end glow performance, LF end light plastic optical fibers are widely used for decorative lighting such as star ceilings, chandeliers, logos, etc.1. Specifications | Model | Fiber diameter
(mm) | Coil length
(m) | Attenuation
(dB/m) |
| LF-250 | 0.25 | 12000 | ≤0.4 |
| LF-500 | 0.5 | 6000 | ≤0.35 |
| LF-750 | 0.75 | 2700 | ≤0.3 |
| LF-1000 | 1.0 | 1500 |
| LF-1500 | 1.5 | 700 |
| LF-2000 | 2.0 | 350 |
| LF-2500 | 2.5 | 250 |
| LF-3000 | 3.0 | 150 |
| LF2-750 | 0.75 | 2700 | ≤0.25 |
| LF2-1000 | 1.0 | 1500 |
| LF2-1500 | 1.5 | 700 |
| LF2-2000 | 2.0 | 350 |
| LF2-2500 | 2.5 | 250 |
| LF2-3000 | 3.0 | 150 |
2. Technical Parameters | Item | Parameters |
| Fiber core material | Polymethyl Methacrylate(PMMA) |
| Cladding material | Fluroresin |
| Refractive Index Type | Step Index |
| Numerical Aperture | 0.5 |
| Tensile Strength | ≥350 N |
| Yield Elongation | ≥4% |
| Minimum Bending Radius | ≥ 10 times of fiber diameter |
| Storage and operating temperature | -55ºC~+70ºC |
| Recommended operating temperature | -40ºC~+70ºC |
| Installation temperature | -20ºC~+70ºC |
3. FeaturesSmooth surface;
Good flexibility;
No ultraviolet or infrared ray transmitted;
Non-conducting, no heat transfer;
Strong end light effect.

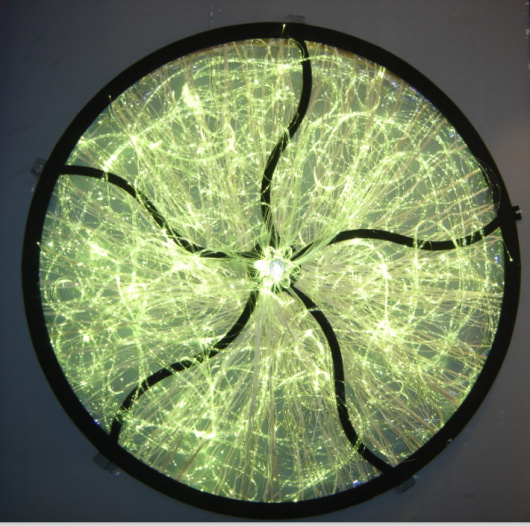

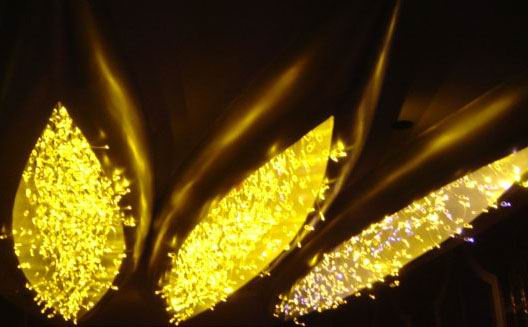

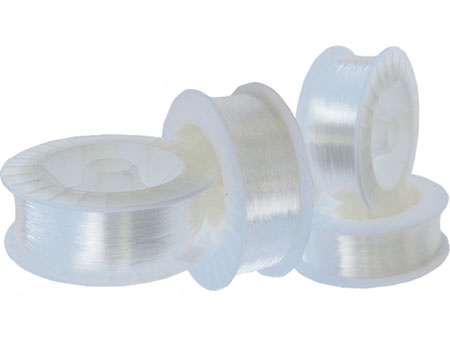

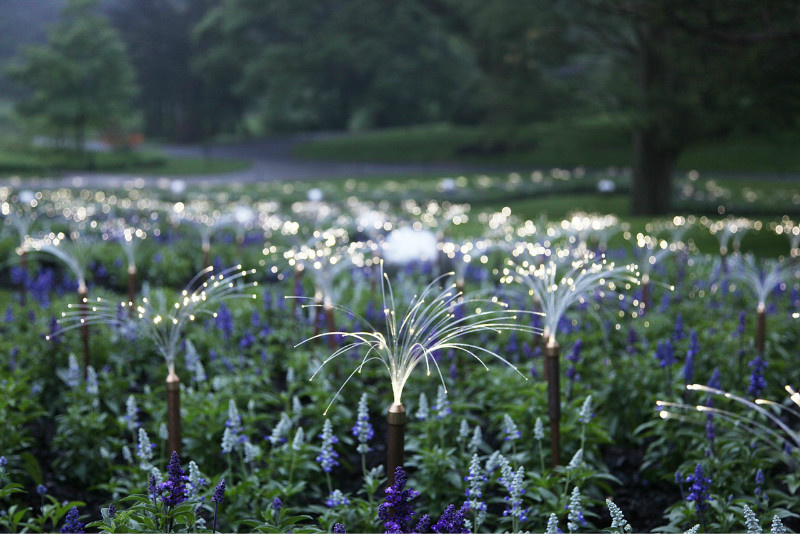

4. ApplicationsUsually used with LED light engines, LF series end glow fibers are well used for star ceiling, fiber optic 3-D mirror, fiber optic chandelier, optical fiber logos and so on.5. Product and Application Pictures
