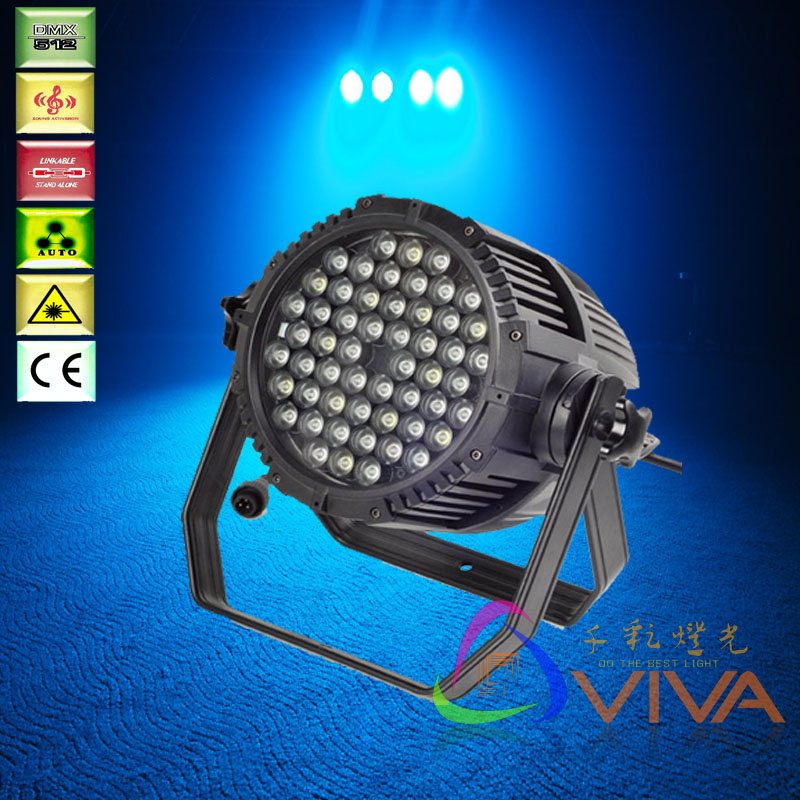

Model: 55x3W RGBWA LED PAR 64
LEDs: 55 x 3 Watt LED's (7 Red, 12 Green, 12 Blue, 12 White, 12 Amber)
Working Position: Any safe working position
Voltage: 120V/240V 50/60Hz
Power Cord Daisy Chain: 16 Fixtures Max.
Power Draw: 200W
Beam Angle: 25 Degrees
Casing: Aluminum Alloy Casing
Net Weight: 6.61lbs/ 3.0Kgs
Dimensions: 11.8" (L) x 8.7" (W) x 13" (H)300 x 220 x 330mm
Colors: RGBWA Color Mixing
DMX Channels: 9 DMX channels
The 55x3W RGBWA LED PAR 64 light is part of a continuing pursuit to create high quality intelligent lighting. This par can is a DMX intelligent, high powered LED par can. This fixture can be used in a stand alone mode or connected in a Master/Slave configuration. The unit can also be controlled via DMX controller. This par can has Manual Color mode, Color Change mode, Color Fade mode, Sound Active mode, Auto mode, and DMX control mode.
Features
RGBWA Color Mixing
Electronic Dimming 0-100%
Master Slave, Sound Active mode, Auto mode, DMX-512 control mode.
9 DMX Channels
ChannelValue Function Instructions
CH1 0-255MASTER DIMMER 0% - 100%
CH2 0-255RED 0% - 100%
CH3 0-255GREEN 0% - 100%
CH4 0-255BLUE 0% - 100%
CH5 0-255WHITE 0% - 100%
CH6 0-255AMBER 0% - 100%
CH7 1-255STROBE, SLOW-FAST
CH8 1-255MASTER FUNCTIONS
CH9 0-255MASTER SPEED CONTROL
