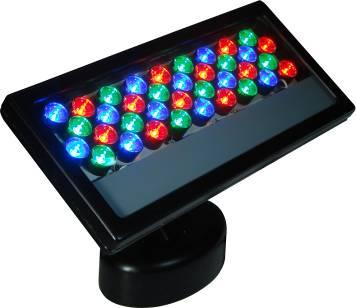

This product is mainly used for decoration and high light in building frame, garden, etc. It is high power LED lighting with RGB colors It can work in independent mode and DMX mode, which can generate various color changing effects, such as flashing, fading, steady, seven color jumping synchronously etc. DMX 256 class gray degree dimmer, DMX programmable (thousands of effects available if many light connected together).
Structure and Specification (as the picture)
LED: 1W LED 36 PCS (12red, 12 green, 12 blue)
Power Consumption 48 W LED Brand:
Beam angle: 15degree
Project distance: 20M
Source life: 50000 hours Control system: DMX 512 control DMX Channel: 3 Channels
Connection: 3 pins XLR-sockets
Connected amount: 32 sets (if more than 32 sets, need to add one DMX repeater; Every repeater can connect 32 sets lights)
Input Voltage: 100V~256VAC Operating Voltage: 12VDC/24VDC LED Current: 320mA+-5% Protction rating: IP65
Operating temperature: Range -18C ~ +40C (0F ~ +104F) Storage temperature: Range 5C ~ +30C (41F ~ + 86F)
Tilt Rotary angle: 175
Pan Rotary angle: 15
Size: L336 X W154 X H190mm
Housing: Aluminum alloy
Weight: 3.6kg+-5%
A. Function
Seven color steady: Seven colors stick with 9 levels brightness adjustment Seven color change: Seven colors change with 9 levels speed adjustment. Seven color fade: Seven colors with 9 levels speed adjustment.
Seven color flash: Seven colors flashing with 9 levels speed adjustment.
B. Control mode
Independent mode: Choose the effects that you need by button on the back of light. DMX mode: International standard DMX512 signal control.
Master slave mode: Many lights work together, slaves work in accord with the master.
Establised in 1996, Guangzhou Golden Light Co., Ltd, also named Guangzhou Lingliang Electronic Co. LTD is a professional electronic and LED series enterprise in researching, developing, manufacturing, sales and project designing.
Our products include LED neon, LED tube, LED street light, LED indoor&ourdoor spotlight, LED bulb, LED ceiling light, LED string light, LED rope, LED flexible strip, LED wall washer, LED grid light, LED flash light etc.
Being a leading company in the industry, we are equipped with advaced equipments, have a well-trained tearm in cludeing full experienced technicians and salesmen, and high quality management term. Modern adminstration model, ferfect marketing and after-sales service system are reliable assurance of the manufacture technology and products quality's continued improvement enterprise speedily development.
We apply ourself to the development of various LED applications and other electronic products, especially in the replacement solution for LED illumination applications.
Welcome OEM, ODM enquiry and visit our factory!
