Features:
1. Light Sources: 1watt High power LED, Epistar or Edison or CREE chips.
2. Size: 72watt L650*W145*H170 mm; 144watt L1250*W145*H170 mm
3. Materials: Aluminum housing, Strengthen glass cover.
4. Designed for proper heat management.
5. IP 66 rated. Electrical protection: Class 1.
6. Easy installation with the assitance of mounting gears and rotating.
Benefits
Basic Sustatinability, super safeguard, energy efficient, extensive lifetime, Despandability.
Application
Linear lighting, Atmospheric interior lighting, Road lighting, Bridge lighting, flood lighting,
Wall washer lighting for bars, hotels, clubs, stages, parks, plazas, commercial building facade, mosques and art galleries.
Physical Details:

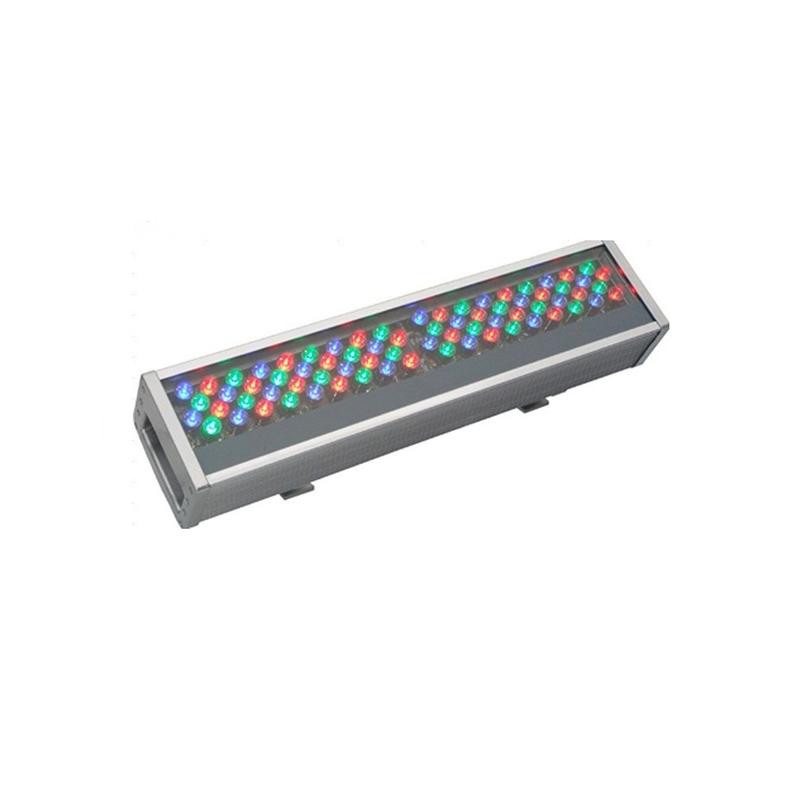

Product Name: LED Wall Washer 72W/ 144W
LED QTY: 72PCS high power LED/ 144PCS high power LED
Materials: Aluminium housing, strengthen glass cover
Product Size: 72watt L650*W145*H170 mm; 144watt L1250*W145*H170 mm
Inner package size (L/W/H): 720*150*180 mm; 1300*150*180 mm
Carton size (L/W/H): 750*465*190mm/ 3PCS 72W; 1350*465*180mm/ 3PCS 144W
Net weight: ≤ 8kgs/ 15kgs
IP Grade: IP65
Project Distance: 25meter/ 45meters
Rotary Angle: 180°
Storage temperature: -30° C~80° C
Operating temperature: -20° C~50° C
Warranty: 2 years
Approvals: CE, RoHS
Optical Details:
Light source: 72PCS / 144PCS 1W high power, Epistar chip/ CREE Chips
Emitting color; Red, yellow, green, blue, white, warm white, RGB color changing
Max. Lumens per lamp:
75 lm/watt (red)
75 lm/watt (yellow)
85 lm/watt (green)
80 lm/watt (blue)
110 lm/watt (white)
95 lm/watt (warm white)
Luminosity: 860 Lux (2m distance)-white 72watt
Color temperature: Warm white 3000-3200K, daylight white 6000-6500K, Commercial white 4000-4500K, RGB (24RED/24GREEN/24BLUE or 48RED/48GREEN/48BLUE)
Beam angle: 30° /60°
CRI: 80~85 (white), 70~75 (warm white), 76~79(commercial white)
Lumen maintenance at 10, 000hrs: 95%
Average life time: 50, 000hrs
Electrical Details:
Input Voltage: AC 85-276V, 50Hz~60Hz
Operating Constant Voltage: DC24V
Max. Power consumption: 74watt/ 146watt
Funtion: Seven Color Jumping, Seven color fading, Seven color flashing, mater/slave mode
Control Mode: Independent mode: Choose the effects that you need by button on the black of lighting; Auto online
DMX Mode: Internation standard DMX*512 Signal control (3*LR)
Ordering Information:
Order NumberDescription
RG2635-72-M Warm white, LED wall washer 72watt, DC24V
RG2635-72-W DaylightWhite, LED wall washer 72watt, DC24V
RG2635-72-C Commercial white, LED wall washer 72watt, DC24V
RG2635-72-R Red, LED wall washer 72watt, DC24V
RG2635-72-G Green, LED wall washer 72watt, DC24V
RG2635-72-B Blue, LED wall washer 72watt, DC24V
RG2635-72-Y Yellow, LED wall washer 72watt, DC24V
RG2635-72-R GBRGB color changing, LED wall washer 72watt, DC24V
RG2635-144-M Warm white, LED wall washer 144watt, DC24V
RG2635-144-W DaylightWhite, LED wall washer 144watt, DC24V
RG2635-144-C Commercial white, LED wall washer 144watt, DC24V
RG2635-144-R Red, LED wall washer 144watt, DC24V
RG2635-144-G Green, LED wall washer 144watt, DC24V
RG2635-144-B Blue, LED wall washer 144watt, DC24V
RG2635-144-Y Yellow, LED wall washer 144watt, DC24V
RG2635-144-R GBRGB color changing, LED wall washer 144watt, DC24V
Hison Optoelectronic Co., Ltd is the LED lighting manufacturer located in Shiyan Town, Shenzhen city of China.
Our side is formed by a set of elite including big name chief executives, technical design and application development engineers, and mainly dedicated in the LED, high-end lighting product development, production, Sales and LED lighting decoration engineering consulting services as business scope. Even though we are a fairly young and up coming company we still maintain traditional values when it comes to our customer relations and services, and through our experience and good relations with our customers we have achieved tremendous growth since our establishment. We constantly make every effort to set ourselves apart from our competition.
We pay much attention to establishing scientific management system, strengthening the construction of team spirit, and keeping innovating in new technology. More than 80 percent of our products are exported to overseas markets. They are up to standards with punctual shipment and are warmly welcomed by our customers. There are our markets in more than 50 countries including USA, Canada, Britain, Spain, Germany, Italy, Australia, Japan and southern East Asia countries.
Our lighting concept is to provide an inexpensive, modern and energy sufficient alternative to our customers while still maintaining standard of quality. Now with our innovative designs, Reliability, quality and customer service Orange opto products are recognized and accepted by our Customers for commercial and residential projects.
The current development of lighting products divided into A) Commercial Lighting; B) Landscape Lighting; C) Indoor Lighting; D) Road Lighting. All of them has started be used in factories, warehouses, commercial, hotel and other places lighting applications. And we will continue to develop new and better products to meet varies demands from our clients all over the world.
Meanwhile, the OEM and ODM cooperation are also warmly welcomed by our company. We would like to take every opportunity to set up the business relationship with you based on mutual benefits.
