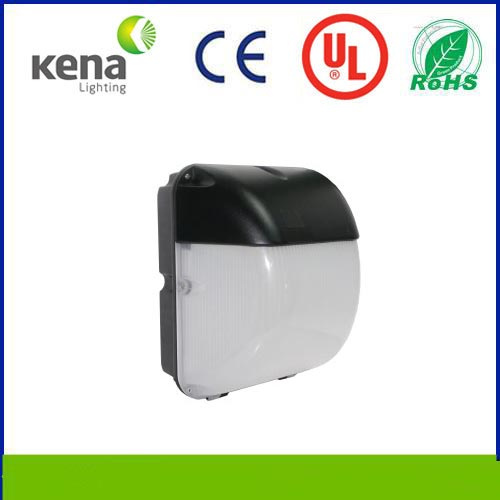

Led wall light for outdoor lighting
General Description
BD-308 LED wall pack is lighting application of new high power LED light source, high purity aluminum reflector, high thermal conductivity aluminum lamp housing and radiator, high transmittance PC cover, high efficiency, constant current and constant voltage source research and development of high photosynthetic efficiency of green lighting products; And traditional wall pack contrast, this product has high efficiency, safety, energy saving, environmental protection, long life, fast response speed, high color rendering index unique advantages. Can be widely applied to the square, city, area and other parts of lighting, is an alternative to traditional, high energy wall pack optimal scheme; And factories, schools, gardens and other indoor and outdoor lighting is the best choice.
Features
1. The lamp adopts new PC cover, which reduces glare effectively.
2. The use of independent intellectual property rights of the high integrated high-power LED light source, compared with the traditional equal brightness wall pack energy-saving more than 65%.
3. The first radiator and lamp case integration design, LED directly to the shell and is tightly connected with the ideal cooling effect, and fully guarantee the LED life.
4. The lamp adopts aluminum alloy die-casting molding, can effective heat dissipation, waterproof, dustproof, waterproof grade standard by IP65.
5. No bad glare and stroboscopic, eliminating the common wall pack undesirable glare caused by the glare, visual fatigue and disturbance.
6. Activated without delay, power that is the normal brightness, without having to wait for a long time, the elimination of the traditional lights start process.
7. Green pollution-free: No lead, mercury or other elements of environmental pollution, no pollution to the environment.
8. Selection of wide voltage (AC100-240V), high efficiency, constant current and constant voltage switching power supply ( can also use the DC/DC switching power supply).
Applications
1. Factory, stadium, docks, toll station and other
2. Cottage, school, park, airports and other
Packing /weight
Lamp package size(W× L× H): 365× 245× 370(mm)
Carton size(W× L× H): 365× 245× 370(mm)
Qty/cartoon: 1pcs
Light weight: 3 Kg
The box packaging weight: 4.2 Kg
Note
1. If the lamp outer cable or cord is damaged, must be performed by qualified professionals for replacement, In order to avoid danger;
2. If it is found that the abnormal lamps work, must first cut off the power input;
3. Please input end of the power supply to the corresponding protection measures, and guarantee the input voltage stability;
4. Please mount the lamp in a dry, ventilation, clean environment, and regular cleaning and maintenance;
5. Lamps have high voltage parts inside, do not disassemble, so as to avoid the electric shock.
Warranty
All of our product's warranty period is 2 years for the built-in constant current power and led, Besides our warranty is based on the right storage, installing, using and maintainance. However, the damages resulted from wrong installing and rule-breaking operations don't belong to the warranty range. As for the quality problem during the warranty period, we would like to maintain and change. While we will charge for the material and labor cost over than the warranty period.
Product Model |
KNBD308-30W |
Led Quantity |
1 PC |
Led Consumption |
30W |
System Consumption |
35W |
Led Luminous Efficiency |
90-120Lm /W |
Led Initial Flux |
3200Lm |
Color Temperature |
2700~7000K Typ:3000K(Note1) |
lamp's Luminous Efficiency |
≥90Lm /W |
Lumen Maintenance |
70%(50000Hrs) |
Color Rendering Index |
≥70 |
Light Design |
LED+ reflectors with twice light distribution |
Driver Working Temperature |
-20 degree~+40 degree |
Storage Temperature |
-30 degree~+65 degree |
IP Rating |
IP54 |
Life-span |
≥50,000Hrs(Note3) |
Lamp Material |
Aluminum alloy |
The color of the lamp shell |
Grey/Black /white |
Certificate |
CE |
Mounting |
Wall mounted |
