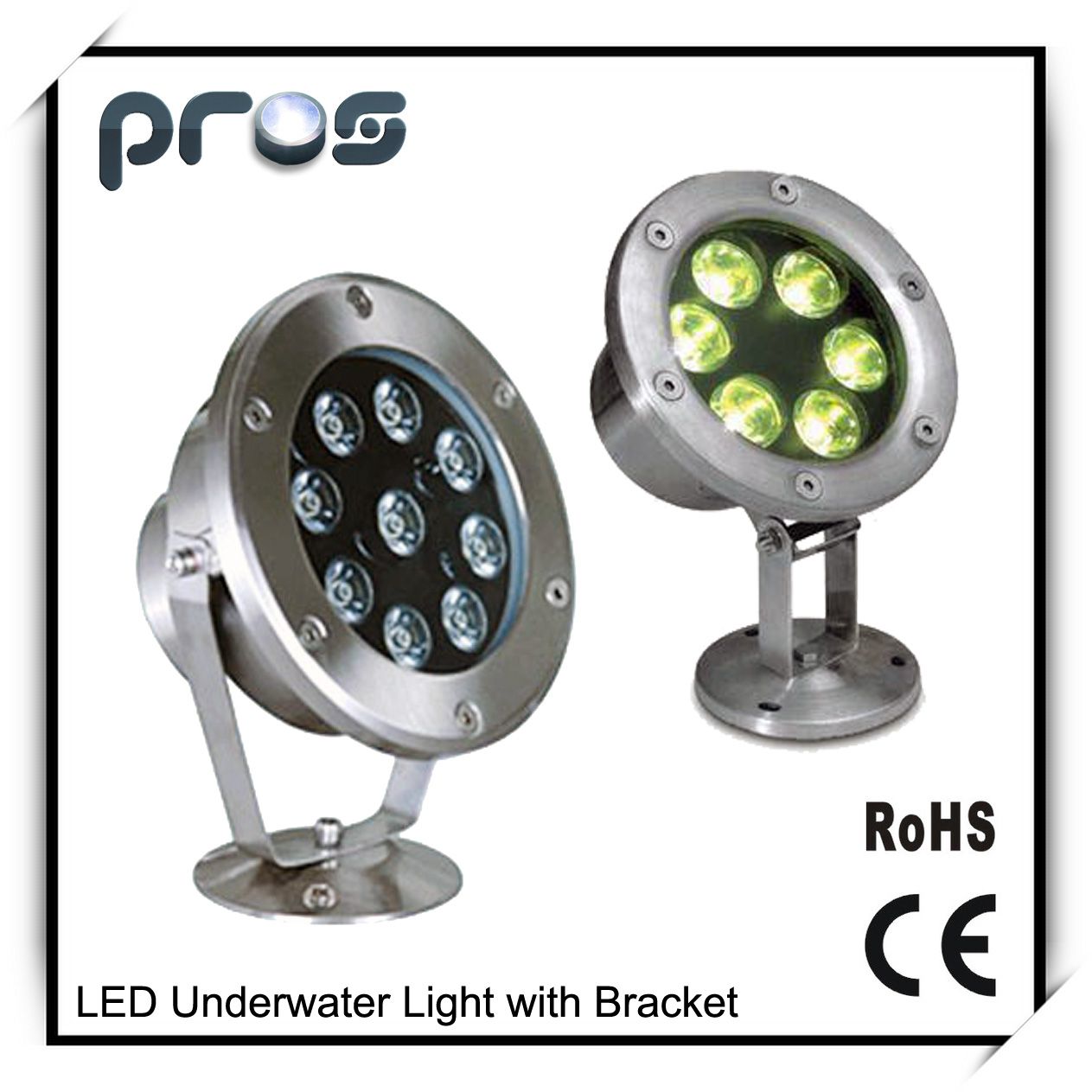

LED underwarter light / led outdoor light / led spot lights
Main Features
1.80% energy saving than traditional lamp
2. No flickering
3. No RF interference
4. No UV radiation
5. Proprietary design for excellent thermal management
7. Surface mounted, easy installation and maintenance free
8. Super bright and low lumen attenuation
9. The light has a fashionable and attractive out-looking which widely
Use in garden, fountain or indoor use
10. IP68 for waterproof use
11. CE, ROHS complicatable
Instruction
1. To protect the shell, pls don't wipe the light with rough and erosive cleanser, and do not rinse it with high-press
Water
2. Make light away from the dissolving chemicals to avoid light shell to be destroied
3. Should use within -25~50degree
4. Pls do not use if the light to be mangle or has insulated problem
5. This light should be installed or repaired by professional person
6. Pls contact supplier for related information when you have further questions
Sloution for Common Fault
1. If the light can not light on, pls. Check whether power on or switch on
2. If the light is on or off continuously, pls. Check whether the power supply is loose or not touch well, whether the
Light's connection is well
Note: If all above points still can not make the light work regularly, pls. Contact with professional person.
Typical Applications
This light could be used for garden, underwater, fountain and other places etc.
Model: |
PL-XT1W6-M/W/RGB |
Size |
85MM |
Voltage: |
12V or 85-265V AC |
Power: |
3W |
Flux: |
550lm |
LED qty.: |
6PCS |
Color temperature: |
2700K-3500K ( Warm White ) |
|
4000K-4500K ( Natural White ) |
|
6000K-7000K ( White ) |
Color: |
Red, Green, Blue, Yellow, White, Warm White, RGB |
Beam angle: |
15degree,30degree, 45degree,60degree |
Protection rank: |
IP68 |
Cover: |
Tempered glass |
Material: |
Aluminum |
Work efficiency: |
>85% |
Life span: |
50.000hrs |
Ambient temperature: |
-40 ~ +55degree |
Net weight: |
0.7kg |
