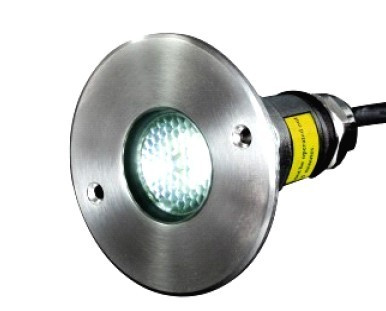

Product Classification: LED swimming pool light
Item No.: LFS-UWE001B-1X1W/3W
Light Source: 1X1w/3W LED
Dimension: Diameter67.5X85mm
Material: Stainless steel
Color: White, Red, Green, Yellow, Blue, RGB,
Beam angle: 30°
IP Rating: IP68
Product details:
1. Housing: Molding shaped stainless steel housing
2. Gasket: EPDM gasket
3. Glass: Step tempered glass, thickness=8mm
4. Loading capacity: Exert force area of Φ10=1130kgs
5. Lens: Optical lens, efficiency≥ 85%
6. Cable gland: IP-68 PG-9 copper and nickel coated
7. PCB: Excellent heat conductivity aluminum, coefficient of heat conductivity≥ 2.0W/mk
8. Driver: Constant current output
Single color LED=1 circuit output,
RGB 3in1 LED=3 circuit output
9. Application environment: Water temperature between -20degree~40degree, less than 1m depth
10. Power cable: Power cable: H07RN-F 2X1.0mm L=3m(for single color)
H05RN-F 4X0.75mm L-3m(for RGB)
11. Mounting sleeve: 013# PVC
Item No. Light source color
LFS-UWE001B-1X1W-24V 1X1W white, red, green, yellow, blue
LFS-UWE001B-1X3W-24V 1X3W white, red, green, yellow, blue
LFS-UWE001B-1X3W-24V-RGB 1X3W RGB(3in1)
