LED swimming pool light
1. Item No.: HX-P56-SMD3014-252; HX-P56-SMD3014-333; HX-P56-SMD3014-441
2. Dimension(mm): 178*114mm
3. Material: Thick glass
4. Color: RGB/White/Green/Blue/Warm White
5. Voltage(v): AC 12
6. LED Qty(PCS): 252pcs/333pcs/441pcs
7. Power(w): 18W/24W/35W
8. Packing: 12PCS per exported carton
9: Carton Size: 37*37*57CM

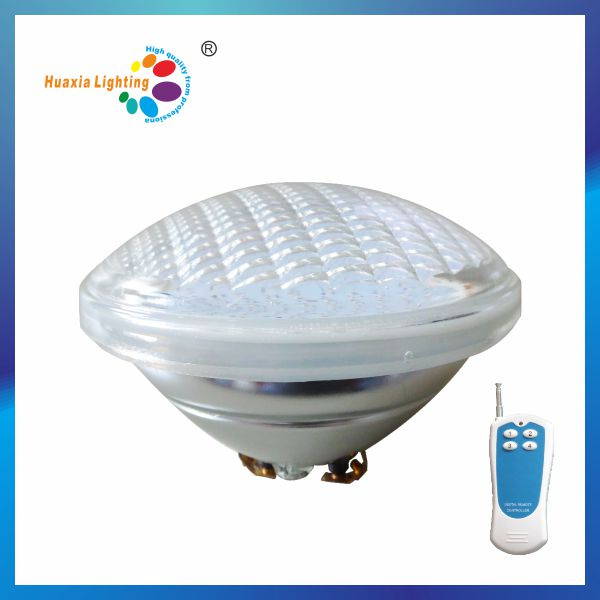

Remote Control RGB LED Swimming Pool Lamp
SMD 3014 18W PAR56 LED POOL LIGHTS
1. Applications:
It is used in swimming pools, fountains, scenic ponds' illumination and decoration.
2. Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.
2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6. The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7. The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.
Installation procedureof the LED swimming pool lights
1. Screw the bracket into the wall
2. Mount the clip of the bracket into the hole of the light
3. Screw the detailed illustrations in the below pictures
Cautions
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test
More wattage abou our LED par56 bulb, LED swimming pool lights, LED pool lights, LED underwater lights
| Item No. | LED Qty (PCS) | Lumen (LM) | Wattage (W) | Voltage (V) | Emitting Color | Material | Dimension (MM) |
| HX-P56-SMD3014-252 | 252 SMD3014 | 1400LM For One Color 600LM For RGB | 18Watt | AC12V/DC12V | ONE COLOR RGB | Thick Glass | 178*114mm |
| HX-P56-SMD3014-333 | 333 SMD3014 | 1800LM For One Color 626LM For RGB | 24Watt | AC12V/DC12V | ONE COLOR RGB | Thick Glass | 178*114mm |
| HX-P56-SMD3014-441 | 441 SMD3014 | 2200LM For One Color 780LM For RGB | 35Watt | AC12V/DC12V | ONE COLOR RGB | Thick Glass | 178*114mm |

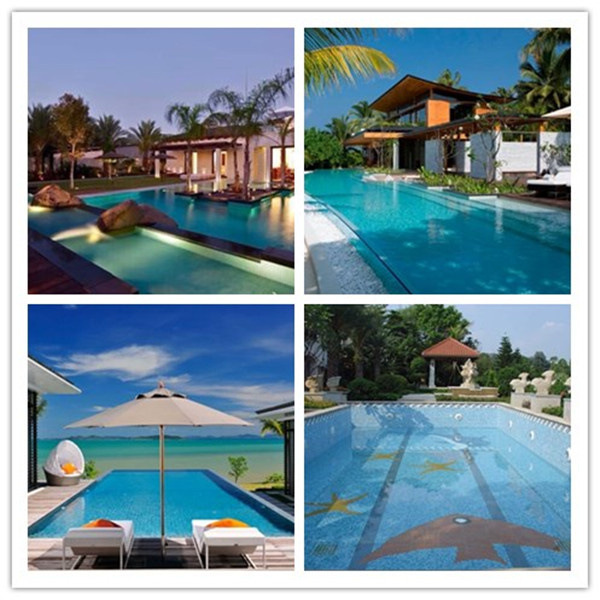

18W LED swimming pool light, LED underwater inground light Engineering cases:
SHENZHEN HUAXIA BRILLIANT LIGHTING TECHNOLOGY Co., Ltd is a professional international high quality LED in the application of science and technology into our products. Our research development, production, and sales are locaated in one of our lamps factory. The company is always committed to improve the LED outdoor landscape lighting applications, main products are LED underwater light, LED down light, LED swimming pool light, LED Underwater Spot Light, LED Fountain Light, LED Garden Light, LED Light, LED Outdoor Lighting...We also can make produce custom made as per client demand.
Our products are unique, super energy-saving, environmental protection, maintenance free and long lifespan, widely used in waterscape lighting, home decoration, urban lighting, advertising and business venues, public buildings, the adornment of the humanities landscape and beautification. Company in line with the innovation professional design, superb production technology, excellent product quality, reasonable price well received by domestic and international customer products are being exported to Europe and America, southeast Asia, Japan, South Korea and Australia and into the Middle East. The company spirit of" Innovation professional design, superb production technology, excellent product quality, and reasonable price.
SHENZHEN HUAXIA BRILLIANT LIGHTING will continue to ascend industry level and create core value, entering the industry leaders mission, in high-end LED to insist on innovation, our commitment and priorities will always be creating new products with good quality that match market demande.
