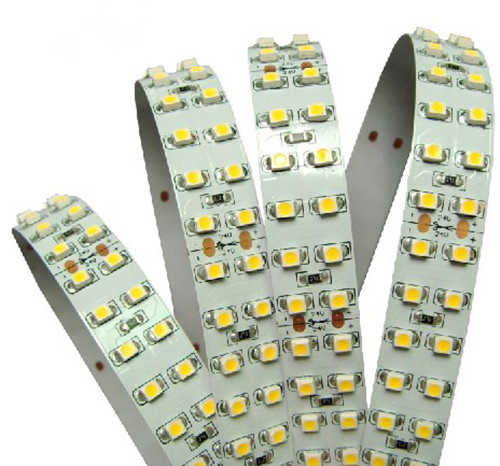

LED Strip Light

1. Chip Brand
We mostly use SANAN LED chips. Part of our products use Epistar and Cree LED chips.
2. Level of quality

we only use 99.9% 1.0μ gold wire, Dowcorning glue and Intematix phosphor powder in our LEDs to make sure the quality is reliable and stable all the time.
We have very stable relationship with our SMD LED supplier.
3.Thickness and quantity of copper layer of strip.
Normally, we use 2.2~2.5 Oz copper. For some super-thin, such as 5mm width FPC, we use 4.2 Oz copper.
Most LED strip in the market probably use 1~2 Oz copper.
We have only 2 PCB suppliers, and we cooperate for quite a long time with nearly no customer complains.
4. Voltage down for 5m strip;
The voltage down for 5m strip is less than 0.2V for our LED strip. Take 60LEDs 5050 per meter LED strip for example, the voltage down is 0.18V for our LED strip.
Moreover, we produce constant-current LED strip for our high-end customers. Take 60LEDs 5050 per meter LED strip for example, the voltage down is 0 for at least 15 meters.
5.Warranty time.
We offer 3 years warranty for IP20 non-waterproof LED strip, and 2 years for IP65, IP66 and IP68 waterproof LED strips.
6.What do you use epoxy or silicon for waterproof type?
For IP65 waterproof, we mostly use PU glue. Silicon glue is also available.
For IP66 we use silicon tube outside.
For IP68 we use silicon tube and puring silicon glue inside.


Hope can receive your positive reply soon .

Part No.	LED quantity/m	color	light (+-10%lm/m)	power (w/m)	voltage(v)
VI-3528-240A-W	240	white	1600	19.2	12
VI-3528-240A-NW	240	Narual white	1560	19.2	12
VI-3528-240A-WW	240	warm white	1240	19.2	12
VI-3528-240A-R	240	red	720	19.2	12
VI-3528-240A-G	240	green	1200	19.2	12
VI-3528-240A-B	240	blue	360	19.2	12
VI-3528-240A-Y	240	yellow	720	19.2	12
VI-3528-240A-W2	240	white	1600	19.2	24
VI-3528-240A-NW2	240	Narual white	1560	19.2	24
VI-3528-240A-WW2	240	warm white	1240	19.2	24
VI-3528-240A-R2	240	red	720	19.2	24
VI-3528-240A-G2	240	green	1200	19.2	24
VI-3528-240A-B2	240	blue	360	19.2	24
VI-3528-240A-Y2	240	yellow	720	19.2	24
