Series G: High Voltage Flexible strip series (AC110V or AC220V)
Power wire: 1.2USD/PCS fixture: 0.06USD/PCS Junction connector: 0.26USD/PCS End cap: 0.05USD/PCS
INSTALL: Take out packaging, check parts all ready. Accessories shall include: Fixture, Junction connector, End cap, Power wire. Use Fxiture to fix the strip in the right place, connect the power to use the strip.
Cut: Can only cut along the circuit board where is marked(the minimum is 1 meter). Then put the end cap, and take enough glue on it.
It can be used when the glue is dry.
Connection: Use the power wire to connect a cut strip, or use junction connector to connect two strips, then take glue on it.
Mark:
1. The above price is yellow circuit board strip price, white circuit board needs to be added 0.09USD/m.
2. The above price is white application of gum, if yellow application of gum need to be added 0.05USD/m.
3. The above price is non-waterproof, silicon waterproof need to be added 0.48USD/m, whole casing solid need to be added 0.96USD/m.
|
Code |
Part NO. |
Voltage |
Color |
LED |
LM/LED |
LEDs/m |
|
S301 |
SL01-3528W60L-220V |
AC110V or AC220V |
COLD WHITE |
SMD3528 |
5-6 |
60 |
|
S302 |
SL01-3528WW60L-220V |
WARM WHITE |
5-6 |
|
S303 |
SL01-3528R60L-220V |
RED |
/ |
|
S304 |
SL01-3528Y60L-220V |
YELLOW |
/ |
|
S305 |
SL01-3528G60L-220V |
GREEN |
/ |
|
S306 |
SL01-3528B60L-220V |
BLUE |
/ |
|
S311 |
SL01-5050W30L-220V |
AC110V or AC220V |
COLD WHITE |
SMD5050 |
18-20 |
30 |
|
S312 |
SL01-5050WW30L-220V |
WARM WHITE |
18-20 |
|
S313 |
SL01-5050R30L-220V |
RED |
/ |
|
S314 |
SL01-5050Y30L-220V |
YELLOW |
/ |
|
S315 |
SL01-5050G30L-220V |
GREEN |
SMD5050 |
/ |
30 |
|
S316 |
SL01-5050B30L-220V |
BLUE |
/ |
|
S317 |
SL01-5050RGB30L-220V |
RGB |
/ |
|
S321 |

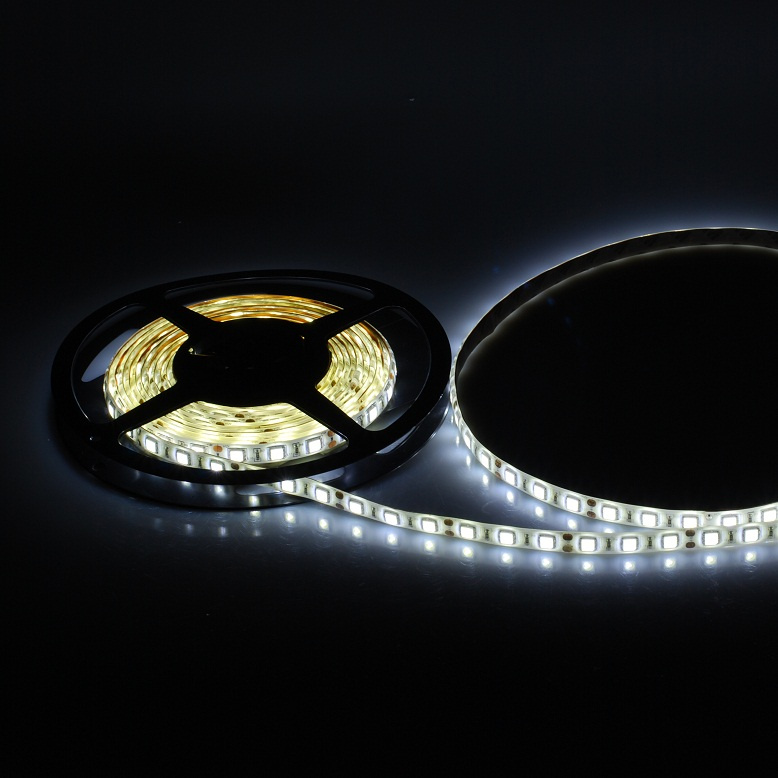

SL01-5050W60L-220V |
AC110V or AC220V |
COLD WHITE |
SMD5050 |
18-20 |
60 |
|
S322 |
SL01-5050WW60L-220V |
WARM WHITE |
18-20 |
|
S323 |
SL01-5050R60L-220V |
RED |
/ |
|
S324 |
SL01-5050Y60L-220V |
YELLOW |
/ |
|
S325 |
SL01-5050G60L-220V |
GREEN |
SMD5050 |
/ |
60 |
|
S326 |
SL01-5050B60L-220V |
BLUE |
/ |
|
S327 |
SL01-5050RGB60L-220V |
RGB |
/ |
