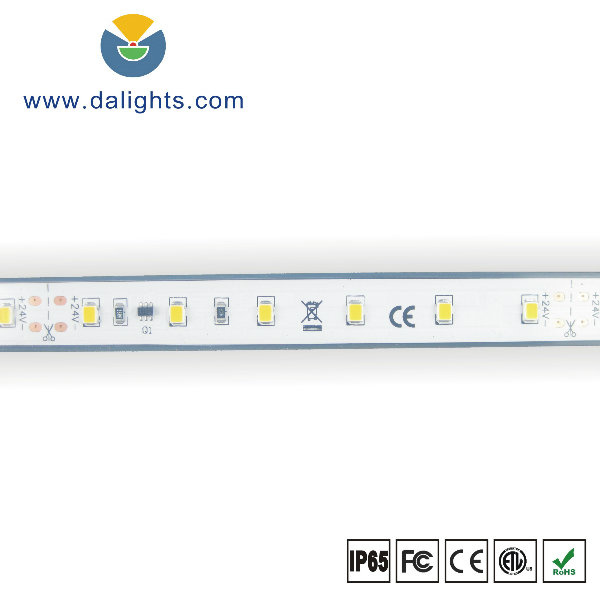

High quality super brightness LED as light source,high illuminous efficacy, good CRI flexible PCB as substrate, easy for bending, good toughness Constant current IC to protect circuit, cuttable for every 50 mm Designed with two solder pan, convenient for connecting no pollution, green light source, energy-saving low light attenuation, longer lifespan to reach 50,000 hrs

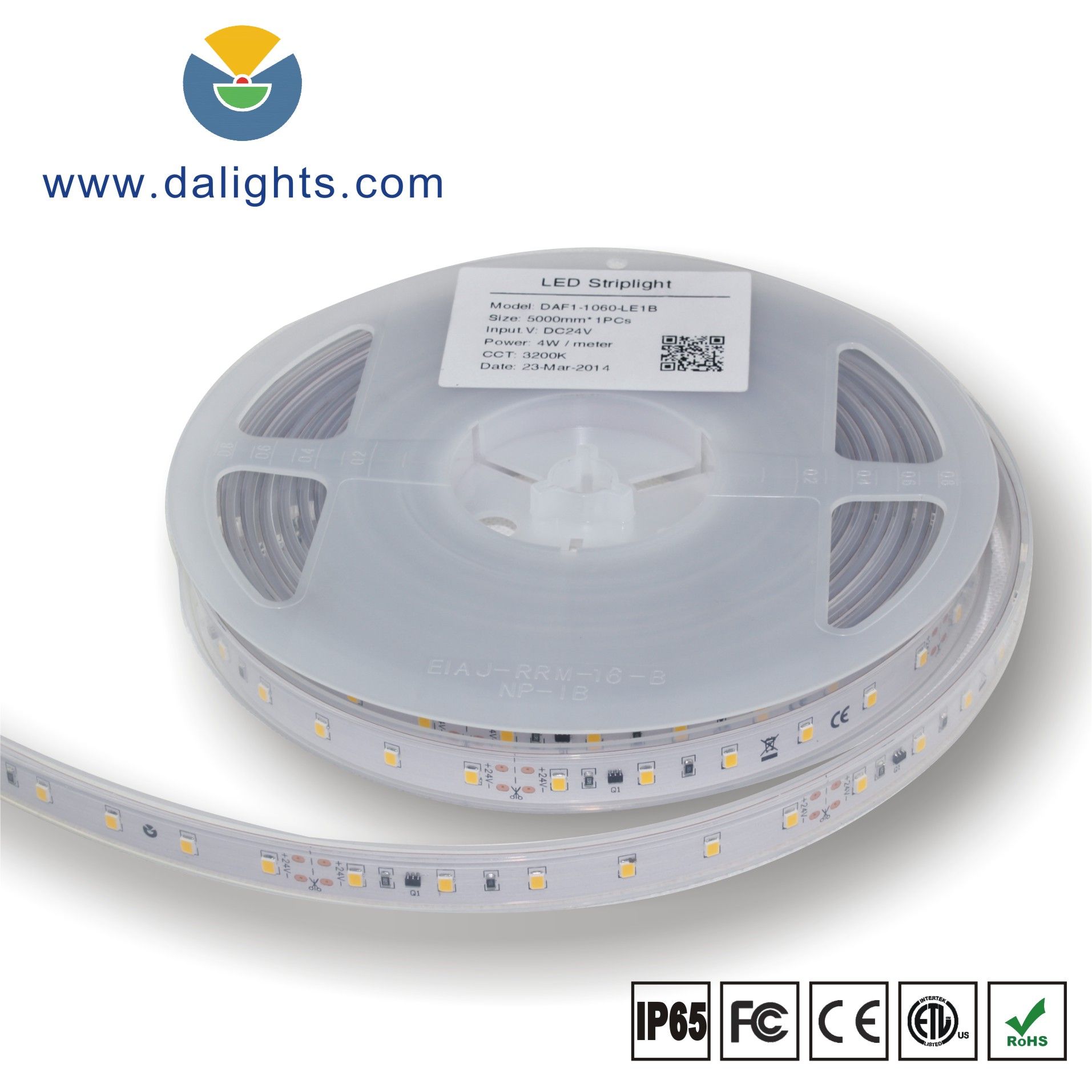

Flex LED is a thin and flexible LED circuit strip, mounted inside a waterproof silicone sleeve. It can be cut every two inches to create the exact length needed. It's low profile allows for a wide variety of cove, millwork, signage, and many other applications.
| Model NO.: DA-S20-1260 |
|
|
|
|
|
|
|
|
| Specifications |
|
|
|
|
| Product name | LED Strip light | LED Strip light | LED Strip light | LED Strip light |
| LED | 2835 | 2835 | 2835 | 2835 |
| Model No. | DA-S20-1260 | DA-S20-1260 | DA-S20-1060 | DA-S205-1060 |
| Input voltage | DC12V & DC24V |
| Power comsumption | 4-12W/m | 4-12W/m | 4-12W/m | 4-12W/m |
| Lamp fitting length(L) | 5000mm/Roll |
| Number of LEDs/meter | 60 LED | 60 LED | 60 LED | 60 LED |
| Luminous Flux(lm)/meter | 1100Lm | 1000Lm | 900Lm | 800Lm |
| Weight / Roll | 180g | 300g | 480g | 610g |
| Beam Angle(degrees) | 120° |
| Environment | Indoors | Outdoors IP65 | Outdoors IP67 | Outdoors IP68 |
| Operating temperature | -25 °C ~ +45 °C(no condensation) |
| Max.sets connectable | 5(5m portion) |
| Material(body) | FPC | FPC+Silicone Tube | FPC+Silicone Tube | FPC+Silicone Tube |
| Accessories | AL Profile | Mounting fixture, AL Profile |
| Option parts | Power supply cable 200mm |
| Color rendering property | Ra80 |
| Light source color | 2400K ~ 6500K | 2400K ~ 6500K | 2800K ~ 6500K | 2800K ~ 6500K |
| Packing | Each roll in one anti-static self-sealed bag, 25 rolls in L530 * W250 * H230mm carton |
DA LIGHTING is a professional manufacturer of high quality LED lighting products with successful history of customer service and technical innovation. It was established in 2011 in Southern China (Shenzhen city, Cantonese province, 10 minutes' drive to the airport), worldwide established key supplier for prestigious architectural and urban lighting demands as well as for challenging unique appearance of cultural venues, luxury hotels, theme parks, cruise ships and clubs.
Our professional R&D team is able to make your unique taste and idea on lighting and color come true with their expertise and skills; Our professional engineers always stay at the forefront of LED technology, they can develop lights and colors that satisfy all your desires; Our customer service department will keep close touch with you all the time.
Our intelligent control system can be controlled easily at home, and this system can also dim the lighting automatically according to the changes of outdoor lighting, so that more energy will be saved.
With the mission to improve the architectural lighting industry, grow with our customers, our professionalism in this industry really creates more value-added services to our valuable customers.
DA LIGHTING - Your project is our challenge to enlighten a dream!
