Aluminum LED Strip
Features:
. 100cm x 2.4cm x 1.0cm
. Rigid bar in waterproof. With Al-profile case. Total 8W.
. White, warm white, red, green, blue, yellow, RGB available
. Rigid bar in waterproof IP65
. With 5mm through-hole 27 LEDs (0.25m), 54 LEDs
. LED Q'ty: Ds (0.5m), 108 LEDs (1m)
. Up to 200+ lumens (0.5m white), and 400+ lumens (1m white)
. Working voltage: 12VDC, 24VDC
. Custom length and LED quantity is available.
Custom length and LED quantity is available.
. LED Bar, LED Light Bar, LED Bar Light frequently used in Under-cabinet lighting, Refrigerated display lighting, Bar and freezer cabinets, Decorative lighting and Cove lighting

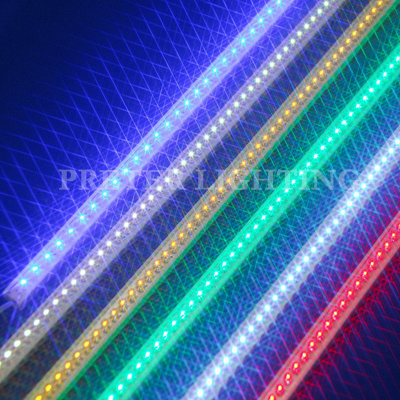

LED bar light, LED bar, led light bar photo:
| 1. Physical Specification: |
| Dimension | 100cm x 2.4cm x 1.0cm |
| Weight | 350g |
| Housing | Aluminum |
| IP | IP65 |
| Working Environment | Indoor and outdoor use |
| 2. Electrical Specification: |
| Item Number | PL-A100W60-5050 |
| Imput Voltage | DC12V |
| Power Consumption | 14W |
| Lighting Source | 5050 SMD LED |
| LED Quantity | 60pcs |
| Operation Temperature | -10~50 degre |
| 3. Optical Specification: |
| Color Temperature | 3000-3500K (WW) | 4000-4500K (CW) | 6000-6500K (PW) |
| Lumen | 1300lm | 1300lm | 1400lm |
| Luminous Efficacy | 90LM/W | 100LM/W | 110lm/W |
| CRI | > 75 | > 75 | > 75 |
| Beam angle | 120 degree |
| Lumen Maintenance | > 97%@1, 000hours
|
