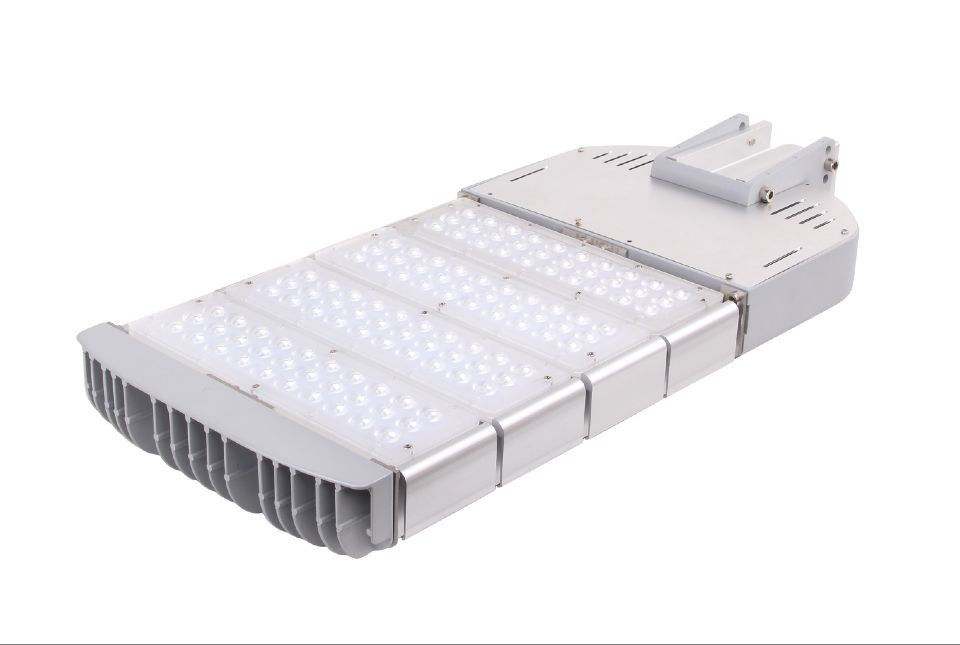

Application Road traffic lighting
Place Road,Square,Park,Bridge ect
Environment Outside
Standards GB7000.1-2007;GB7000.5-2005
Power 120W ± 5%
Input Voltage "36-48V
AC100-265V"
Lumens 11400~13440lm
Efficiency 100~112lm/W
Light extracting rate ≥ 0.90
Section temp. control range T ≤ 40ºC
IP Grade IP 65
Lifespan ≥ 50,000h
LED Qty 120PCS
Brand Bridgelux
Color temp. 3000~6500K
CRI Ra≥70
Lumens(unit) 120~130lm
Theoretical lifetime 70% light: ≥ 50,000h
Circuit scheme constant current LED driver
Drive current 3960mA± 3%
Efficiency ≥92%
Power factor ≥0.95
Body material aluminum alloy
Surface treatment spray paint
The main light distribution optical lens
Light levels Once
Lens material PC, light transmittance over 93%
Product Size(mm) 710*340*180mm
Weight 8.1kg
Installation Casing
Arm size ¢60mm
Trysun International Group Co., Ltd. Was founded in August, 2008, engaging in the manufacture of a series of LED illumination equipment with energy savings and environmental protection in mind.? We got many patents which are authorized by the Intellectual Property Rights Institute of the People's Republic of China.? Our group includes a professional and senior research team and therefore we are able to provide practical and individualized products according to our customer's needs. We have a holding subsidiary company in Shenzhen, Shenzhen Trysun Technology Co., Ltd...Our products are widely applied in various places such as industrial & business fields, school, hospital, military, astronautics enterprise and so on. Currently, our products are being sold to all over the world: Europe, America, Oceania, Africa, Asia, and also they have already enjoyed a wide visibility in domestic market. "To continue to pursue win-win situations with honesty" is our enterprise's governing concept.? We ceaselessly endeavor to develop and use new technology in order to improve ourselves.? Our work ethic is pursuing high quality materials, promoting development with creativity, and seeking highly efficient management standards together with our strict manufacturing guidelines and excellent customer service provides for the customer's every need.
