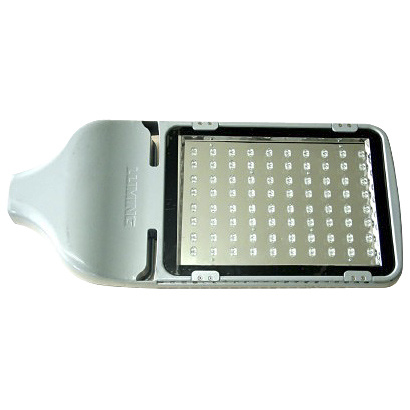

1. Nice and unique appearance, independent upturning cover design of the electrical cabin, easy to installation and adjustment.
2. Adopting die-casting aluminum body with radiation fin, conducting oxidation treatment on the surface to resist corrosion and oxidation, the lamp is solid and durable with good heat radiating and self-cleaning function.
3. Ultra-white tempered glass cover, safe and shatterproof, highly transparent, good aging resistance and UV resistance.
4. Using silicon rubber sealing ring, high temperature and aging resistance. Adopting stainless steel fastener, firm and reliable, permanent corrosion resistance.
5. Professional optical design of middle section of road lighting, and anti-glare light distribution design is available.
6. Adopting professional LED and lens for street lighting, with high emission rate.
7. Adopting the power supply with CE and UL approval, the wide voltage range to be adapted to different power supply requirement in the world, external power supply is easy for maintenance and replacement.
8. Protection function of over-voltage, under-voltage and over-current.
9. Adopting the ultra-high brightness LED of world famous brand, low power consumption, low heat, long service life, good stability, high reliability, high lighting efficiency and good color consistency.
10. The protection grade of light source cabin is IP65 and the power supply cabin is IP44.
|
Model |
LM-DL-1012-56W |
LM-DL-1012-72W |
LM-DL-1012-90W |
|
Dimension |
715X320X110mm |
715X320X110mm |
715X320X110mm |
|
Luminous flux |
5400lm/4800lm |
7200lm/6600lm |
9000lm/8000lm |
|
Luminous efficiency |
96lm/W,88lm/w |
96lm/W,88lm/w |
96lm/W,88lm/w |
|
Light source power |
50W |
65W |
81W |
|
Luminaire power |
56W |
72W |
90W |
|
Input voltage |
AC220V |
AC220V |
AC220V |
|
Frequency range |
50-60Hz |
50-60Hz |
50-60Hz |
|
Power factor |
0.95 |
0.95 |
0.95 |
|
Correlated Color temperature |
3000K, 4000K, 5000K, 5700K |
3000K, 4000K, 5000K, 5700K |
3000K, 4000K, 5000K, 5700K |
|
Color rendering index |
Ra 70 |
Ra 70 |
Ra 70 |
|
Net weight |
12KGS |
12KGS |
12KGS |
|
Model |
LM-DL-1012-110W |
LM-DL-1012-139W |
LM-DL-1012-150W |
LM-DL-1012-165W |
LM-DL-1012-180W |
|
Dimension |
715X320X110mm |
715X320X110mm |
715X320X110mm |
715X320X110mm |
715X320X110mm |
|
Luminous flux |
11000lm/9600lm |
14000lm/12000lm |
15000lm/13000lm |
16000lm/15000lm |
17000lm/16000lm |
|
Luminous efficiency |
96lm/w,88lm/w |
96lm/w,88lm/w |
96lm/w,88lm/w |
96lm/w,88lm/w |
96lm/w,88lm/w |
|
Light source power |
100W |
125W |
135W |
150W |
165W |
|
Luminaire power |
110W |
139W |
150W |
165W |
180W |
|
Input voltage |
AC220V |
AC220V |
AC220V |
AC220V |
AC220V |
|
Frequency range |
50-60Hz |
50-60Hz |
50-60Hz |
50-60Hz |
|
|
Power factor |
0.95 |
0.95 |
0.95 |
0.95 |
|
|
Correlated Color temperature |
3000K,4000K,5000K,5700K |
3000K,4000K,5000K,5700K |
3000K,4000K,5000K,5700K |
3000K,4000K,5000K,5700K |
3000K,4000K,5000K,5700K |
|
Color rendering index |
Ra 70 |
Ra 70 |
Ra 70 |
Ra 70 |
Ra 70 |
|
Net weight |
12KGS |
12.5KGS |
12.5KGS |
12.5KGS |
|
Dalian Luminglight Co., Ltd. is a large-scale high-tech enterprise specialized in research, development, production and marketing of photoluminescent raw materials and the related products. In 1992, the company invented photoluminescent materials, which have won over 40 patents ever since and are exported to over 40 countries and regions worldwide nowadays. Over the past decade, the company has established good relationship with multiple multinational corporations worldwide and formed a vast marketing network home and abroad.
Back in September 11, 2001 when the terrorist attacks happened in the U. S, the photoluminescent materials, which were being widely used inside the now-defunct World Trade Center at that time, played a vital role in evacuating nearly 18, 000 people out of the building, leading to worldwide acclaim for their contribution. The materials are featured with properties of light absorption, saving and emitting and are able to illuminate for consecutive 12 hours and above after only 10 to 20 minutes of light absorption. So the materials have been widely applied to the industries of construction, decoration, transportation, military, firefighting, consumables and handicrafts.
Dalian Luming Optoelectronics Engineering Co., Ltd. Is a big private high-tech enterprise specialised in the research, development, production and installation of the LED display screen and LED lighting products. Now we are fulfilling the task of the National 863 Plan and building National Semiconductor Lighting Industrial Base.
With 15 years development, Luming has successfully built global prduction bases ranging from LED video-wall to LED power lamps. Base on the spirit of the innovation on LED technology, we purchased the Optoelectronics Division of AXT Inc., and built a factory which is engaged in R&D and manufacturing of high-performance semiconductor LED chips with a total investment of 150million US dollars in Dalian. By the implements of global marketing strategy and customers interest oriented, we successfully completed several representative projects home and abroad, such as the LED display application for the 2006 World Cup in Germany and The LED Video system's which will be application for the National Aquatics Centre"Water Cube"for Beijing Olympic Games in 2008.
Luming boasts a leading technology team and more than 30 patents in LEDs. The actual state of affairs, Luming has moved to the top of global value chain, and stand for the level of the LED industry of China.
Our main goal is to cooperate with you and step into light era!
