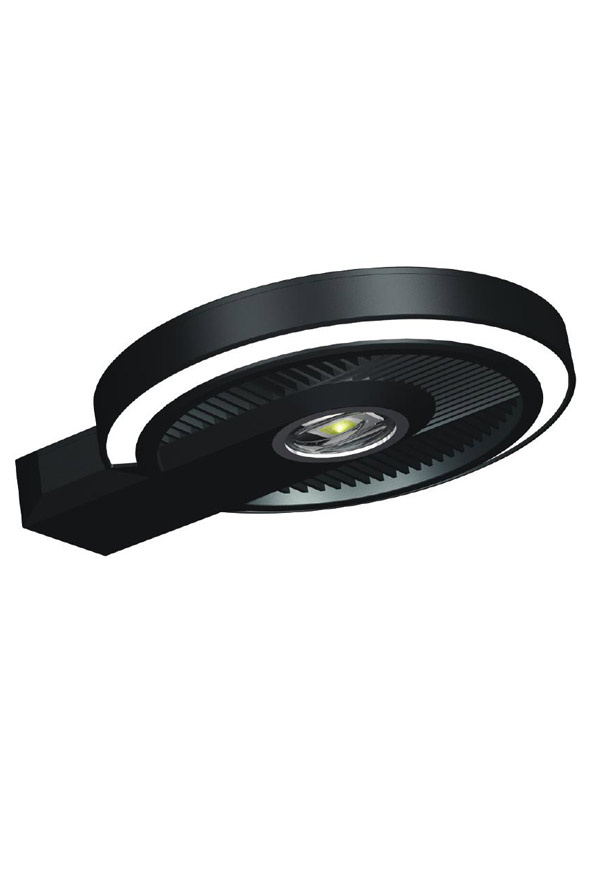

LED street light
Power: 30W
Available choice:
For normal street light use: 100-265V, AC
LED Chip: Bridgelux or US CREE
(Input Voltage): 12V/24V DC, 100-265VAC
(Power Frequency): 50-60Hz
(Power Factor): >0.95
(Driver Efficiency): 90%
(Output Voltage): 20V
(LED Consumption): 30W
(System Consumption): 45W
(LED Luminous Efficiency): >100-110Lm/W
(Correlate Color Temperature): 5500-6000k
(Color Rendering Index): Ra>75
(Working Temperature): -40 +55
(Working Humidity): 10%-90%
(IP rating): IP65
(LED'S Operating Life): >50000H
Warranty: 3 years
|
Name: |
HUOXING-500 |
|
Item |
BEJ003 |
|
Input Voltage |
AC170V-265V |
|
Frequency Range |
50Hz-60Hz |
|
Power Frequency |
>88% |
|
LED Consumption |
40W |
|
System Consumption |
45W |
|
LED Luminous Efficiency |
≥110lm/W |
|
Luminous Flu |
≥3920lm |
|
Color Rendering Index(CRI) |
Ra>70 |
|
Color Temperature |
6000K±300K |
|
Junction temperature(Tj) |
<80 |
|
IP rating |
IP67 |
|
Working Environment Temperature |
:-40~55 |
|
Relative humidity |
10%~90% |
|
Storage Temperature |
10~55 |
|
Operating life |
>30000H |
|
Material |
aluminium |
|
N.W. |
6Kg |
|
Lamp Size |
730*340*88mm |
|
Packing Size |
670*440*180mm |
Jiangsu Beier Lighting Electrical Co., Ltd is specializing in the production of street light, solar light, solar street light, LED street light, garden light, solar garden light, solar lawn light, street light pole, flag pole and so on.
Our company has a professional avant-garde new R&D team, they have the professional knowledge in high-power LED street light, street light, solar street light, landscape light.Our design and manufacturing capabilites are forefront in the industry area."Beier I, ""Beier II", "Beier III" and "Golden Beier" lamps are widely respected by the industry.High-power LED "Armstrong" has its smooth rolling line of lamp production.Beier lighting has officially entered into the area of energy-effcient lighting in the world.
Jiangsu Beier Lighting Electrical Co., Ltd is located in the historical and cultural city of Yangzhou.Beier Lighting is founded in 1993 and currently employs more than 120 staffs.After 20 years' unremiting effort, we have strived to be one of the large-scale enterprises.We have a 1000T hydraulic linkage, 10M bending machine, high-speed slitting machine, hot-DIP galvanizing machine and other large-scale automation equipments.
Our company is repeatedly rated as the contract and keeping promises enterprise.We are also a AAA grade credit enterprise, and have got the ISO9001:2008 international quality system certification, the ISO14001:2004 environment system certification, CCC, and CQC compulsory certification.We are the holders of qualification of street lighting installation of three.Also, the European CE safety certification has been detected by provincial and ministerial level.
Jiangsu Beier Lighting Electrical Co., Ltd strives to be the best outdoor lighting company in the world.
