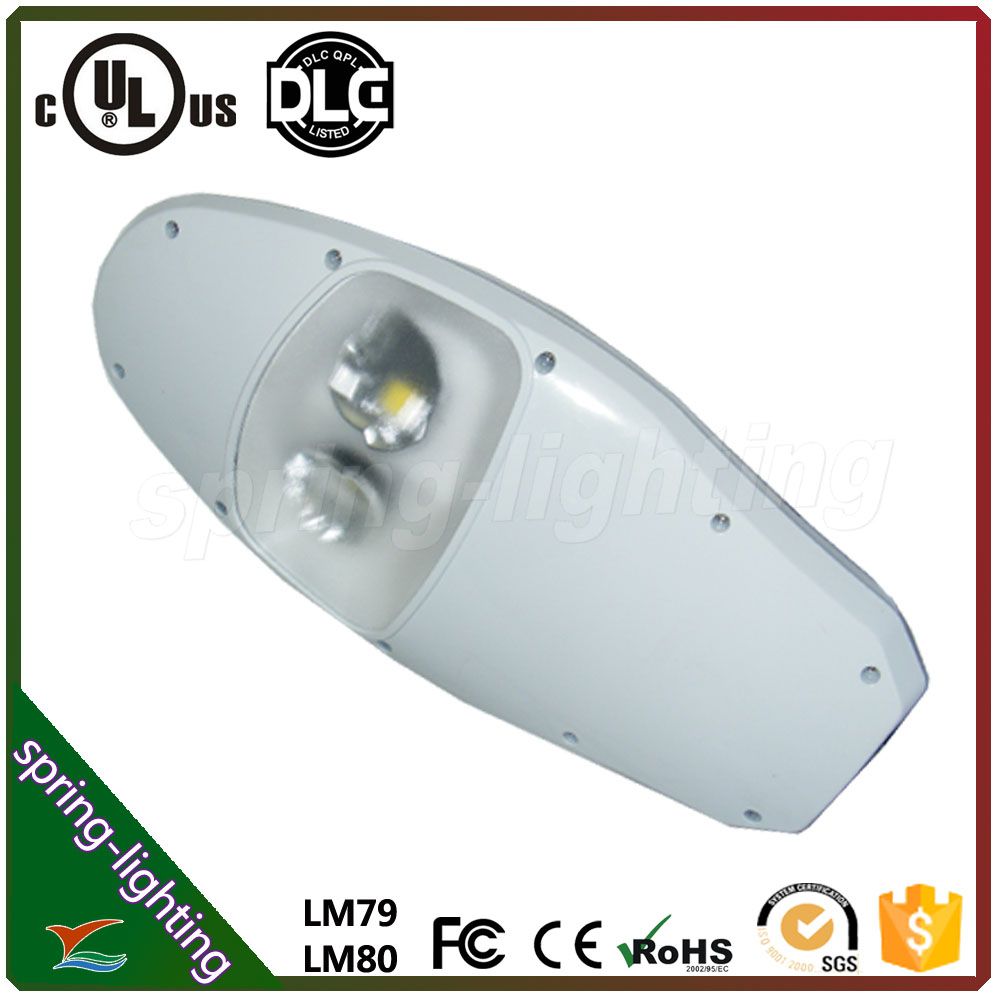

Model: SPL-SL760S140W
Color: Warm White White
Color temperature: 2700-7000K
LEDs: 2
Power (W): 140
Lumen/whole light: 12600
Voltage (V): AC85-265
Life(Y): 5
Chip: Bridge Lux
Product Size: 63*320*800mm
FEATURES:
1. Ultra bright LED as light source, saving energy, light gentle heat, long life.

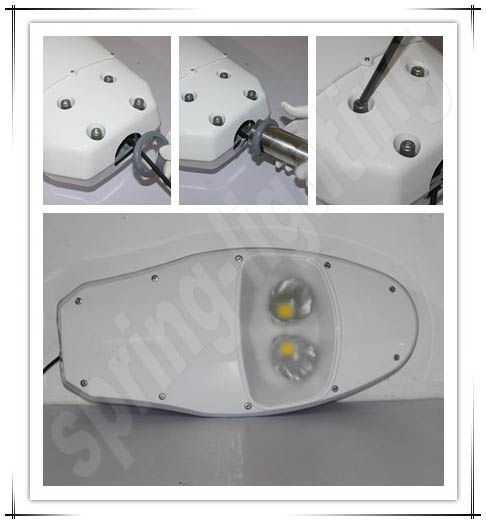

2. The product easy to install, light intensity, distance, light uniformity.
3. The product voltage, lamp can be formulated according to customer requirements
4. Green environmental protection product, ultraviolet and infrared light does not contain, do not produce radiation. Elements of mercury and lead is not harmful, beneficial to recovery and utilization.
| Model number | SPL-SL760S140W |
|
| color rendering index | WW: Ra> 68, PW/CW: Ra> 75 |
| LED consumptions | 38W |
|
| beam angle | 120 |
| System Consumption | 45W |
|
| working voltage | DC30-36V |
| Led initial flux | WW | PW | CW | input voltage | AC85-265V |
| 3116LM | 3230LM | 3154LM |
|
|
| power factor | > 0.95 |
|
| frequency range | 50-60HZ |
| total hamornical distortion | < 9% |
|
| led junction temperature | < 80° C |
| power efficiency | > 87% |
|
| working temperature | -25~45° C |
| light efficiency | > 91% |
|
| IP grade | IP65 |
| installation height | 8M | 10M | 12M | led working life-span | > 50000hrs |
| average illuminance | > 16.2LUX | > 13.3LUX | > 8.2LUX | certification | CE ROHS |
| illuminance area | 28*11.6M | 32*12.5M | 36*14M | packing dimension | 770*220*330MM |
| illminance uniformity | > 0.4 |
|
| net weight/gross weight | 11.5/12kg |
Spring-lighting Electronics Co., Ltd. is a professional manufacturer in R&D, manufacturing, marketing and service of LED lightings. Our main products include LED flood lights, LED streetlights, LED bay lights, LED panel lights, LED tube light, Corn LED bulb etc. All of our LED lights have certified by CE & RoHS, UL, CSA, DLC and etc. We research and process LED aluminum housing and other LED lighting accessories by ourselves as well. From raw material to finished product, every single process occurs within the walls of our own factory. Quality is never compromised.
Our company has gathered a bunch of qualified staff specializing in LED researching and managing, introduced advanced equipment and testing device, which make our products being perfect day by day and reach advanced standard in LED industry. We have passed ISO9001: 2000 quality control system, and the products obtained CE, RoHS, FCC certification. Our products have aging test at least for a continuous 48-72 hours before being released to delivery. Meanwhile, we have our own professional sales team. On these, we have obtained good reputation and serve customer from cover Asia, America, Europe, etc.
We strictly pursue our policy of systematized management, sustained improvement, prompt delivery, customers satisfaction, sincerely offering good service to all of our customers.
Welcome to contact with at any time!
We supply one-stop service for you from mould-design, lamp housing-diecast, power supply-design & production, finished product-assemble & after sale.
