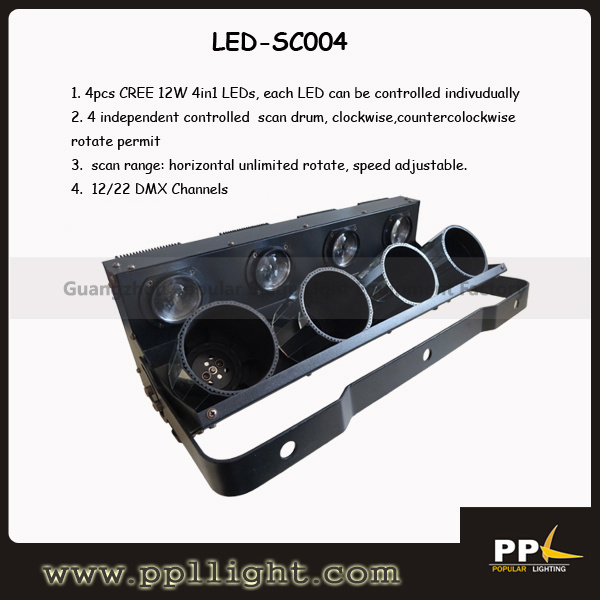

Feature:
1.4in1 RGBW cree leds
2.horizontal unlimited rotate,each drum can rotate individually.
3.can combined into 12 kinds of different effectss,effect adjustable,can strobe ,can dimmer
4.elegant appearance,excellent beam effects
5.Fan cooling Over heat protection
Technical Parameter:
Voltage: AC90V-245V, 50 ~ 60Hz
Power Consumption: 70W
Lamp resource: 4pcsX12w 4in1 Cree LEDS
Life time: 50, 000 hrs
Color: RGBW
Channels: 12CHs /22CHs
User modes: DMX 512, Master/Slave, Auto Run, Sound active
scan range: horizontal unlimited rotate
light body scan:running smoothly,speed adjustable
drum rotation:clockwise,countercolockwise rotate permit
Dimmer: 0-100% linear dimming
Display: LCD display
Protection: Fan cooling Over heat protection
IP range:IP20
Product Color: Black
Size:19*42*14.5cm
N.W: 4.5kg
| 12ch | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| function | motor1 | motor2 | motor3 | motor4 | dimmer | strobe | red dimmer | green dimmer | blue dimmer | white dimmer | effect | effect speed |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 22ch | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| function | motor1 | motor2 | motor3 | motor4 | dimmer | strobe | led1 red dimmer | led1 green dimmer | led1 blue dimmer | led1 white dimmer | led2 red dimmer | led2 green dimmer |
| 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 |
|
|
| led2 blue dimmer | led2 white dimmer | led3 red dimmer | led3 green dimmer | led3 blue dimmer | led3 white dimmer | led4 red dimmer | led4 green dimmer | led4 blue dimmer | led4 white dimmer |
|
|
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
