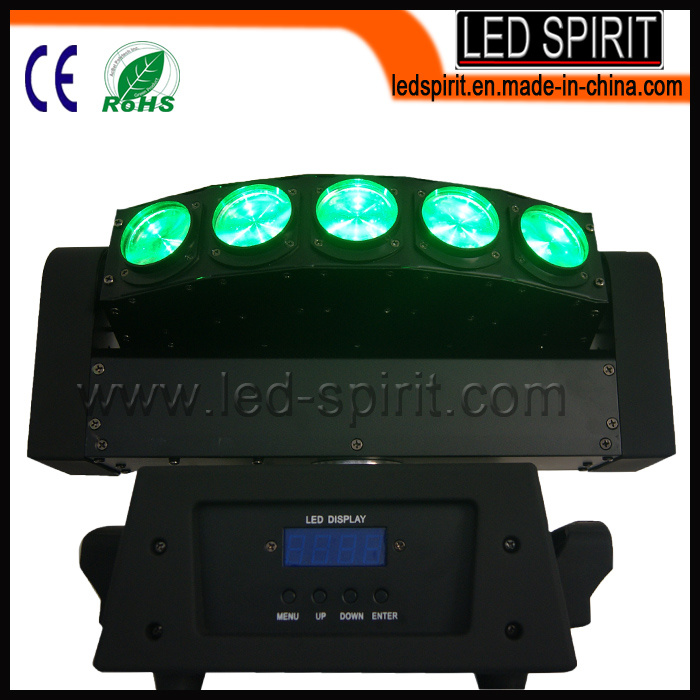

LED Stage Disco Effect Wash Beam Moving Head Light(LED-31B)
Product description:
5pcsx10w RGBW moving beam light adopt USA CREE LED , the fixture have very strong beam effect like a colorful fan dancing in the space . It apply high technical optical system , High efficiency software, Noiseless fan and Excellent heat exchange. The compact size is easy to transportation and installation .
Technical parameter
Model No: LED-31B
Input voltage : AC 110-240V 50HZ/60HZ
Power Consumption : 100W
LED lighting source : 5pcs RGBW 4 in 1 10w led
Control mode : DMX 512, Master -Slave ,Sound Active, Auto Run
Channel : 14 / 30 optional DMX channel
Housing : High -temperature plastic ,molded alloy ( Aluminum )
Waterproof grade : IP20
Beam angle :Liner beam light
Dimming : 0-100% beam can adjuatable
Rotate angle : Pan : 540 degree Tilt : 270 degree
16 bit software
Work Environment : Indoor
OEM:Yes
Warranty :One year
Delivery time :
Sample order , 3-5 working days , formal order , 10-15 working days .
Payment term : T/T , 30% deposit , 70% balance before delivery
Shipping Way :
-All the items will test before dispacth to ensure the item arrived in a good condition.
-We will ship by UPS, USPS, Fedex within 2-3 working days after received the payment. (about 2-5 days arrived to your door)
-Also ship by sea, air.
Application Field:
Professional stage, Theater, Club, , KTV, Bar, profession stage, large-scale performances, theater, studio and places of higher Disco etc.
14 channel
| Number | Function | Description |
| CH 1 | Level motor operation | (0-255)upward adjust forward , downward adjustment inversion. |
| CH 2 | Level motor fine-tuning | (0-255 Level motor 16BIT fine-tuning |
| CH 3 | Vertical motor operation | (0-255)upward adjust forward , downward adjustment inversion. |
| CH 4 | Vertical motor fine-tuning | (0-255)Vertical motor 16BIT fine-tuning |
| CH 5 | Motor operation speed | (0-255)upward adjust speed slow ,0 is the fastest speed . |
| CH 6 | Total dimming | Red,Green,Blue,White total dimming , linear dimming,from dark to bright |
| CH 7 | Strobe | (0-255) From slow to fast |
| CH8 | Red dimming | Red dimming (0-255)Linear dimming,from dark to bright |
| CH 9 | Green dimming | Green dimming ,(0-255)Linear dimming,from dark to bright |
| CH 10 | Blue dimming | Blue dimming ,(0-255)Linear dimming,from dark to bright |
| CH 11 | White dimming | White dimming ,(0-255)Linear dimming,from dark to bright |
| CH12 | Built-in program | the first 9 channels operation (0-60);(251-255) Sound actived ,(246-250)Built-in program 30;(241-245)Built-in program 29;DMX more than 60, each additional 6 corresponding to a built-in program. |
| CH 13 | Speed of built-in program | 0-255upward adjust speed slow ,0 is the fastest speed |
| CH14 | Reset | (0-244)No function ;(245-255)Reset |
30 channel
| Number | Function | Description |
| CH 1 | Level motor operation | (0-255)upward adjust forward , downward adjustment inversion |
| CH2 | Level motor fine-tuning | (0-255)Level motor 16BIT fine-tuning |
| CH3 | Vertical motor operation | (0-255)upward adjust forward , downward adjustment inversion. |
| CH4 | Vertical motor fine-tuning | (0-255)Vertical motor 16BIT fine-tuning |
| CH5 | Speed of motor operation | (0-255)upward adjust speed slow ,0 is the fastest speed . |
| CH6 | Total dimming | Red,Green,Blue,White total dimming , linear dimming,from dark to bright |
| CH7 | Strobe | (0-255) From slow to fast |
| CH8 | 1 st heads Red dimming | Red dimming ,(0-255)Linear dimming,from dark to bright |
| CH9 | 1 st heads Green diming | Green dimming ,(0-255)Linear dimming,from dark to bright |
| CH10 | 1 st heads Blue dimming | Blue dimming ,(0-255)Linear dimming,from dark to bright |
| CH1 | 1 st heads White dimming | White diming ,(0-255)Linear dimming,from dark to bright |
| CH12 | 2 nd heads Red dimming | Red diming ,(0-255)Linear dimming,from dark to bright |
| CH13 | 2 nd heads Green dimming | Green dimming ,(0-255)Linear dimming,from dark to bright |
| CH14 | 2 nd heads Blue diming | Blue diming ,(0-255) Linear dimming,from dark to bright |
| CH15 | 2 nd heads White diming | White dimming ,(0-255) Linear dimming,from dark to bright |
| CH16 | 3 rd heads Red diming | Red dimming ,(0-255)Linear dimming,from dark to bright |
| CH17 | 3 rd heads Green dimming | Green dimming ,(0-255)Linear dimming,from dark to bright |
| CH18 | 3 rd heads Blue dimming | Blue dimming ,(0-255)Linear dimming,from dark to bright |
| CH19 | 3 rd heads White dimming | White dimming ,(0-255)Linear dimming,from dark to bright |
| CH20 | 4 st heads Red dimming | Red dimming ,(0-255)Linear dimming,from dark to bright |
| CH21 | 4 st heads Green dimming | Green dimming ,(0-255)Linear dimming,from dark to bright |
| CH22 | 4 st heads Blue dimming | Blue dimming ,(0-255)Linear dimming,from dark to bright |
| CH23 | 4 st heads White dimming | White dimming ,(0-255)Linear dimming,from dark to bright |
| CH24 | 5 th heads Red dimming | Red dimming ,(0-255)Linear dimming,from dark to bright |
| CH25 | 5 st heads Green dimming | Green dimming ,(0-255)Linear dimming,from dark to bright |
| CH26 | 5 st heads Blue dimming | Blue dimming ,(0-255)Linear dimming,from dark to bright |
| CH27 | 5 st heads White dimming | White dimming ,(0-255)Linear dimming,from dark to bright |
| CH28 | Built-in program | the first 27 channels operation (0-60);(251-255) sound actived ,(246-250)built-in program 30;(241-245)built-in program 29;DMX more than 60, each additional 7 corresponding to a built-in program. |
| CH29 | Speed of built-in program | 0-255 upward adjust speed slow ,0 is the fastest speed |
| CH30 | Reset | (0-244)No function ;(245-255)Reset |
