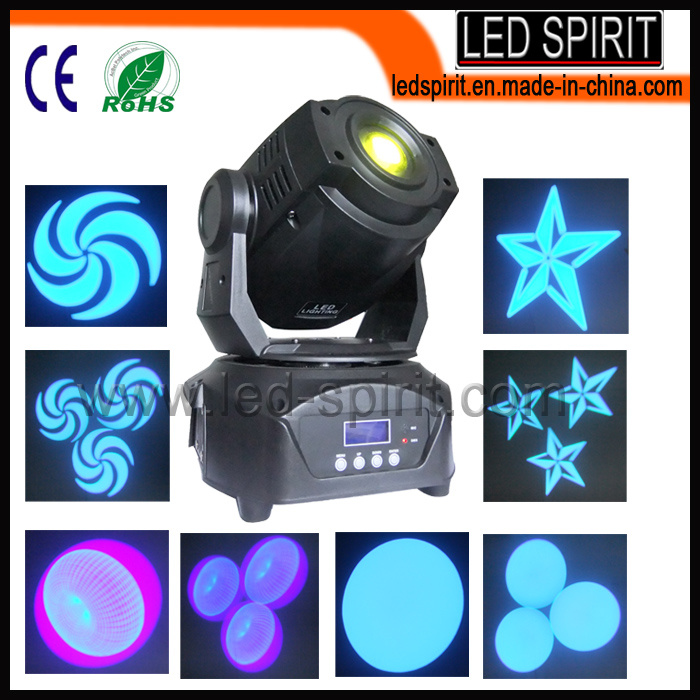

LED Spot Moving Head Gobo Party Stage Effect Professional Light (LED-015)
Product description
60W LED Moving Beam adopted optical systems,the fixture output become much more sharp and strong andAmerican Luminous Led ensure better service life.the move smooth and in high speed without noise. But it is an economic and compact solution for small and medium places installation.
Technical parameters
Model no : LED-015
Input voltage : AC 110-240V 50HZ/60HZ
Led lighting source : 1pc 60w white led
Power consumption :100w
Control Mode: DMX 512 Control, Master-Slave, Sound Active, Auto Run
Channel: 11 / 14ch for optional
Pan/Tilt : 540 degree (16bit ) / 270 degree (16bit )
Beam angle : 25 Degree ( manual zoom )
Display : LCD Display
Color wheel : 7colors +white led , split colors , rainbow effect
Static gobos : 8 metal gobos , slot -n-lock gobo, rainbow effect , gobo effect
Rotating gobo : 7 changeable indexed rotating gobo , gobo shake
Effect wheel : 1pc 3 facet prism ( Adjustable rotating speed and direction )
Shutter : 0-20 hz
Dimmer : Variable electronic dimmer (0-100%)
Focus : variable motorized focus
Brightness : 24,500 Lux@lm , 20,700 Lux@lm
N.W: 6.5KGS
Dimension : 500x 365x 335 mm
Delivery Time : Sample order , 3-5 working days , Formal order , 10-15 working days .
Payment term : T/T ,30% deposit , 70 % balance before delivery
Shipping Way :
-All the items will test before dispacth to ensure the item arrived in a good condition.
-We will ship by UPS, USPS, Fedex within 2-3 working days after received the payment. ( about 2-5 days arrived to your door)
-Also ship by sea, air.
Application Fields :
Professional stage, Theater, Club, , KTV, Bar, profession stage, large-scale performances, theater, studio and places of higher Disco etc.
Welcome you to order our led moving head. We also have other items, suah
As led moving head, led par, led effect light, led wall washer light, led spot light etc.
DMX No | Value | Function |
| CH1 | 0-255 | Pan Movement (0--540 degree ) |
| CH2 | 0-255 | Pan Fine adjustment |
| CH3 | 0-255 | Tilt Movement (0-270 degree ) |
| CH4 | 0-255 | Tilt fine adjustment |
| CH5 | 0-255 | Pan / Tilt Speed from fast to slow |
| CH6 | 0-255 | Dimming 0-100% |
| CH7 | 0-255 | Strobe from slow to fast |
| CH8 | 0-255 | 7Colors change + white +Rainbow effect (Slow to fast ) |
| CH9 | 0-255 | Focus , from near to far |
| CH10 | 0-255 | 6 Gobos +open +open rotating CW and CCW from slow to fast |
| CH11 | 0-255 | Gobo self-rotation |
| CH12 | 0-255 | 8 Gobos+Open +gobo rotating CW and CCW from slow to fast |
| CH13 | 0-255 | ( 0-19) : OFF (20-63) : ON (64-255):Forward rotating from fast to slow ) |
| CH14 | 0-255 | (1-199) : No function ; (200-239 ): Reset after 3 second ; ( 240-255) : No function |
LED Spirit Co., Ltd. is a professional supplier of stage light with several years of experience in researching, developing and selling. As an excellent brand, LED Spirit Co., Ltd. Win high reputation as a professional brand for over many years in overseas market.
LED Spirit Co., Ltd. Has many series of products, such as Moving Head Light Series, LED PAR Light Series, LED Effect Light Series, LED Wash Light Series, LED Strobe Light Series. Our products are suitable for various entertainment place, such as wedding and parties, TV studio, performing arts plaza, theater, Disco club, bars, KTV, the family party and so on.
LED Spirit Co., Ltd. Strictly execute each manufacturing process according to the demands of ISO-9001/QC080000, and make sure to achieve good product quality and service. In order to keep the high competitive in the international market, We actively absorbs and innovates international advanced technology by means of talent accumulation and technological advantages in R&D. Our company constantly develops new products every year.
We look forward to and warmly welcome cooperating with friends all over the world.
