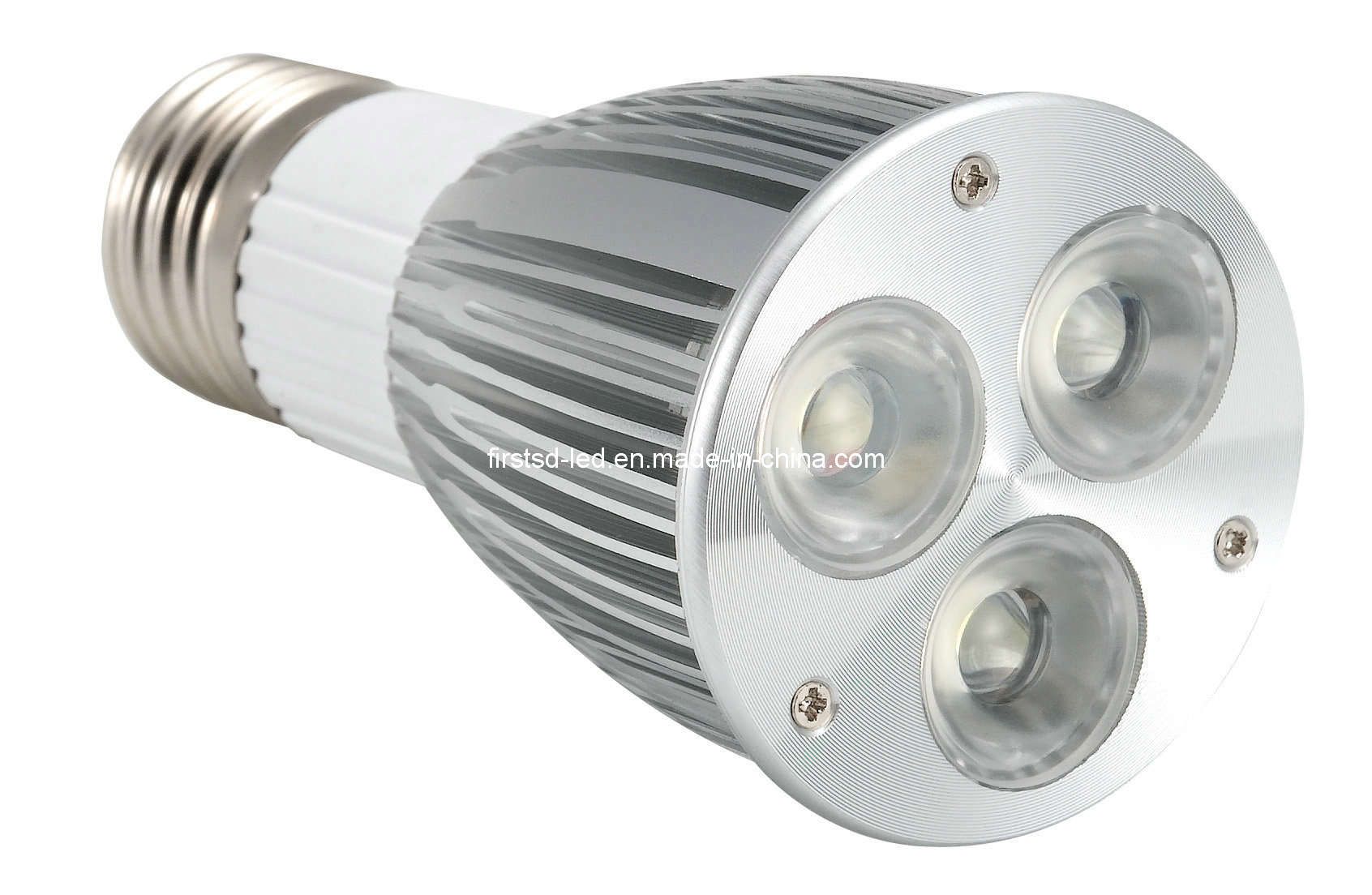

Product name: LED Spot Light
SPECIFICATION:
1. Power Consumption: 3*2W
2. LED Qty & Type: 3PCS of 2W Power LED
3. Base: MR16/GU10/E27
4. Main Material: Section Aluminum House + PMMA Lens
5. Input Voltage: DC12V/AC 85V-265V
6. Light Color: CW/NW/WW/R/G/B/Y (Warm white: 2700-3500K White: 5000-7000K )
7. Lens Angle: 30° 45° 60°
8. Product Size: Φ 50mm× H86mm
Other PARAMETER:
LED Spot Light
1. Operation Temperature: -20~ 50
2. Fixture Surface Temperature: Less than 58
3. Color Rendering Index: 80Ra (at 6000K), 85 Ra (at 2800K)
4. Power Factor: ≥ 0.9
5. Brightness Decay: 3%-5%/ at 1000 hours
6. Luminous Efficiency: >80lm/W
7. Protection Rate: IP54
Product Feature:
LED Spot Light
1. Light transmission rate: 92%
2. Good heat dissipation by unique heat sink design
3. NO UV or IR radiation
4. Proprietary design for excellent thermal management and lumen maintenance.
5. The products are in accordance with CE, RoHS, and FCC testing standards.
6. Lifetime: 50000 hrs(17 years with 8 hours per day)
Application:
LED Spot Light
Direct replacement of halogen GU10/MR16/E27 60W
Illumination and decoration at home and public areas
Suitable for hotel, meeting room, showroom, shop, telephone booth, and more
NOTE: LED Spot Light
1. Read the instruction carefully before use.
2. Pls ensure the label of packing match with the actual produce.
3. Pls make sure the power is off before use. PLS choose the right power supply to match the product directly.
4. Indoor use only.
5. PLS do not put the product as childrens toy.
|
Model |
DSS-05E27WG-L1H2 |
DSS-05E27WG-L1H2 |
DSS-05GU10WG-L1H2 |
DSS-05GU10WG-L1H2 |
DSS-05MR16WG-L112 |
DSS-05MR16WG-L112 |
|
VoltageRange |
AC85-265V |
DC12v |
|
FrequencyRange |
50Hz / 60Hz |
|
LED Qty & Type |
3PCS of 2W Power LED |
|
Power Consumption |
5W |
|
Lighting |
White |
Warm White |
White |
Warm White |
White |
Warm White |
|
Color Temperature |
5500°K ± 10% |
3000°K ± 10% |
5500°K ± 10% |
3000°K ± 10% |
5500°K ± 10% |
3000°K ± 10% |
|
Lumen Output (lm) |
300lm ± 10% |
250lm ± 10% |
300lm ± 10% |
250lm ± 10% |
300lm ± 10% |
250lm ± 10% |
|
Luminous Efficiency |
60lm/W |
50lm/W |
60lm/W |
50lm/W |
60lm/W |
50lm/W |
|
CRI |
75 (Typical) |
80 (Typical) |
75 (Typical) |
80 (Typical) |
75 (Typical) |
80 (Typical) |
|
Beam Angle |
30° |
|
Fixture Material |
Lathe Aluminum+ PMMA Lens |
|
Base |
E27&E26 |
GU10 |
MR16 |
|
Dimension |
50mm(D) ×75mm(H) |
|
Safety Certification |
RoHS CE |
