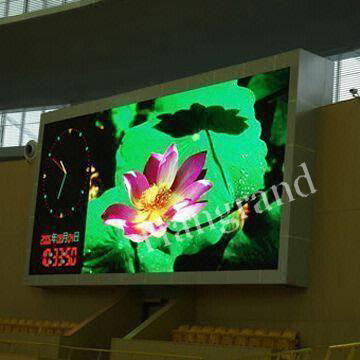

Sports LED Display
Product Features
1. Esay to install and safe with unique hanging architecture in design
2. Super slim aluminum cabinet, 65mm in thickness, 25kg/sqm in weight
3. Professional audio&video processing system can support diversified input and live broadcasting
4. Supply professional audio&video processing system. Support diversified input signal and live broadcast
5. Super wide viewing angle for maximum visual experience(Max 145° )
|
ITEMS |
P16 |
Module |
Pixel Pitch |
16mm |
Pixel Density |
3906dots/m 2 |
Led Lamp Type |
DIP |
Led Configuration |
2R1G1B |
Module Size |
256× 128mm |
Module Resolution |
16× 8 |
Scan Mode |
Static |
Drive Mode |
Constant Current |
Cabinet |
Cabinet Size |
1024× 768mm |
Cabinet Resolution |
64× 48 |
Module Quantity |
24 |
Cabinet Weight |
55kg/m 2 |
Display |
Brightness |
≥ 7500cd/m 2 |
Contrast Ratio |
≥ 4096: 1 |
Viewing Angles(H/V) |
120° /60° |
Min. Viewing Distance |
16m |
Gray Scale |
≥ 12bits/4096level |
Colors |
68.7billion |
Power Supply |
Average Power Consumption |
266w/m 2 |
Working Voltage |
AC 90 to 260V, 50 to 60Hz |
Control System |
Frame Changing Rate |
60 to 85Hz |
Refresh Rate |
600 to 4000Hz |
Brightness Adjustment |
0 to 100% |
Ganma Correction |
(-0.5 to 5.0) |
Color Temperature |
3000 to 9300K |
Brightness Correction |
By Pixel, Module, Cabinet Correction |
Data input Source |
AV, S-Videom, VGI, DVI, HDMI, SDI, DP |
Control Method |
Synchronization with computer |
Data Transmission Distance |
100m by UTP CAT5; 500m by Multi Optic Fiber; 10km by Single Optic Fiber |
Operation Environment |
Windows(2000, XP, Vista, 7) |
Reliabilty |
Storage Temperature |
(-40 to 85)centi degree |
Working Temperature |
(-20 to 50)centi degree |
Working Humility |
10% to 90% |
MTBF |
5000Hrs |
IP Rating |
IP65/IP43(Front& Rear) |
Blind Spot Rate |
≤ 0.01% |
Lifespan |
100, 000Hrs |
