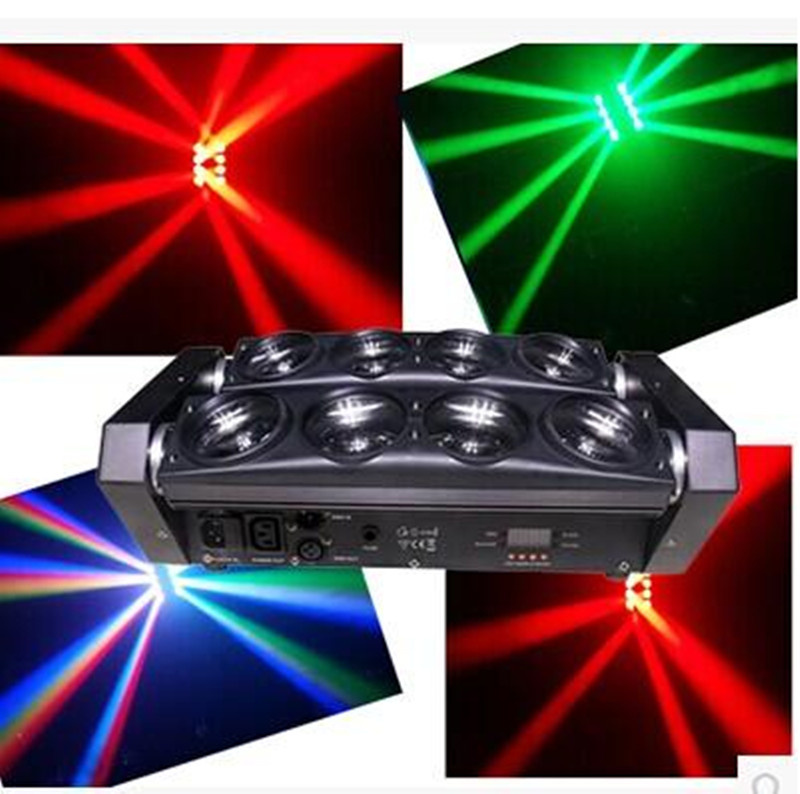

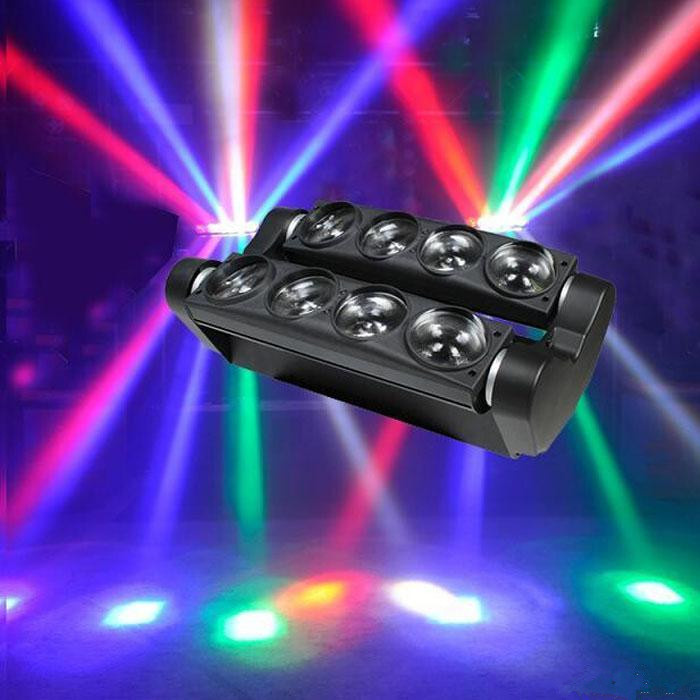

8*15W Spider effect head light led
Video link for reference: http://v.youku.com/v_show/id_XNzUyMjE4NjU2.html
head light led Features:
1. High light output by LEDs, fat beam, fast scan speed, single LED controled.
2. Average life: Over 50000 hours.
3. Easy to install and operate.
4. Wonderful effect, affordable price.
5. Can be shining along with muic.
6.Can play by Auto or DMX controller;
7.Perfect blue LCD display, touch press buttons
8.Applicable for disco, Clubs, KTV, Pub, Bar, Family party etc.
Specifications:
Power:
Input Voltage: AC 100-240V 50/60Hz
Power consumption: 100w (All LEDs @ Full On)
Fuse: 250V/2A
Fixture:
IP Rating: IP20
Cooling Mode: fan
Max Ambient temperature: 45
Housing Color: black
Lamp:
Lamp Brand: 8pcs 15W CREE CM-E RGBW 4in1 LED quad
Average lifespan: 50,000 hours
Control:
DMX Channels: 16/14/18/42
DMX Connector: 3 Pin XLR
Control mode: Master-Slave/DMX/Auto/Sound Activated two independently tilting bars (each with 4 lenses)
Tili scanning: 235'
Displat: LED display
Motor Quantity: 2pcs
Color effects:
Creates exciting beam effects with its quick sweeping beams 8-zone chasing, pulsing and strobing LEDs.
Color: RGBW 4in1
Beam Angle:5.2'
Dimmer: 0-100%
Strobe frequency: 1-23 Hz
Dimension:
Product dimension: 400*234*174 mm
N.W: 4.95 kg
head light led effect:
PS: white color and RGBW 4in1 color can be made with this case
Why choose us -------------------------------------------------------------
1.Well after sale service with factory price.
2.We will reply you as soon as possible when work time & off work time.
3.More discount if you have big quantity.
4.Full test before shipment.
5.One year warranty.
6.100% factory, any small spare part needed is possible.
7.OEM welcome.
About us---------------------------------------------------------------------
We specialize in the stage lighting for over 5 years. We are professional stage lighting golden manufaturer in China. Most of our products pass with CE approval, with very strict quality and control system in our production line.
Feedback---------------------------------------------------------------------
If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year.
Main customer-----------------------------------------------------------------
We do OEM for ADJ, and cooperate with several lighting Industry leader for several years, hope this experience with these old client can help with much.
You can visit www.sparkstagelight.com or www.sparklaser.com to know more about us and our products. Also welcome to call86-20-62838356 for more details.
If you are looking for this item or think it is a chance for your market, please feel free to email us, welcome your warmly inquiry! Thanks for your hard work.
|
|
Take the 16CH for example |
| Channel | Value | Function |
| 1 | 0-255 | M1 motor work, up regulation,forward;down regulation,reverse |
| 2 | 0-255 | M1 motor speed adjustment |
| 3 | 0-255 | Dimmer |
| 4 | 0-255 | Strobe from slow to fast |
| 5 | 0-255 | Red dimmer |
| 6 | 0-255 | Green dimmer |
| 7 | 0-255 | Blue dimmer |
| 8 | 0-255 | White dimmer |
| 9 | 0-255 | M2 motor work, up regulation,forward;down regulation,reverse |
| 10 | 0-255 | M2 motor speed adjustment |
| 11 | 0-255 | Dimmer |
| 12 | 0-255 | Strobe from slow to fast |
| 13 | 0-255 | Red dimmer |
| 14 | 0-255 | Green dimmer |
| 15 | 0-255 | Blue dimmer |
| 16 | 0-255 | White dimmer |
