Single/dual Color LED Display Screens
Feature

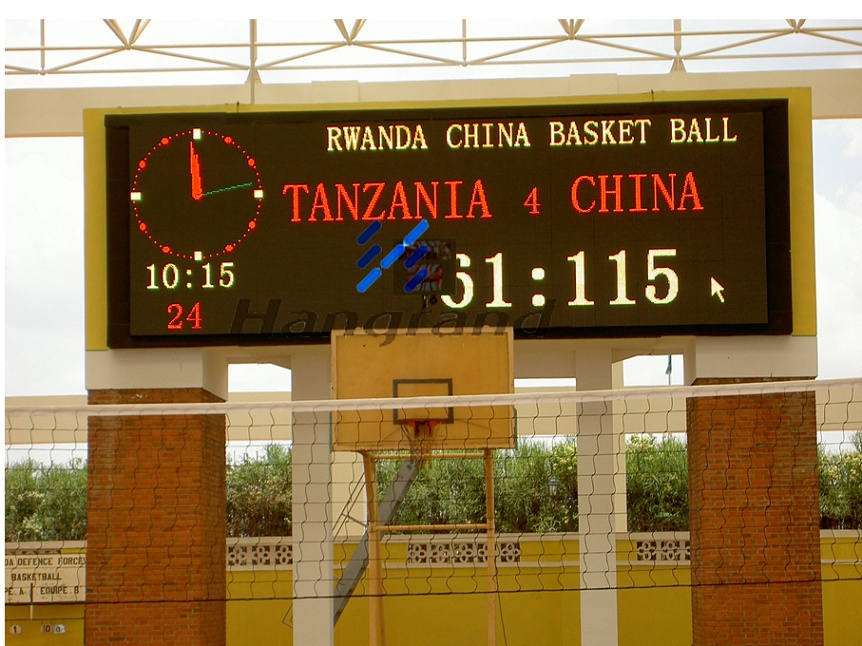

This series with DIP single or double color LED in each panel are used as message board.
For single color LED board, it can display all kinds of text graphics. Besides text, dual color which shows the colors of red, green, and yellow also can display pictures and simple cartoons.
It's widely used in banks, airports, bus stations, etc.
ITEM |
P10 |
P10 |
P16 |
Pixel Pitch |
10mm |
10mm |
16mm |
Pixel Density |
10, 000dots/m2 |
10, 000dots/m2 |
3, 906dots/m2 |
Module Size |
320mm x 160mm |
320mm x 160mm |
256mm x 128mm |
Module Resolution |
32x 16 |
32 x 16 |
16 x 8 |
Display Weight/Thickness |
< 65kg/165mm |
< 65kg/165mm |
< 65kg/165mm |
Pixel Configuration |
1R |
1R1G |
2R1G |
Viewing Angle(H/V) |
110° /50° |
110° /50° |
110° /50° |
Driving Mode |
1/4 scanning constant voltage |
1/4 scanning constant current |
Power Consumption(A/M) |
< 300/400(W/m2) |
< 400/600(W/m2) |
< 400/600(W/m2) |
Working Voltage |
AC220V/110V± 10% |
MTBF |
More than 10, 000 hours |
Life Span |
100, 000 hours |
Working Temperature |
-20° C---+50° |
IP Grade |
Front/Back IP65/IP43 |
Control Method |
P to P Synchronization or asynchronism |
Transmission Distance |
100m(network line)500m(multi-mode fiber)10KM(single-mode fiber) |
