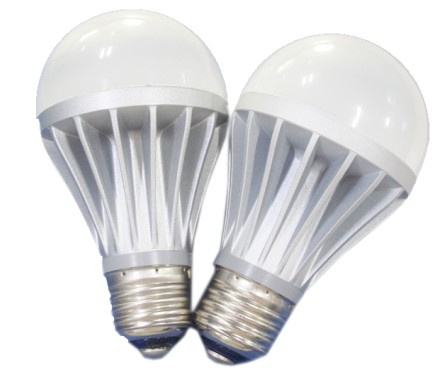

Name: 3W LED bulb
Part NO.: B-E273X1WV4
MECHANICAL SPEC.
Housing: Aluminum
Base type: E27/MR16/GU10
Outer Dimension: Φ50*53mm
Weight: 102g
ELECTRICAL SPEC.
Input Voltage: AC90-AC240V
Number Of LED's: 3 W high power LED
Power Consumptions: 3 W
ENVIRONMENTAL SPEC.
Operational Temp.: -20C- 40° C
Heat sink temperature: <55° C
Average Life: ≥ 50, 000 hours
OPTICAL SPEC.
Beam Angle: 15 / 25 / 30 / 45 / 60 °
Full range Of Colors: Warm white, nature white, cool white
Color Temperature: WW 2800-3300K; CW 5500-6500K;
CRI: 80-85Ra / 80-85 Ra/ 70- 75Ra
LED LUMEN VALUE.
Epistar Brand 1W: Warm white, Cool white,
CERTIFICATE.
CE Certificate
3C Certificate
RoHS
PACKING DETAILS.
1 PCS/ White box or as per client's request
60 Box / Carton
Carton Size: 320x255x400mm
OTHER.
Delivery Time: 15-30 days after confirming payment
Warranty: 3 years
NOTE
The applied ambient temperature must be lower than 40.
Not suitable for poorly ventilated lighting fixtures.
Suitable for dimmers.
FEATURES.
Separated constant current drive designed to ensure that the use of high-power LED security.
Driving circuit can endure high-temperature, avoiding short circuit, it is long-life designed and high reliable.
Comply with EMC testing of safety test.
High-grade aluminum alloy shell, thermal well.
Using acrylic optical lens, and the radiation point of view can be reached (15 -90 degrees celsius), then to form a ray of light, its unique optical technology is better than any other ordinary lens.
The voltage and lamp tap can meet the requirements of the customer.
High-brightness, thermal little, good color, can substitute the original spotlights.
APPLICATIONS. (General lighting)
Apply to hotel, shopping malls etc., can be universally used for decorative lighting of various commercial place.
Apply to office, meeting room, exhibition hall, can be used for interior lighting in the office building.
Apply to residential lighting such as aisle, washroom, corridor, storehouse, etc.
Apply to shop window, painting displaying, artwork performance, etc., can be used for partial close-up lighting.
Apply to cafe, bar etc., can be used for entertainment lighting.
