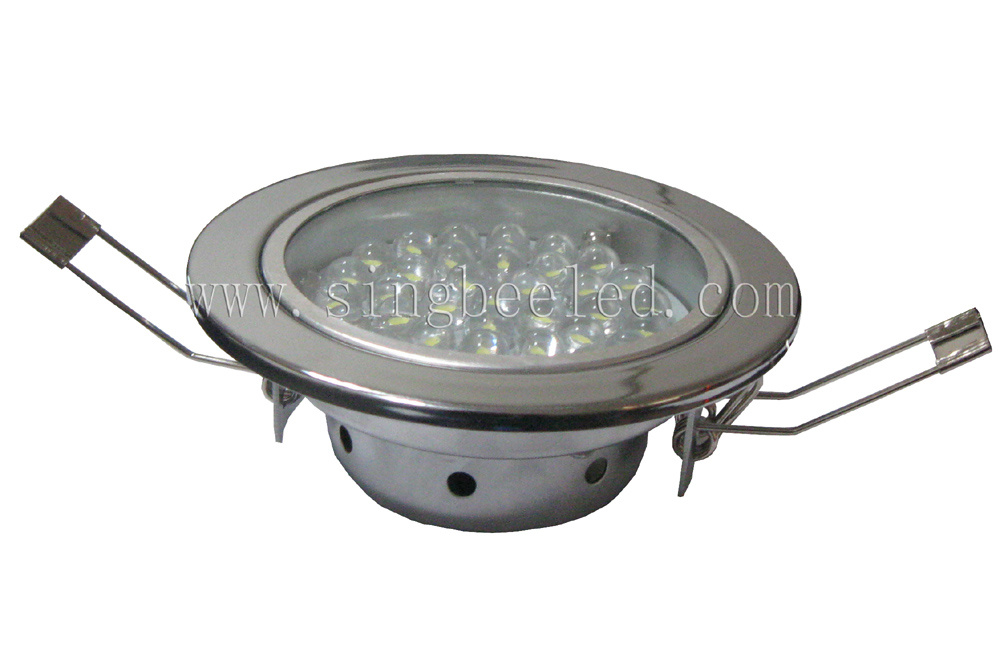

1. Material:
Processed Stainless Steel with Glass Cover
Electroplated with Chromium
For Extra Resistance Against Rust and Other Metal Corrosion Type
2. Standard Specifications:
Beam Angle: 130° Cool White: 5000~6000K 90~260V/AC
3. Optional Parts:
Beam Angle: 80° / 40° Warm White: 3000~4000K 12/24V/DC Frosted Glass
Above may be changed with standard part to fit the specification required for your unique project.
4. Application: Retail Stores, Office, Hospitals, Shopping Mall, Large Indoor Centre.
Warranty: 2 Years
RoHS
|
CE
|
Safty Class11
|
IP 40
|
50Hz~60Hz
|
Protection Class 2
|
Recyclable
|
Item
NO.
|
Input(V/AC)
|
Power(w)
|
Luminous flux(lm)
|
Color temperature(K)
|
Color rendering index(Ra)
|
Size (mm)
|
SP7052
|
90~260
|
3
|
240
|
5000~6000
|
80
|
¢ 110*55mm
(Drilling size ¢ 85mm )
|
SP7048
|
5
|
400
|
¢ 155*70mm
(Drilling size 120mm )
|
SP7005
|
7
|
560
|
¢ 185*70mm
(Drilling size 150mm )
|
SP7049
|
9
|
720
|
¢ 200*70mm
(Drilling size 180mm )
|
SP7050
|
12
|
960
|
¢ 240*70mm
(Drilling size 210mm )
|
18
|
1440
|
