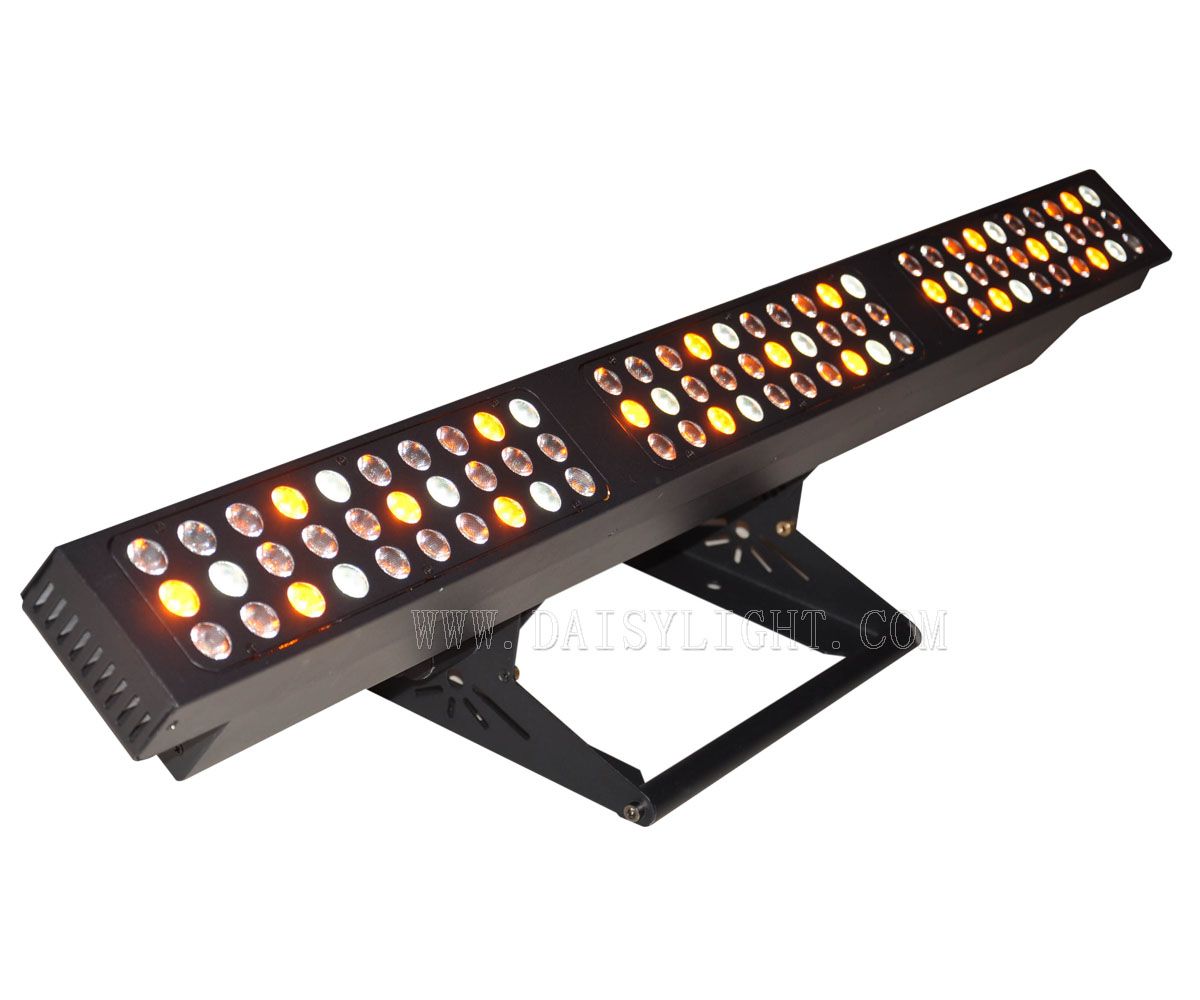

LED Pixel Light(90*3W)
Functions:
Protection rating: IP20, in door use.
Unique cooling mode, light source and control completely separated, nature cooling mode
DMX512 Controller, DMX ID address with 4 digitals display with On/Off function
Master slave/interconnected multi-machine control
Lens degree: 15\25\45degree optional
Using switching power supply to protect the LED to work well
Stobe\gradual change\jumping chang
Technical Specification
Input voltage: AC 100V-240V/50-60Hz
Power Consumption: 200W
Lamp Type: High Power LED(3W)
Lamp Spec: R(18PCS), G(18PCS), B(18PCS), A(18PCS), W(18PCS)
LED span: 50000~100000 hours
LED PWM dimming frequency: >400Hz
Control Signal: DMX512, Master/Slave
Control mode: Stand alone/ DMX/ master and slaver
Channel: 3CH\4CH\5CH\9CH\15CH\19CH
Color effect: R\G\B, A, W mixing
Function Effect: Dimmer, strobe, eotic, gradual change
Beam Angle: 15, 25, 45degree
Cooling mode: Natural Convection
Anti-electricity intension: 1.5KV
Insulation Resistance: >2MΩ
Size: : 1000*275*236.5mm
Net Weight: 10KG
