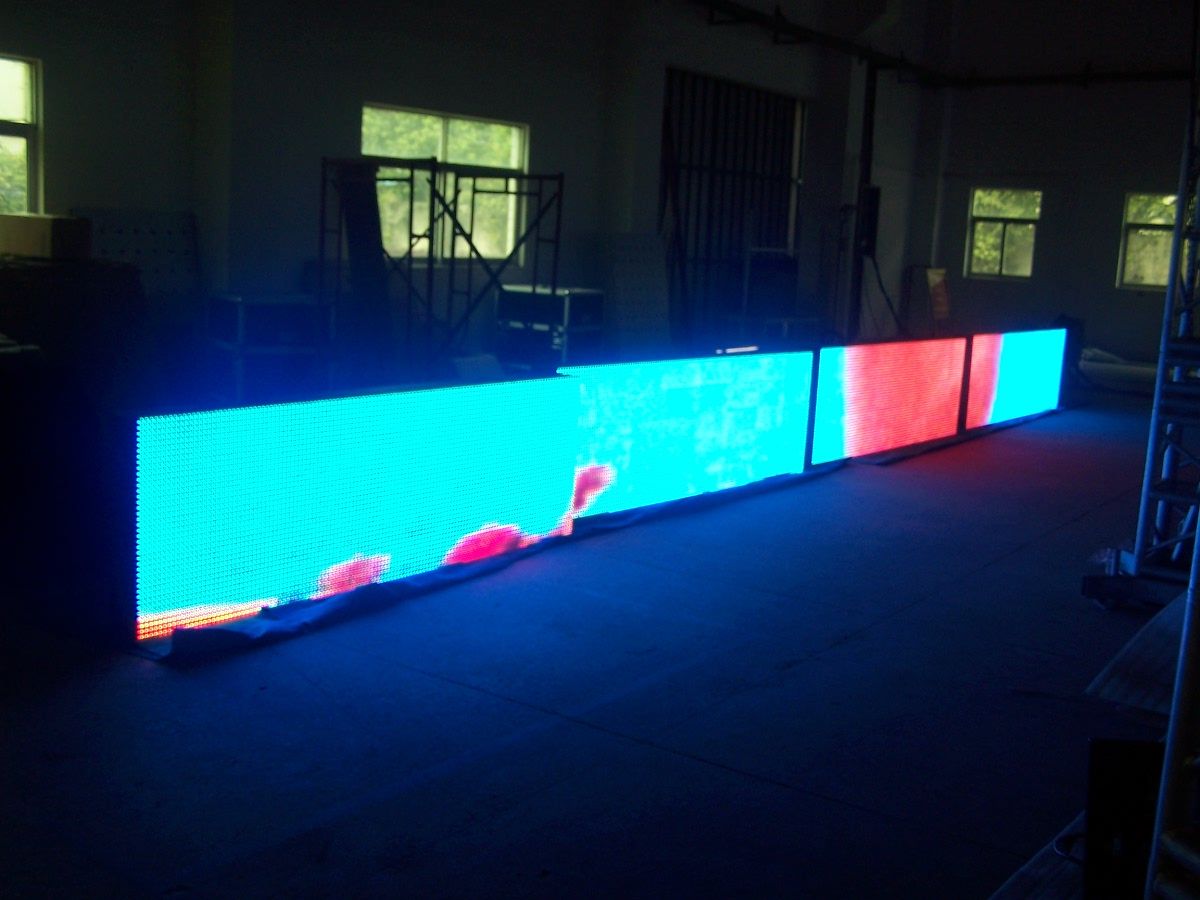

LED Perimeter Display P20
| Price: |
US $ 1/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |
PH20mm outdoor full-color LED display
No. Type Tri-Color
1 Pixel Configuration 1R+1G+1B
2 Cabinet Resolution 64pixels(H)× 48pixels(W)
3 Cabinet Dimension: 1280mm(H)× 960mm(W)× 160mm(L)
4 Power Consumption(average) 400W/ m2
5 Power Consumption(max) 650 w/ m2
6 Cabinet Weight 55 kg
7 Density: 2500pixels/m2
8 Brightness >7000 nits
9 Color: 16.7 billion
10 Brightness Control Hand/auto regulation
11 Viewing Distance 20-100m
12 Gray Scale Rectification r rectification
13 Picture Regulation Contrast/Chroma regulation/Module brightness regulation
14 Drive Mode: Cconstant current drive, static scan
15 Refresh Rate: 1080 Hz
16 Control Mode Virtual Display; Synchronization control
17 Video Interface S-Video, RGB, VGA, DVI etc.
18 Display Mode 1024× 768
19 Life Time: 100, 000 hours
20 Mean Time To Failure >10, 000 hours
21 Blind LED: None
22 Temperature -40 degree~+85 degree
23 Relative Humidity 10%-95%RH
24 Display Flatness The display: ± 1mm Gap between modules: 1mm
25 Display Information Text, Video and Picture etc.
26 Voltage 220V± 10%\380V± 10%
27 Communication Distance <20km
P20 Perimeter LED Screen Cabinet
|
LED Assembly Type
|
DIP546
|
Cabinet dimension
|
1280mmx960mm
(Optional)
|
Refresh frequency
|
480Hz
|
Cabinet resolution
|
Real:64x48
Virtual:128x96
|
Horizontal View Angle
|
>110Degree
|
Cabinet weight
|
80Kg/sqm
|
Working Environment
|
Temp:-20~60 Humidity:10%~90%
|
Pixel Pitch
|
20mm
|
Working Voltage
|
AC:100V~120V AC:220~240V
|
Module Size
|
320x160mm
|
Lifetime
|
100,000Hours
|
Module resolution
|
16x8
|
Gray Scale
|
Display color:16.7M,12bit/color
|
Dot density
|
Real:2500dotssqm Virtual:10000dots/sqm
|
Color Display
|
1.07Billion
|
Pixel configuration
|
2R,1G,1B
|
Brightness
|
≥6500nit
|
The optimum view distance
|
20m
|
MTBF
|
0.00001
|
Drive mode
|
Constant current,Static Scan
|
IP
|
IP65
|
Max Power Consumption
|
950W/sqm
|
Warranty
|
2 year
|
LED Parameter
|
R:d(625-630nm) R:IV(600-720mcd)
|
G:d(522.5-525nm) G:IV(2000-2200mcd)
|
B:d(467.5-470nm
|
SunYEX P16 Perimeter LED Screen
|
LED Assembly Type
|
DIP546
|
Cabinet dimension
|
1024mmx1024mm
(Optional)
|
Refresh frequency
|
480Hz
|
Cabinet resolution
|
Real:64x64
Virtual:128x128
|
Horizontal View Angle
|
>110Degree
|
Cabinet weight
|
80Kg/sqm
|
Working Environment
|
Temp:-20~60, Humidity:10%~90%
|
Pixel Pitch
|
16mm
|
Working Voltage
|
AC:100V~120V AC:220~240V
|
Module Size
|
256x128mm
|
Lifetime
|
100,000Hours
|
Module resolution
|
16x8
|
Gray Scale
|
Display color:16.7M,12bit/colo
|
Dot density
|
Real:3906dots/sqm Virtual:15624dots/sqm
|
Color Display
|
1.07Billion
|
Pixel configuration
|
2R,1G,1B
|
Brightness
|
≥7000nit
|
The optimum view distance
|
16m
|
MTBF
|
0.00001
|
Drive mode
|
Constant current,Static Scan
|
IP
|
IP65
|
Max Power Consumption
|
1150W/sqm
|
Warranty
|
2 year
|
LED Parameter
|
R:d(625-630nm) R:IV(600-720mcd)
|
G:d(522.5-525nm) G:IV(2000-2200mcd)
|
B:d(467.5-470nm) B:IV(350-400mcd)
|
| Prod Model: |
SY-OF20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
RoHS |
| Pixel Density: |
3906 |
| Average Power Consumption: |
800W |
