1) Color Temperature: Warm White: 2, 700 ~3, 500K, Cool White: 5, 000~6, 500K
2) Beam Angle: 15, 25, 45 degrees
3) CRI: Ra> 80
4) Power Factor: >0.9
5) Dimmability: Compatible with TRIAC dimmers on market such as Lutron, Leviton, Legrand, Osram, and GE etc. Dimming range is from 5~100% and very stable
6) LED Type: CREE XPE
7) Life Span: 50, 000 hours
8) Warranty: 2 years
9) Certification: CE, RoHS
10) For each item, there is a lower price version with non dimmable and/or CREE XPC LED
11) Housing Color Option: Natural aluminum and anodized white or black.
Characteristic

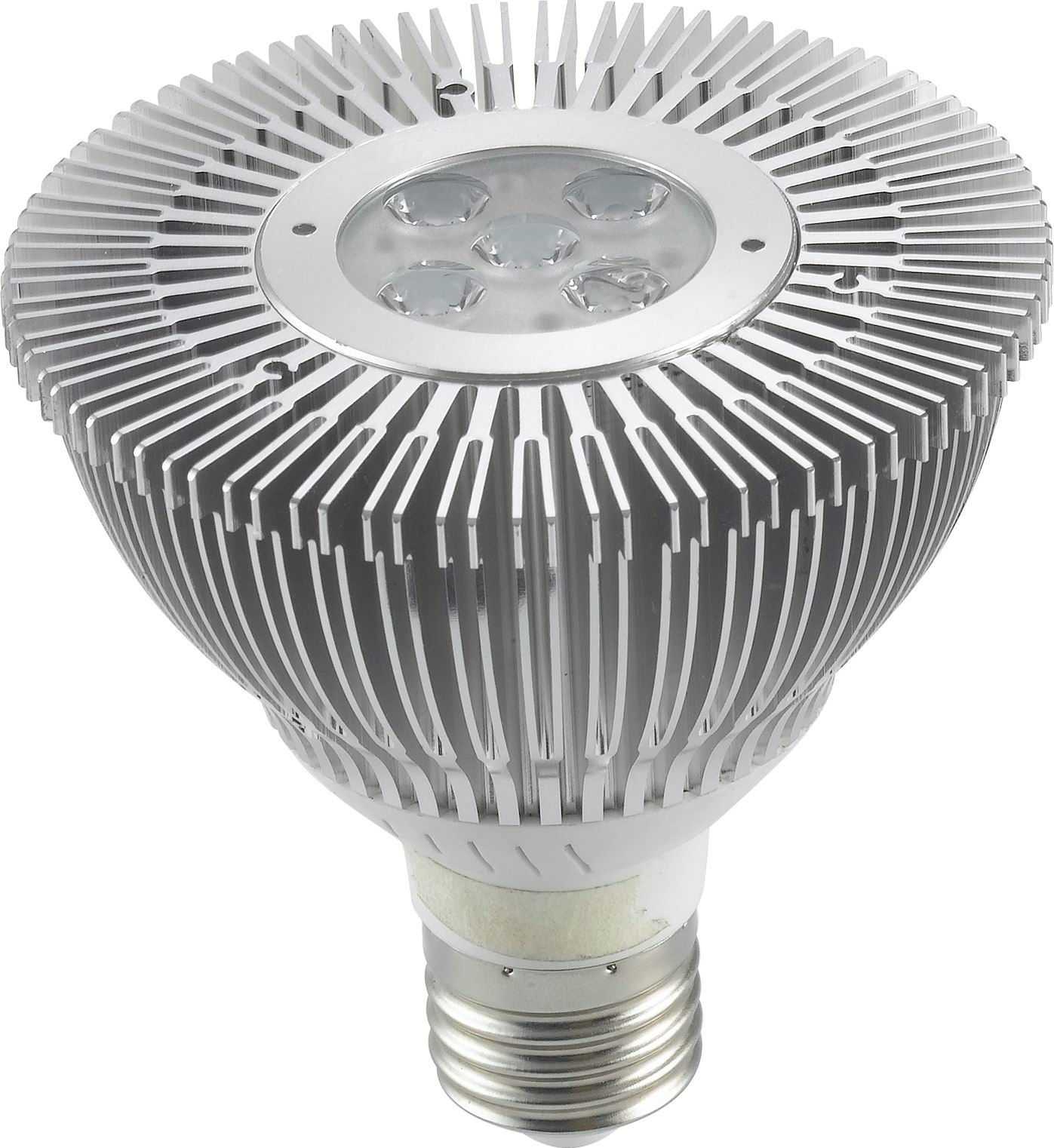

ITEM NUMBER: BL-PAR30-5XPE
LED CHIP Q'TY: 5PCS LED
BASE TYPE: E27/E26
LED TYPE: CREE XPE
APPLICABLE DIMMERS: TRIAC DIMMER FOR LUTRON, LEVITON, LEGRAND, ORSAM, CE etc.
INPUT VOLTAGE: 85~145V AC and 190~265V AC
DIMMING RANGE: 10%~100%
INPUT POWER: 9.3W
OUTPUT POWER: 7.4W
SIZE: Φ 95 x 100mm
REFLECTOR EFFICIENCY: 90%
OUTPUT CURRENT: 350mA
LUMENS: CREE XPE: WW: 430lm, CW: 610lm
COLOR RANGE: 2, 700~6, 500K
BEAM ANGLE: 15, 25, 45 degrees
LIFE SPAN: >50, 000 HOURS
BODY TEMPERATURE: <65° C
LED WORKING TEMPERATUREL: <72° C
CRI: Ra> 80
NET WEIGHT: 260g
HOUSING MATERIAL: ALUMINIUM
NO UV OR IR RADIATION
CERTIFICATION: CE, RoHS, C-Tick,
Package:
Carton dimension 102x102x106cm, Pack size: 36PCS
|
Item Number |
WD-PAR30-5XPE-DIM |
|
Voltage |
85~145V AC 190~265V AC |
|
Lumens |
WW: 430lm CW: 610lm |
|
Dimmability |
YES |
|
Dimension |
diameter: 95× 100mm |
|
Weight |
300g |
|
LED Type/ QTY |
CREE XPE/ 5pcs |
|
Power Consumption |
9.3W |
