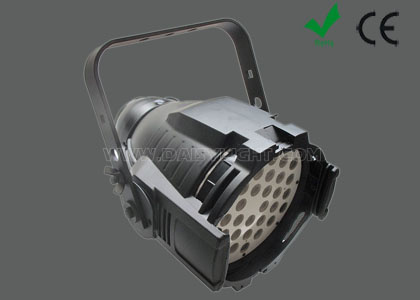

LED PAR light(36PCS, 1W)
Product description:
Functions:
*RGBW color mixing
*custom programs
*strobe
*dimmer
*color chasing
*ID address
*auto programs
*speed adjustment
Applications:
Stage/theater/studio/expo^
Spot/effect
Operations:
DMX 512
Sound activated
Display panel
Automatic/custom
Stand-alone/master slave
Size:
L61 x w62 x h48cm(4PCS/CTN)
Net weight: 25kg
Light source:
High power 1W LED, 36PCS of LEDs
Average life: Over 50000 hours
Lens: 15degree, 25degree, 45degree, optional
15degree=narrow beam, 25-degree=middle beam, 45degree=wide beam
Features:
1, each LED can make over 16.7 million colors
2, whith more charming colors
Effect:
Color changing, strobe, dim 0%-100%, speed adjustment, etc.
Colors: RGBW
Control:
DMX512/auto run/master slavs/sound
DMX channels: 6
Address setup by 3-button LED display
Constrution:
Material: Aluminum body
Body color: Black, white, optional(white is for oder over 50 PCS)
Protection rating: IP20
Accessories:
DMX cable: 3-pin XLR cable, 1PCS(included in packaga)
Mounting stand: (fixed on light)
Electric:
Power consumpion: 140W
Volt: 100V-120V, 200V-240V, optional
Approvals: CE, RoHS, UL, CCC
Size without bracket(L x W x H):
340 x310x220mm
Weight: 5kgs
DMX values and functions:
Channel function value color function
CH 1 red dimmer 0-255 red 0%-100%
CH 2 green dimmer 0-255 green 0%-100%
CH 3 blue dimmer 0-255 blue 0%-10
CH 4 white dimmer 0-255 white 0%-100%
CH 5 dimmer 0-14 color dimmer
Strobe 15-255 strobe, clockwise, gradual
Change speed control
CH 6 RGB dimmer 0-31 no function
32-63 dimmer: From dark to bright
64-95 dimmer: From bright to dark
96-127 dimmer: Dark-bright-dark
128-159 gradual change
160-191 3kinds color jump changing
192-223 7kinds color jump changing
224-255 sound control
Remarks: When the CH6 on 32-127, it should use CH1, CH2, CH3 together.
