Model No: TSP-L03A14
LED Driver Input: AC100-240V/50Hz
Power: 14W
LED Lamp Input: DC25-35V
Color Temperature: 4000-4500K(warm white)
6000-6500K(natural white)
8000-8500K(cool white)
Luminous Flux: 850Lm
Life Span: 5000Hours
Operating Temperature: -10ºC~+50ºC

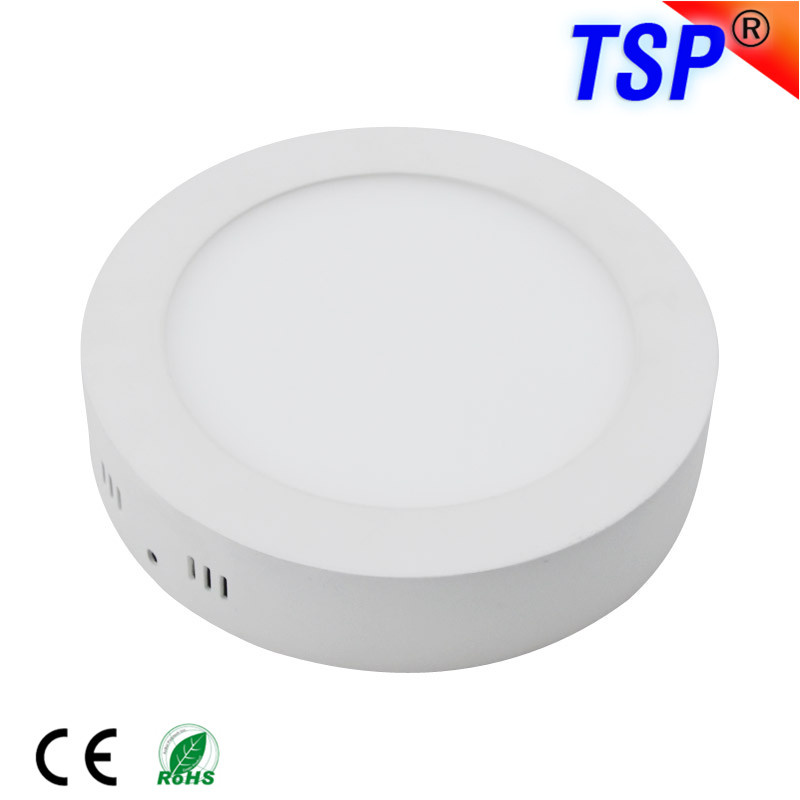

Panel Lights| Product Name | Picture | Size D×H (mm) | Voltage/ Frequency | Lumen (LM) | CCT | LED Type | Power(W) | PF | CRI(Ra) | Material | Lifetime (Hours) |
| TSP-Panels Light (conceal mounted) |
| 122x35mm | 85-265V | 300LM | Warm /Cool white | 2835 | 6w | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (conceal mounted) |
| 122x122x35mm | 85-265V | 300LM | Warm /Cool white | 2835 | 6w | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (surface mounted) |
| 120x38mm | 85-265V | 300LM | Warm /Cool white | 2835 | 6w | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (conceal mounted) |
| 174x35mm | 85-265V | 700LM | Warm /Cool white | 2835 | 12w | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (conceal mounted) |
| 174x174x35mm | 85-265V | 700LM | Warm /Cool white | 2835 | 12w | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (surface mounted) |
| 170x38mm | 85-265V | 700LM | Warm /Cool white | 2835 | 12w | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (conceal mounted) |
| 225x35mm | 85-265V | 1000LM | Warm /Cool white | 2835 | 18W | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (surface mounted) |
| 220x38mm | 85-265V | 1000LM | Warm /Cool white | 2835 | 18W | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (conceal mounted) |
| 225x225x30mm | 85-265V | 1000LM | Warm /Cool white | 2835 | 18W | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (conceal mounted) |
| 300x35mm | 85-265V | 1300LM | Warm /Cool white | 2835 | 24W | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (surface mounted) |
| 300x38mm | 85-265V | 1300LM | Warm /Cool white | 2835 | 24W | 0.9 | 80 | Al+Plastic | 25000H |
| TSP-Panels Light (conceal mounted) |
| 300x300x35mm | 85-265V | 1300LM | Warm /Cool white | 2835 | 24W | 0.9 | 80 | Al+Plastic | 25000H |

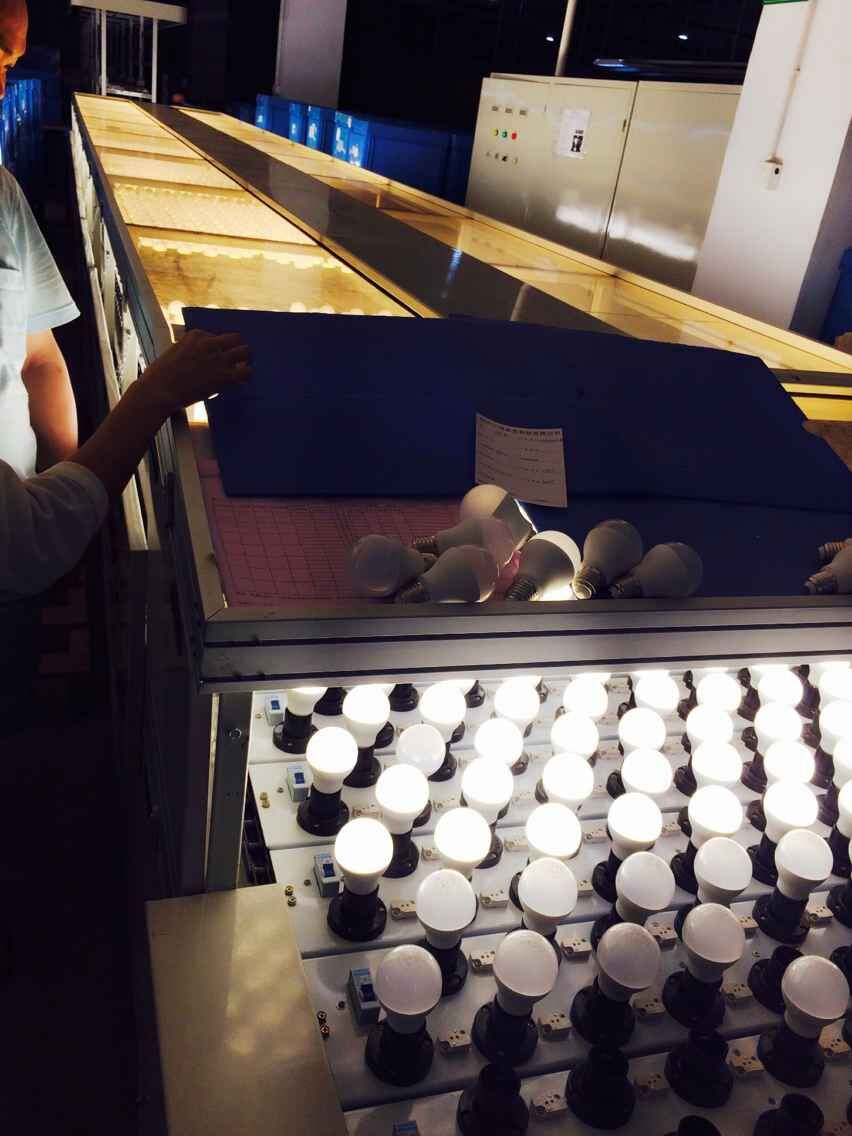

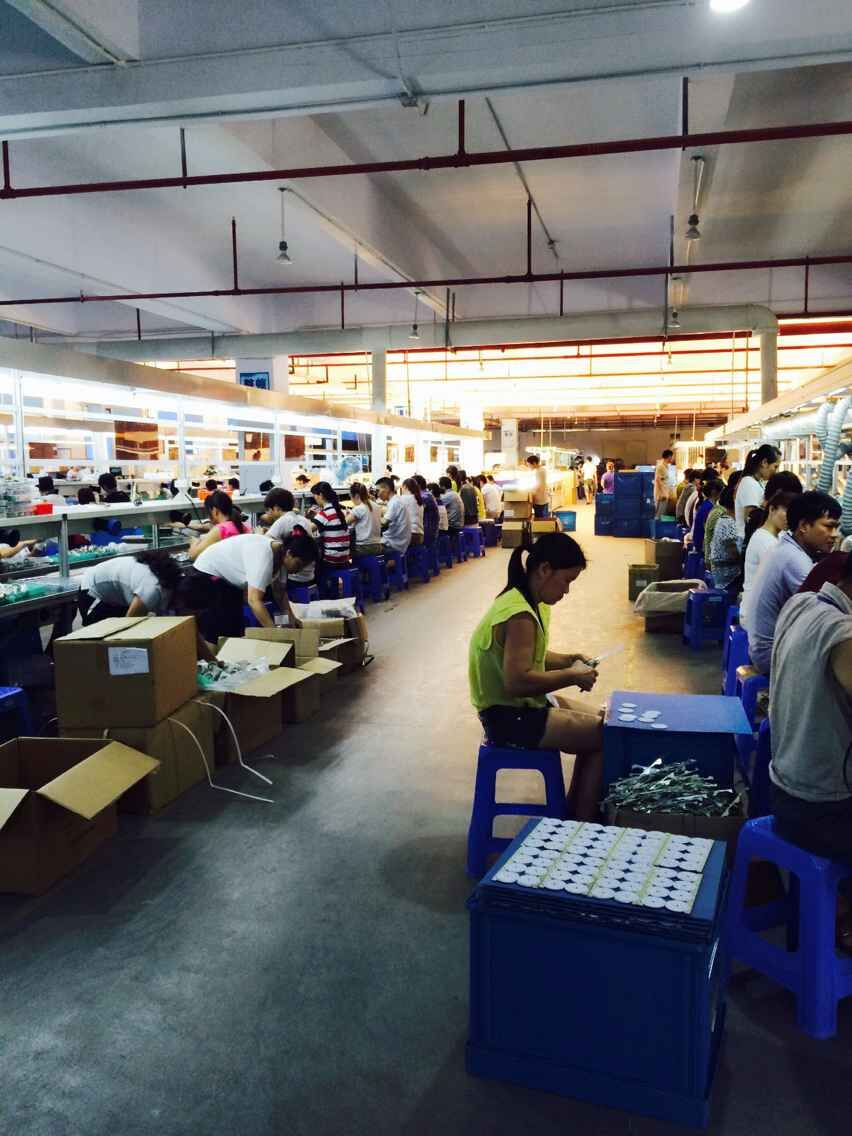

Shenzhen Sanpu Bense Technology Co., Ltd. Locates in 9/10th Floor, Building B, Anlibang Science and Technology Park, 1st Industrial Zone, Xitian Village, Gongming Street, Shenzhen, Guangdong, China. We are a high-tech comprehensive enterprise, specialized in R&D, sales and after-sales service for electronic ballast, LED and energy saving lamp and so on. We own over 20-year experienced engineers who try to get innovated at all times, also we have automatic production equipment and excellent staff. We have over 1500 square meter production area and the monthly capacity is over 300, 000 pieces LED LIGHTS.
Energy-efficient lighting is a very big responsibility and project in current whole society. Our goal is "Excellent quality, First-class reputation, Timely deliver, Good after-sales service"., we sticks to quality makes success, we not only "make and sales our product" "but also built a long term friendly business relationship with our customers and suppliers to achieve Win-win. We believe you can find what you interested in our company.
Because of YOU we can develop better in the future.
