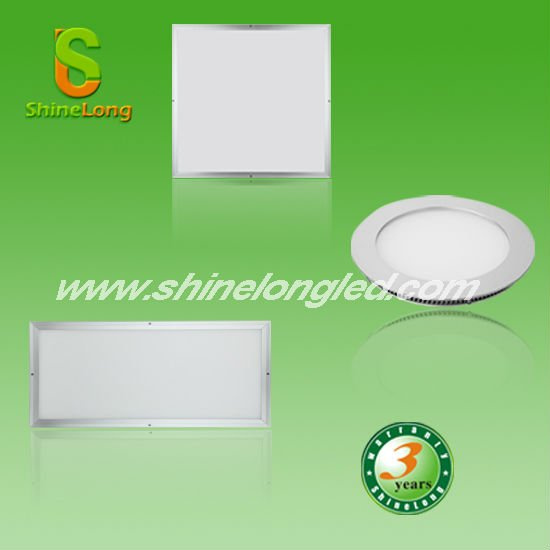

13W SMD3014 panel light
1. High light efficacy and low light decay
2. 3years warranty
3. 3days for samples
4. Long lifespan
High light efficacy 13W SMD3014 LED Panel Light
Specification:
210x155x12mm LED panel light
LED quantity: 140PCS
LED type: SMD (3014)
Color: White/warm white/commercial white
Luminous flux: 900lm ± 10%
Color temperature: 6, 000 to 7, 000K (W1) or 3, 000 to 4, 000K (W2), 4000-5000K(w3)
Rendering index: 75
Life expectancy: 30, 000 to 50, 000 hours
Feature:
1. Low power consumption, High power efficiency
2. No UV or IR radiation
3. Products are compact of aluminum material.
4. Superior thermal performance, high applicability
5. Enviromental friendly: NO UV infrared and other radiation, shock vibration resistant
6. Imported light source ensure high brightness,
7. External constant- current driver, stable performance.
8. Color: White, warm white
Installation Instruction:
1. Turn off the power switch.
2. Connect the input end of the power electrivity(85V-265V), and make sure exposed brass wires.
3. Connect the DC plug of the power output end with the DC socket of light inout end, and make sure the connect is fast.
4. Fix the light and the power differently in an appropriate position.
5. Turn on the power switch.
Application:
The LED panel light is ideal replacement for the traditional downlights, it has wide range of application such as:
1. Jewelry counter lighting
2. Commercial lighting
3. Restaurant, hotel
4. Artwork lighting
5. Display case
6. Amusement park
7. Home and office lighting.
