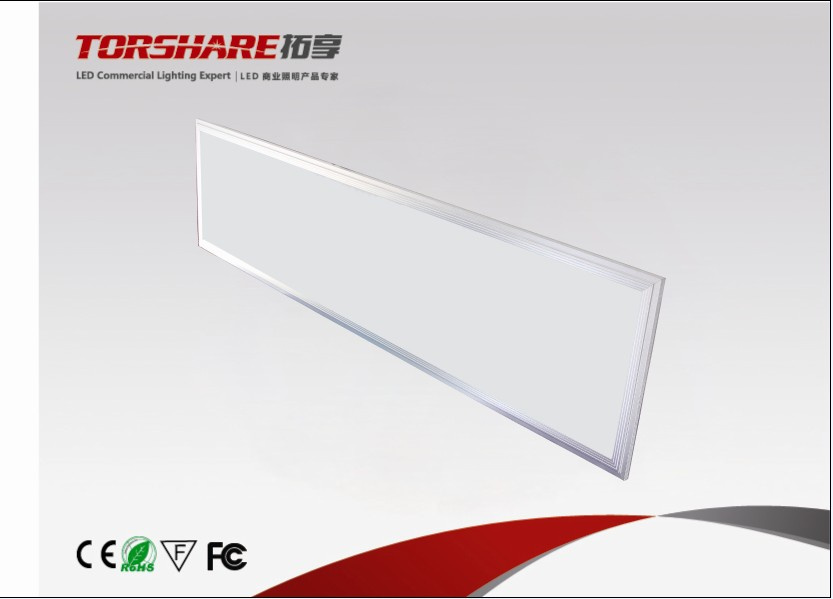

LED Panel Features
Super slim and efficient design
Unique extruded aluminum with very slim design (12mm thickness), lighting comes all around into light guide panel, more efficient heat dissipation, lowers the light decline efficiently. Ensure the lumen output maintenance factor above 80%, after using 35, 000 hours.
High light efficient and energy saving
Bigger chip super Brightness SMD LED used as light source, the whole lamp with high intensity, and energy saved up to 50%.
Long Life-span
with top-quality SMD LED, and good heat dissipation, make sure the life-span up to 5 years.
Top quality light effect
The whole panel with top quality light effect, instant start, no UV & heat radiation, no electric wave, no flickering, no humming, it's an ideal green and environmental lighting.
Special heat
New inner high efficient (95%) heat protection system, the constant current driver can work under unstable voltage.
Environmental friend
Safe and durable, can be cyclic utilization, no such hazard for lead or Mercury enter the environment.
High safety coefficient
The whole lamp is with high safety coefficient. with wide working voltage, low power consumption, and low heat dissipation, no potential safety hazard.
Double energy saving
We offer dimmable panel light for choice, you can dimmer you lamp with different requirement to achieve double energy saving. Our Panel goes smoothly while low brightness dimming without Blink.
Part No
Item |
PL007 |
PL008 |
PL006 |
PL004 |
|
|
LED Type |
High Brightness 3528 SMD |
|
|
Color |
Warm White White |
|
|
|
|
Color temperature |
3000K-3500K 6000k-6500k |
|
|
|
|
Lumen |
|
820 |
2930 |
3210 |
2550 |
|
|
(lm) |
|
780 |
2780 |
3100 |
2400 |
|
|
Power Rating(W) |
10 |
40 |
40 |
40 |
|
|
Input Voltage(V) |
AC90-265V |
AC90-265V |
AC90-265V |
AC90-265V |
|
|
Forward oltage(V) |
20-12 |
20-30 |
20-30 |
20-30 |
|
|
Forward rent(mA) |
700 |
1500 |
1500 |
1500 |
|
|
CRI |
> 75 |
> 75 |
> 75 |
> 75 |
|
|
Viewing Angle |
150° |
150° |
150° |
150° |
|
|
Certifications |
CE & RoHS |
CE & RoHS |
CE & RoHS |
CE & RoHS |
|
Notes: Tolerance of measurement of luminous intensity± 15%.
Comparison between LED and grille lamp
Economic efficiency comparison between LED Panel Light with T8 grille lamp
(Estimating with 1000pcs)
Comparison
Item |
Parameters comparison |
|
40W LED Panel Light |
80W T8 grille lamp |
|
Life-Span |
Above 50, 000 hours |
About 4, 000 hours |
Power consumption
(KWH/day, 12H/day) |
480 KWH |
960KWH |
Electric charge /year
(CNY1/KWH) |
175, 200 CNY |
350, 400 CNY |
Maintenance charge
(Per year) |
NO |
3000 CNY |
Envionmenttal Protection
Standard |
No chemical pollution |
With mercury, lead, manganese etc. |
|
Cost Saving every year (CNY) |
172200 CNY |
--- |
|
Remark |
The maintenance charge above without the Salary for maintainer |
Founded in 2006, Torshare Ltd. Is one of the biggest manufacturers of LED-related products in China, which is specialized in researching, developing, engineering and marketing of LED products. Occupied by 12, 000 square meters, 200-250 staff, due to good quality and perfect after sales service, Torshare Ltd is enjoying high reputation. It is located in the center of Chinese LED, Shenzhen Shiyan Town, where is about 30 minutes drive from Hong Kong, and 15 minutes drive from Shenzhen Airport, we welcome any group or person to visit our factory.
Our products cover a wide range, such as LED Tube Light, LED downlight, LED spotlight, LED panel light, High power series, LED Sign, Strips, Modules, OEM etc. We are specially proud of our OEM business since we have many professional engineers who have worked in the field of LED for over 10 years. Highly trained workers make sure our products are in 100% good quality. Professional sales follow up with our customers at any time. According to our advantages, we have witnessed our rapid development. Right now, our annual export sales topped $13.5 million in 2010, a 60% increase from the previous year.
We have one set of strict Quality Inspection System. Our 15 QC staff monitor the entire production process to ensure our product quality meets your requirements. We use advanced temperature testers, luminance testers and photoelectric instruments to conduct strict testing such as voltage withstand, shock proof and salt spray tests. All our operations are ISO 9001: 2008-certified. Our qualification rate is above 99.5%. All our products comply with CE standard and the RoHS Directive.
Under the common effort of all staff; We fully believe we will do better and better in the following days.
