BANQ Professional manufacturer of led panel in Shenzhen China.
We have suspension led panel, embedded led panel, ceiling mounted led panel.
Led panel Specification:

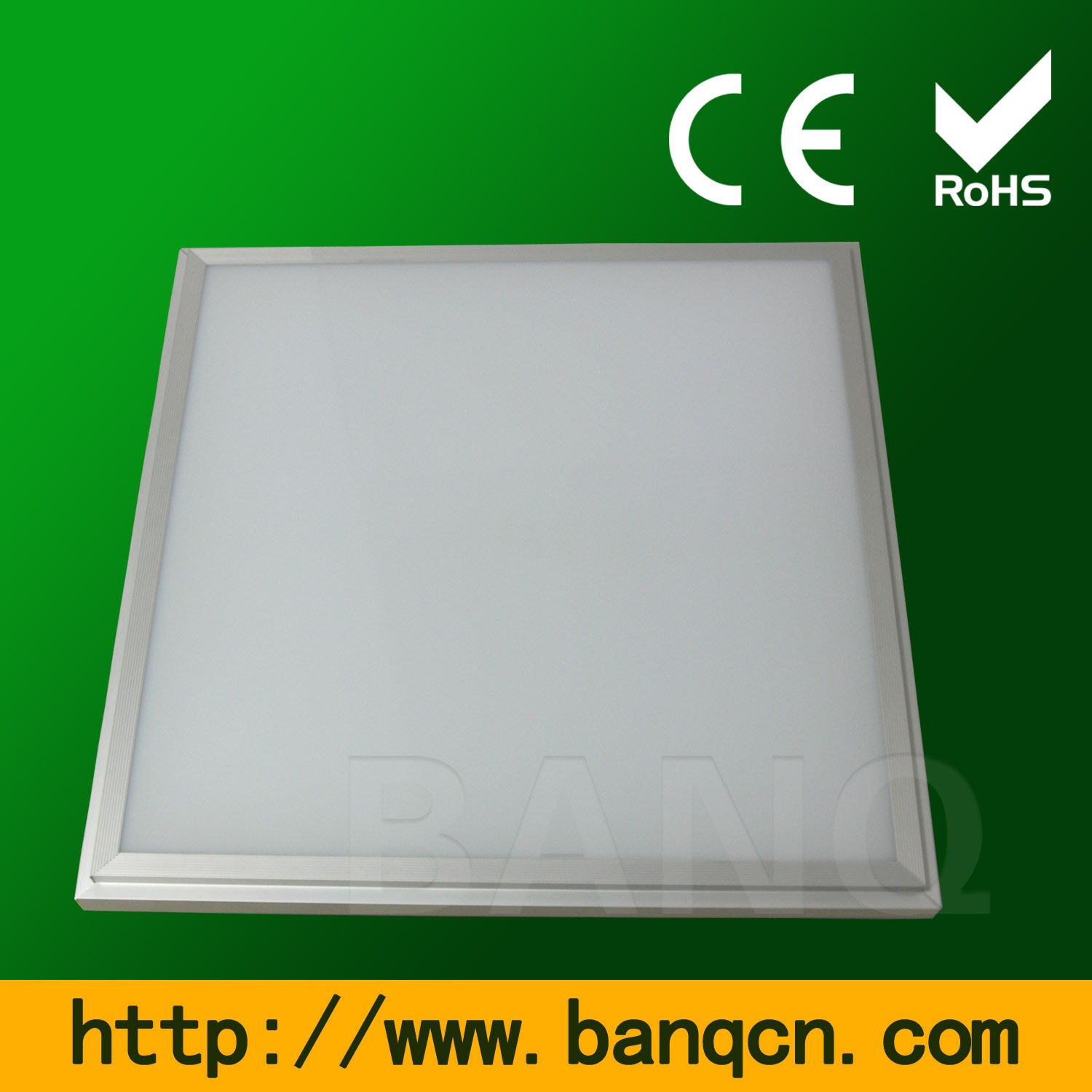

LED panel light ceiling-624PCS 3014 SMD LED (600x600mm)
Size: 600*600mm
LED Qty: 624PCS 3014 SMD LEDs
Power: 45W
Lumen: 4000Lm
Voltage: AC85-265V
Rendering index: 80
Angle: 120 degree
LED Color: Cool White (5500-6000K) and other colors
Led panel remark:
Other size of 300x300mm, 600x1200mm, 300x600mm, 620x620mm led panel are avaliable.
Lumen for different size: 1500lm(300x300mm), 2100lm(300x600mm), 4000lm(600x600mm), 4800lm(600x1200lm).
LED panel features:
1) Dimensions: 600x600mm
2) Luminous flux: 4000lm
3) Color Temperature: 5500-6000K
4) With infrared remote dimmer for dimming 0~100%
5) LED panel can be ceiling or wall surface-mounted
6) Warm White version led panel is available too
7) Ultra-slim and low-profile
8) led panel an be recessed mounted, surface mounted or work as a pendant.
9) Led panel consumes 70%~80% less energy than halogen spotlights
10) Lifespan 50, 000 hours (5 years), which is 20 x longer life than conventional bulbs
11) Extremely low maintenance costs
12) No flickering, No RF interference, No UV radiation
13) CE & RoHS compliant
14) Instant soft start
15) Proprietary design for excellent thermal management with aluminum and acrylic housing
16) led panel Dimmable by RF remote controller
Led panel Installation Instruction:
1) Working Voltage: AC110-240V
2) wiring way: L -L, N -N
3) Usage of remote controller: A button - power swift; B button - light up; C button- light down.
LED panel notice:
1) No pressing or striking
2) Transport and handle carefully
3) Pay attention to the voltage before using
4) Ambient temperature: 0° C-+50° C;
5) Indoor use only
6) No twisting when power is on
LED panel application:
Commercial Lighting, Office Lighting, Warehouse Lighting, Supermarket Lighting
Applied to hotel, meeting room, factory, office, home, school, hospital, ect.
Remark:
1. All the shape, size, color, brightness is available here and OEM and ODM is welcome;
2. Goolite can design according to clients' requirements.
|
Item No |
BQ-PBC-6060/3014 |
|
Input Voltage |
AC100-240V, 50/60Hz |
|
Size |
600x600x12mm |
|
Power |
45W |
|
Light Source |
High power LED(624pcs) |
|
Luminous Flux |
>4000lm |
|
Color |
Single color & RGB |
|
Beam angle |
120 deg |
|
Brightness |
200lux(2.5m) |
|
Working Temperature |
-30 to + 60 |
|
Power factor |
>0.95 |
|
Lifespan |
>50,000hours |
|
Certificate |
CCC FCC CE ROHS |
|
Material |
High transmission acrylic cover |
|
Dimmable |
Yes |
|
Packing info |
Size:675x675x65mm, GW:5.3Kg |
Shenzhen Banq Technology Co., Ltd., is a professional LED manufacturer with strong capability in R&D, Production, Marketing and customer service. we have a variety of products, which can be classified in two catagories:
First is LED general illumination lights which including LED bulb, LED tube, LED strip/Ribbon, LED spotlight, LED down light, LED SMD spotlight, Auto light, wall washer, as well as LED module. Second is indicating LED for different applications which including high/low power LED series. super flux LED (Piranha) series, SMD LED series, and super-bright through-hole LED series. Our products are widely used in General Illumination Industry, Auto Industry, Electronic Display Industry and signal Electronic iIndustry etc.
Established in 2002, with a total area of 16000 square meters, BANQ has about 1000 well-trained employees. With our dedicated staffs and rich experience in LED field, we can quickly respond to customer needs, providing customized products and services to help customers succeed. At present, we export 90% of our prodcuts Europe, North America, and some other countries.
"Quality First, Customer Paramount, Service Uppermost! " is our principles. In order to make the life of modern people more wonderful, BANQ is willing to form a close ally with customers through our superior LED products, excellent and value-added service.
