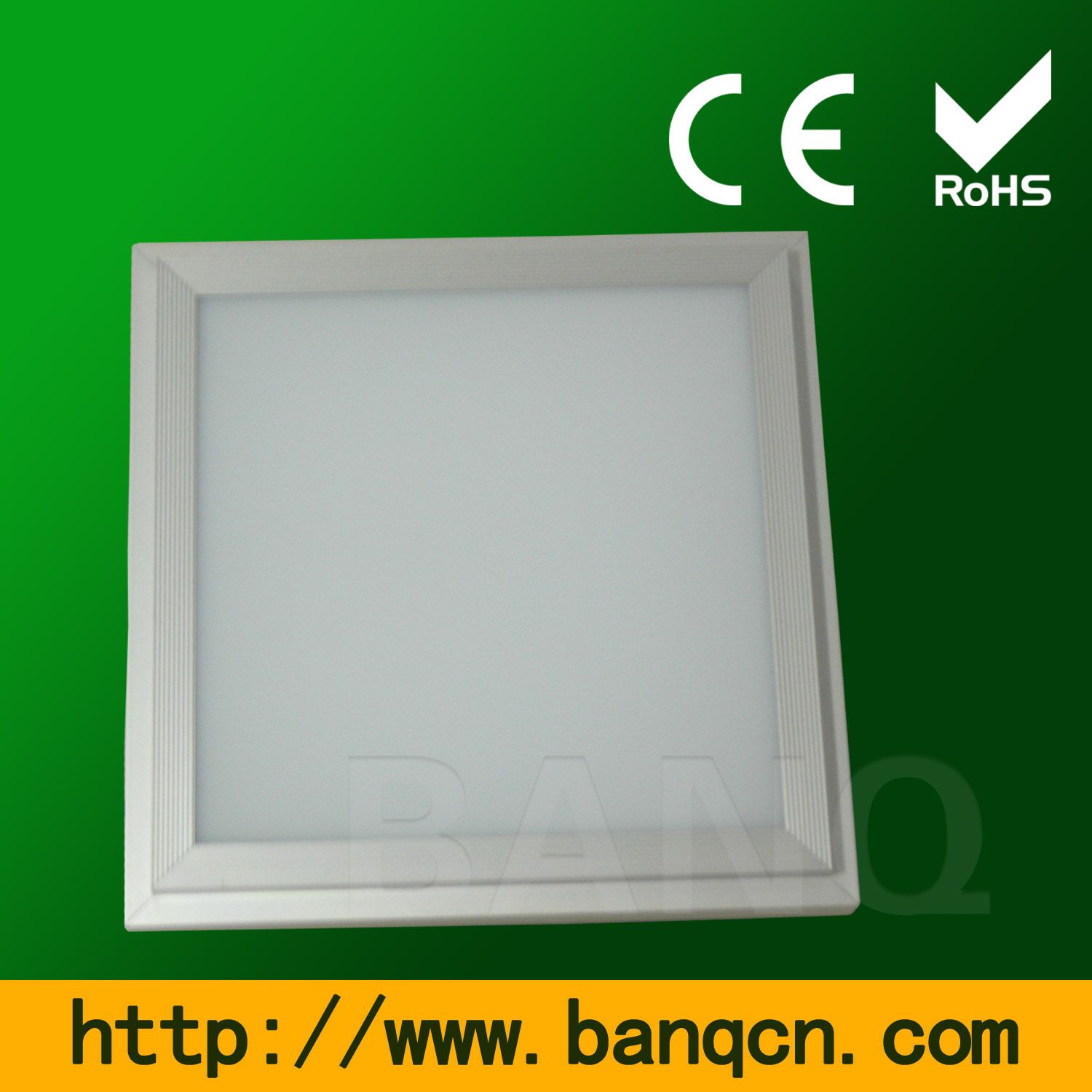

LED panel light Specifications:
We also have suspension LED panel light, embeded LED panel light, ceiling mounted LED panel light.
LED panel light specification:
1. LED panel light size: 30*30cm
2. LED qty: 308PCS high brightness SMD 3014
3. Voltage: AC85-265V
4. Power: 20W
5. Color: White and warm white
6. CCT: 5500-6000K & 2800-3300K
7. Lumens: 1600lm
8. Beam angle: 120 degree
9. Lifespan: 50, 000H
LED panel light features:
1. High brightness SMD 3014 LED
2.30*30, 30*60, 60*60, 30*120, 60*120cm, 620x620mm LED panel light are available
3. Long lifespan: 50, 000H
4. Low light decrease
5. Energy saving, environment friendly
6. No RF interference, No UV radiation
7. Color of frame can be customized.
8. LED panel light installation can be suspension type, recessed type, ceiling mounted type.
9.20W LED panel light can replace traditional 60W light.
10. The LED panel light designed by safe and current constant isolated circuit.
11. Instant start, no flickering, immediately transit response (0.01 second no delay).
12. Elegant design by smooth aluminum frame and PC cover.
13. Energy saving(60% than traditional fluorescent lamp) and environmental friendly.
14. LED panel light suspending by links for surface mounted is available.
LED panel light applications:
1. Commercial lighting
2. Office lighting
3. Warehouse lighting
4. Supermarket lighitng
5. Residential lighting
Why choose BANQ LED panel light
1. Professional LED manufacturer both on LED component and application product.
2. With total area of 10, 000 square meters, 500 well-trained employees, capacity of 50000PCS LED panel light in a month.
3. On time delivery and prompt response to buyer'inquiry.
4. Professional support on technology and distribute direction
5. CE, FCC, RoHS, C-TICK approval.
|
Item No |
BQ-PBC-3030/3014 |
|
Input Voltage |
AC100-240V, 50/60Hz |
|
Size |
300x300x12mm |
|
Power |
20W |
|
Light Source |
High power LED(308pcs) |
|
Luminous Flux |
>1800lm |
|
Color |
Single color & RGB |
|
Beam angle |
120 deg |
|
Brightness |
200lux(2.5m) |
|
Working Temperature |
-30 to + 60 |
|
Power factor |
>0.95 |
|
Lifespan |
>50,000hours |
|
Certificate |
CCC FCC CE ROHS |
|
Material |
High transmission acrylic cover |
|
Dimmable |
Yes |
|
Packing info |
Size:375x375x65mm, GW:1.5Kg |
Shenzhen Banq Technology Co., Ltd., is a professional LED manufacturer with strong capability in R&D, Production, Marketing and customer service. we have a variety of products, which can be classified in two catagories:
First is LED general illumination lights which including LED bulb, LED tube, LED strip/Ribbon, LED spotlight, LED down light, LED SMD spotlight, Auto light, wall washer, as well as LED module. Second is indicating LED for different applications which including high/low power LED series. super flux LED (Piranha) series, SMD LED series, and super-bright through-hole LED series. Our products are widely used in General Illumination Industry, Auto Industry, Electronic Display Industry and signal Electronic iIndustry etc.
Established in 2002, with a total area of 16000 square meters, BANQ has about 1000 well-trained employees. With our dedicated staffs and rich experience in LED field, we can quickly respond to customer needs, providing customized products and services to help customers succeed. At present, we export 90% of our prodcuts Europe, North America, and some other countries.
"Quality First, Customer Paramount, Service Uppermost! " is our principles. In order to make the life of modern people more wonderful, BANQ is willing to form a close ally with customers through our superior LED products, excellent and value-added service.
