Single/dual Color LED Display Screens
Feature
This series with DIP single or double color LED in each panel are used as message board.
For single color LED board, it can display all kinds of text graphics. Besides text, dual color which shows the colors of red, green, and yellow also can display pictures and simple cartoons.

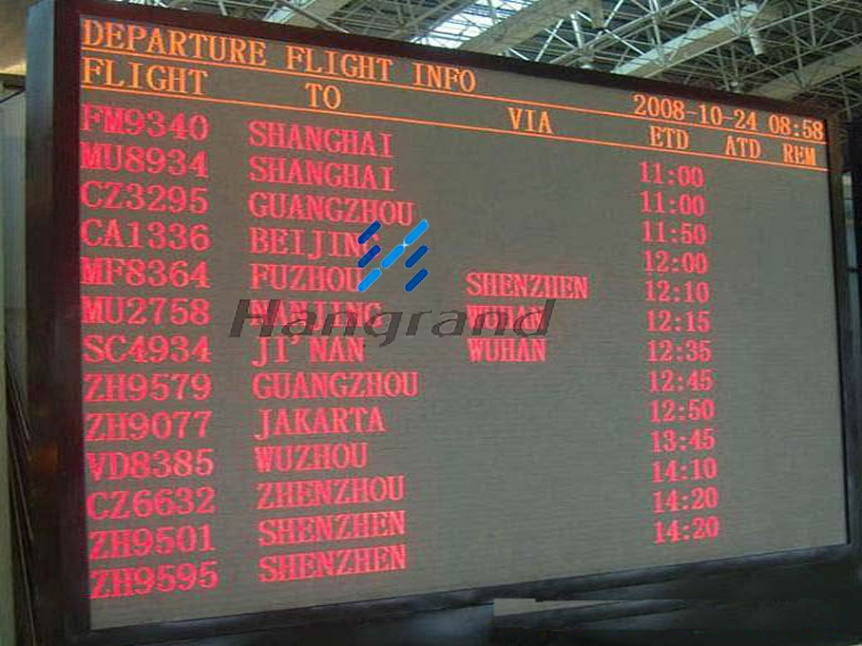

It's widely used in banks, airports, bus stations, etc.
|
ITEM |
P10 |
P10 |
P16 |
|
Pixel Pitch |
10mm |
10mm |
16mm |
|
Pixel Density |
10, 000dots/m2 |
10, 000dots/m2 |
3, 906dots/m2 |
|
Module Size |
320mm x 160mm |
320mm x 160mm |
256mm x 128mm |
|
Module Resolution |
32x 16 |
32 x 16 |
16 x 8 |
|
Display Weight/Thickness |
< 65kg/165mm |
< 65kg/165mm |
< 65kg/165mm |
|
Pixel Configuration |
1R |
1R1G |
2R1G |
|
Viewing Angle(H/V) |
110° /50° |
110° /50° |
110° /50° |
|
Driving Mode |
1/4 scanning constant voltage |
1/4 scanning constant current |
|
Power Consumption(A/M) |
< 300/400(W/m2) |
< 400/600(W/m2) |
< 400/600(W/m2) |
|
Working Voltage |
AC220V/110V± 10% |
|
MTBF |
More than 10, 000 hours |
|
Life Span |
100, 000 hours |
|
Working Temperature |
-20° C---+50° |
|
IP Grade |
Front/Back IP65/IP43 |
|
Control Method |
P to P Synchronization or asynchronism |
|
Transmission Distance |
100m(network line)500m(multi-mode fiber)10KM(single-mode fiber) |
Shenzhen Hangrand Technology Co., Ltd. is a Hi-Tech enterprise specializing in LED displays, LED & LED lighting products and LED decoration products. We are mainly engaged in the production of outdoor&indoor LED displays, LED bulbs, LED spotlights, ceiling lamps, LED tubes etc.
Our products have gained national patent (Patent NO: 0226570.8). We also have passed CCC, CE, RoHS, FCC and UL Certifications. Our products have been sold to Europe, American, Middle East, Africa and Australia.
Our company is located in the Hengguan Industrial Park in Pinghu, Shenzhen. Our factory covers more than 10000sqm and has 600 employees including 50 senior technicians. Our highly skilled staff members and excellent management persons have implemented a strict quality supervision and inspection system, which ensures that our products can achieve international standards. Our R&D Dept. Has strong capability of developing new items in accordance with customers' requirements. OEM and ODM orders are welcome. We strongly believe in the tenet of "innovation forever, which can lead to a bright future".
We are looking forward to building up good business relationships with all customers based on mutual benefits. You are welcome to visit us and contact us for more details.
