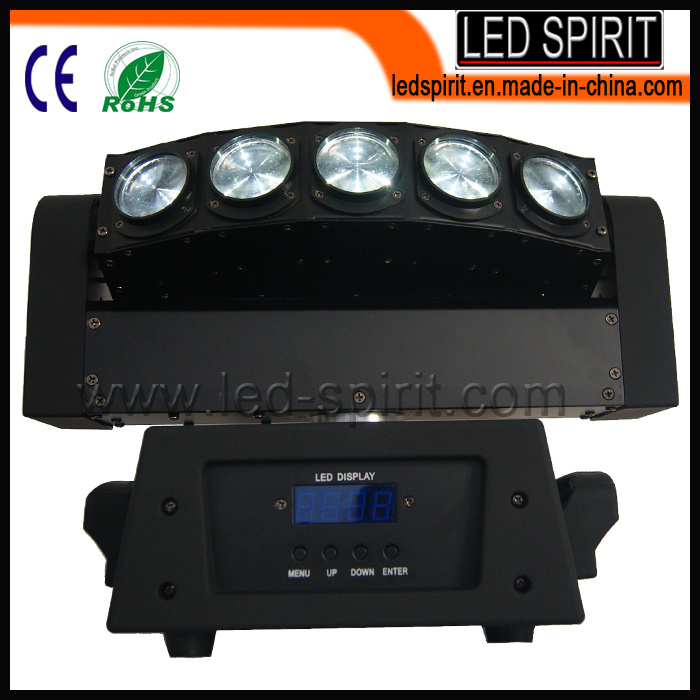

LED Moving Head Professional Stage Effect Beam Disco Light( LED-31A )
Product description:
5 head beam moving effect light, light feeling super strong, as if into a dream of heaven. Beam feeling like a fan can swing, favored by customers. Also adopts high brightness 10 w Cree led, the service life of 20000 hours, with the stability of the power supply, smooth operation, no noise, suitable for use in bars, KTV, clubs, small performances and other entertainment places.
Technical parameter
Model No : LED-31A
Input voltage : AC 110-240V 50HZ/60HZ
Power Consumption : 100W
LED lighting source : 5pcs X10W white led
Control mode : DMX 512 , Master -Slave ,Sound Active , Auto Run .
Channel : 11 CH /15 CH optional channel
Housing : High -temperature plastic ,molded alloy ( Aluminum )
Waterproof grade : IP20
Beam angle : Linear beam
Dimming : 0-100% can adjustable
Rotate angle : Pan : 540 degree (16 bit ) Tilt : 270 degree (16 bit )
Work Environment : Indoor
Warranty : One year
Delivery time :
Sample order , 3-5 working days formal order , 10-15 working days after received the deposit .
Payment term : T/T , 30% deposit , 70% balance before delivery .
Shipping Way :
- All the items will test before dispacth to ensure the item arrived in a good condition.
-We will ship by UPS, USPS, Fedex within 2-3 working days after received the payment. (about 2-5 days arrived to your door)
- Also ship by sea, air.
Application Field:
Professional stage, Theater, Club, , KTV, Bar, profession stage, large-scale performances, theater, studio and places of higher Disco etc.
11channel
Number
Function
Description
CH 1
Level motor operation
(0-255)upward adjust forward , downward adjustment inversion
CH 2
Level motor fine-tuning
(0-255)Level motor 16BIT fine-tuning
CH3
Vertical motor operation
(0-255)upward adjust forward , downward adjustment inversion
CH4
Vertical motor fine-tuning
(0-255) Vertical motor 16BIT fine-tuning
CH5
Motor operation speed
(0-255)upward adjust speed slow ,0 is the fastest speed .
CH6
Total dimming
(0-255) linear dimming,from dark to bright
CH7
Strobe
(0-255)From slow to fast
CH8
Dimming
White dimming ,(0-255)linear dimming,from dark to bright
CH9
Built-in program
The first 8 channels operation (0-60);(250-255)sound actived , DMX more than 60, each additional 15 corresponding to a built-in program.
CH10
Speed of built-in program
0-255 upward adjust speed slow ,0 is the fastest speed
CH11
Reset
(0-244)No function ;(245-255)Reset
15channel
Number
Function
Description
CH 1
Level motor operation
(0-255)upward adjust forward , downward adjustment inversion
CH2
Level motor fine-tuning
(0-255) Level motor 16BIT fine-tuning
CH3
Vertical motor operation
(0-255)upward adjust forward , downward adjustment inversion
CH4
Vertical motor fine-tuning
(0-255)Vertical motor 16BIT fine-tuning
CH5
Motor operation speed
(0-255)upward adjust speed slow ,0 is the fastest speed .
CH6
Total diming
(0-255) linear dimming,from dark to bright
CH7
Strobe
(0-255) From slow to fast
CH 8
1st heads White dimming
White diming ,(0-255) linear dimming,from dark to bright
CH9
2nd heads white dimming
White diming ,(0-255) linear dimming,from dark to bright
CH10
3rd heads White dimming
White diming ,(0-255) linear dimming,from dark to bright
CH11
4 th heads Whit e dimming
White diming ,(0-255) linear dimming,from dark to bright
CH12
5 th White dimming
White diming ,(0-255) linear dimming,from dark to bright
CH13
Built-in program
The first 12channels operation (0-60);(250-255)sound actived , DMX more than 60, each additional 15 corresponding to a built-in program.
CH14
Speed of built-in program
0-255upward adjust speed slow ,0 is the fastest speed
CH15
Reset
(0-244)No function ;(245-255)Reset
