Feature:

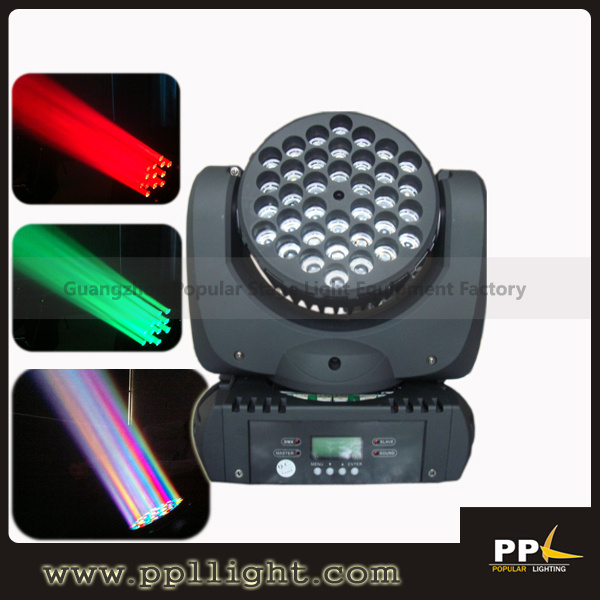

1. 36pcs 3W high brightness CREE LEDs
2. Compact & light weight and offers plenty of pro features
3. 50,000 hours life span for LEDs and low power consumption
4. Intelligent temperature sensor for LEDs(over heat protection)
5. High light output as 960LUX@ 7M at full
Technical Parameter ;
Input Voltage: AC90-260V 50/60Hz
LED Quantities: 36pcs *3W CREE LEDs(R8,G10,B10,W8)
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 15 DMX channels
Power Consumption: 160W
60,000 hours life span for LEDs and low power consumption
Intelligent temperature sensor for LEDs(over heat protection)
High efficiency 8 degree optic lens
Color range with 16.7 millions additive RGBW colors
High light output as 960LUX@ 7M at full
0-100% smooth linear dimmer with flicker free
20t/s strobe effect with variable speed
Pre-programmed random strobe and pulse effects
15CH DMX channels
Built-in programs with macro effects
DMX512, master-slave and sound activated controllable or auto operation
High definition blue TFT LCD display
Quiet, smooth and fast PAN/TILT movement
Low noise and efficient FAN cooling system
540° PAN and 250° TILT movement
Scan position memory, auto reposition after unexpected movement
Compact size with only 4.9KG body and 310mm in height
IEC power connector
45ºC max ambient temperature
IP20 protection rating
3-Pin XLR DMX input/output
Dimensions: 152(L)*265(W)*310(H)mm
Packing Dimensions:260(L)*320(W)*335(H)mm
Net Weight: 5.5kg
Gross Weight: 7.5kg
| Voltage | AC90-240V, 50-60Hz |
| Light Source | CREE LED 36*3W (R8, G10, B10, W8), Extremely small, fast and powerful LED moving beam |
| Lifespan | 60000 for every led, low power consumption |
| Fuse | F5A |
| Power consumption | 160W |
| Beam Angle | 8° |
| Color changing effect | Fabulous color mixing with highly and uniform distribution of brightness and light output |
| Pan/Tilt | X axis 630°, Y axis 240° 16bit precise positioning |
| Dimmer | 0-100% smooth electronic linear adjustment with flicker free |
| Strobe | Electronic strobe with pulse and random effects, 1-20times/s |
| Program | Built in 8 programs with Macro effect |
| Channel | 15CH |
| Control Modes | DMX512, Sound active, Auto and Master-slave |
| IEC power connector, Low noise and efficient FAN cooling system, High definition blue TFT LCD display, 3-Pin XLR DMX input/output |
| Packing Size | 33*24*38cm |
| N.G/W | 5.5/6.5kgs |
| IP rate | IP20 |
| Certification | CE, RoHS |
